CT on PCLinuxOS

Contents[Hide]

We test Lab CodeTyphon 6.30 on PCLinuxOS

PCLinuxOS is a user-friendly Linux distribution with out-of-the-box support for many popular graphics and sound cards, as well as other peripheral devices.
The bootable live DVD provides an easy-to-use graphical installer and the distribution sports a wide range of popular applications for the typical desktop user, including browser plugins and full multimedia playback. The intuitive system configuration tools include Synaptic for package management, Addlocale to add support to many languages and Mylivecd to create a customised live CD.

More for PCLinuxOS here dearth

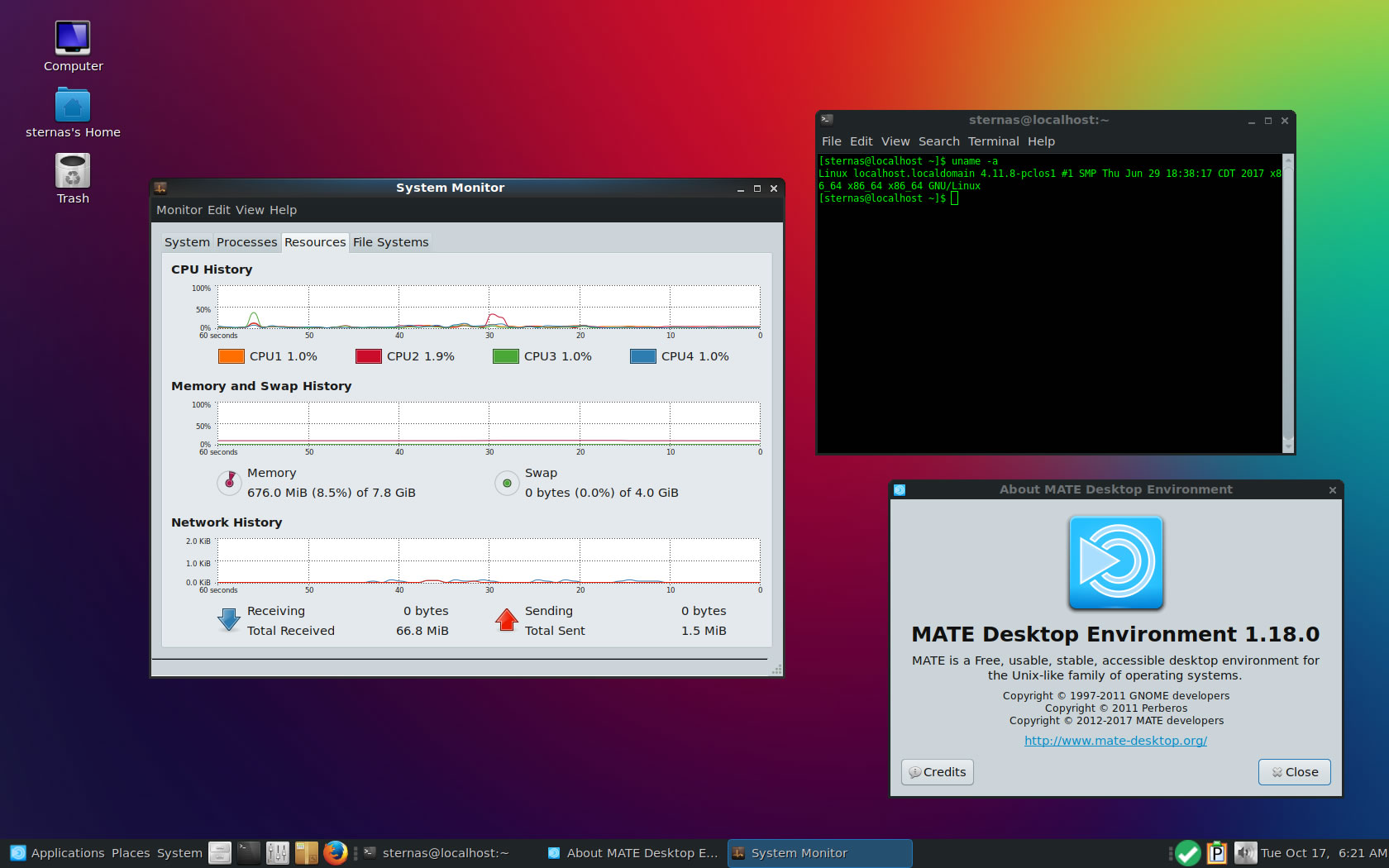

System: Entry level PC with 1 CPU (4-Cores) / 8 Gbyte RAM / 120 Gbytes Hard Disk / 1680x1050 pixels Monitor
OS : PCLinuxOS 64bits with MATE as frontend Desktop







1. OS things and stuff..

After installation PCLinuxOS don't has "sudo" package,
so install sudo

su
apt-get install sudo





2. Preparation-Give "sudo" root privileges

Open a terminal and exec

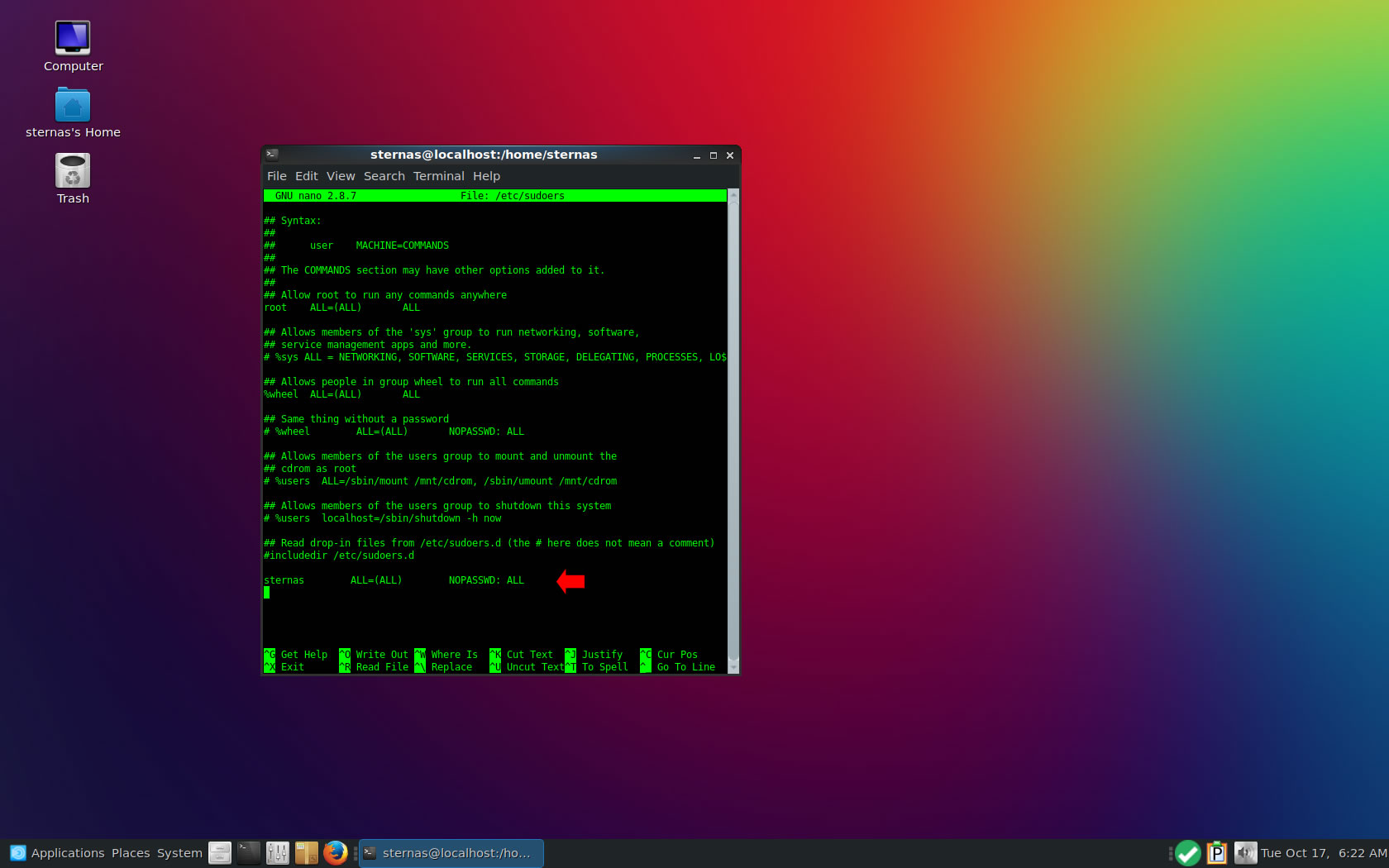

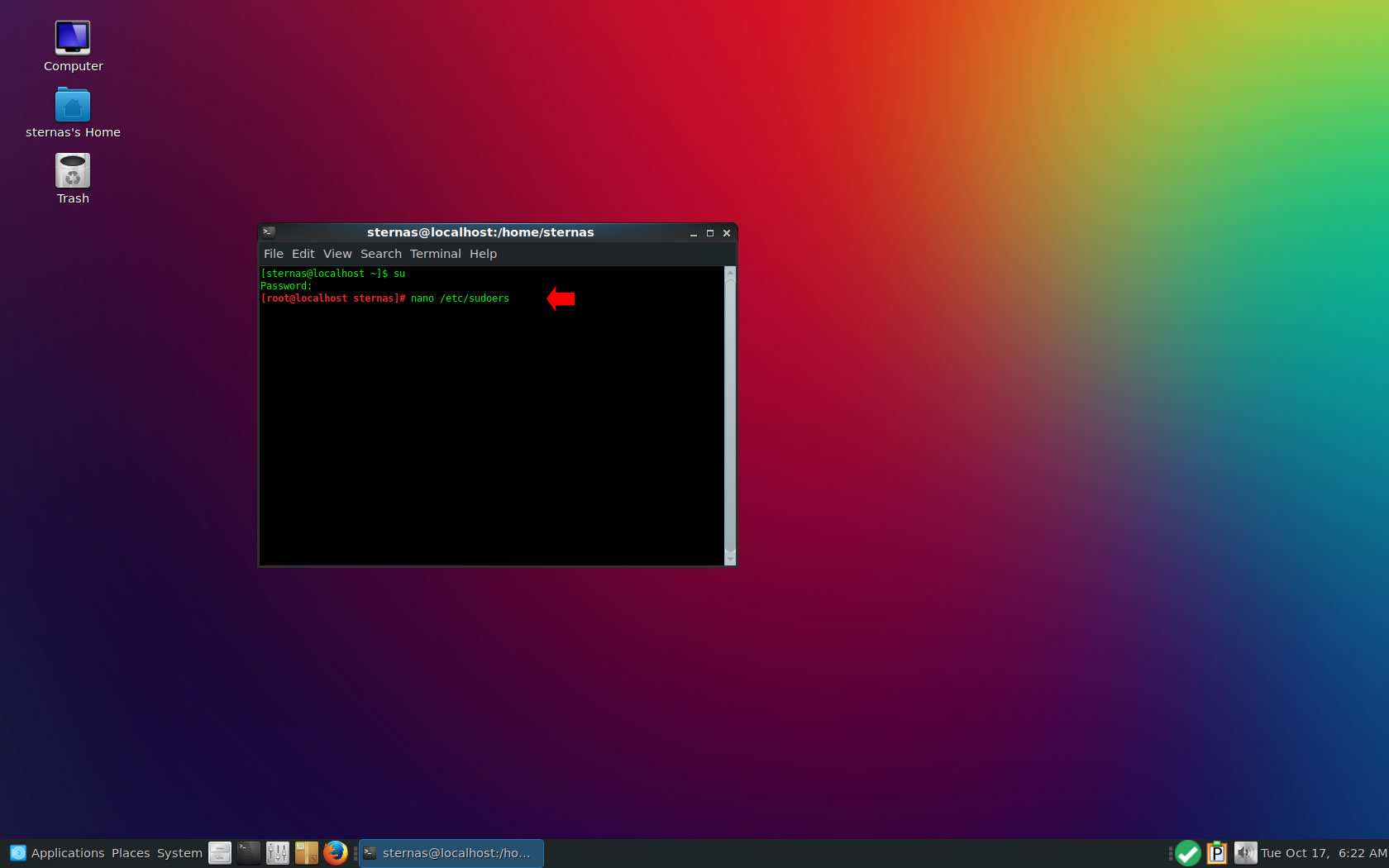

sudo nano /etc/sudoers



add at the end of /etc/sudoers the line

username ALL=(ALL) NOPASSWD: ALL

Ctl-X to exit and Y to save







3. Download-Unzip-Install

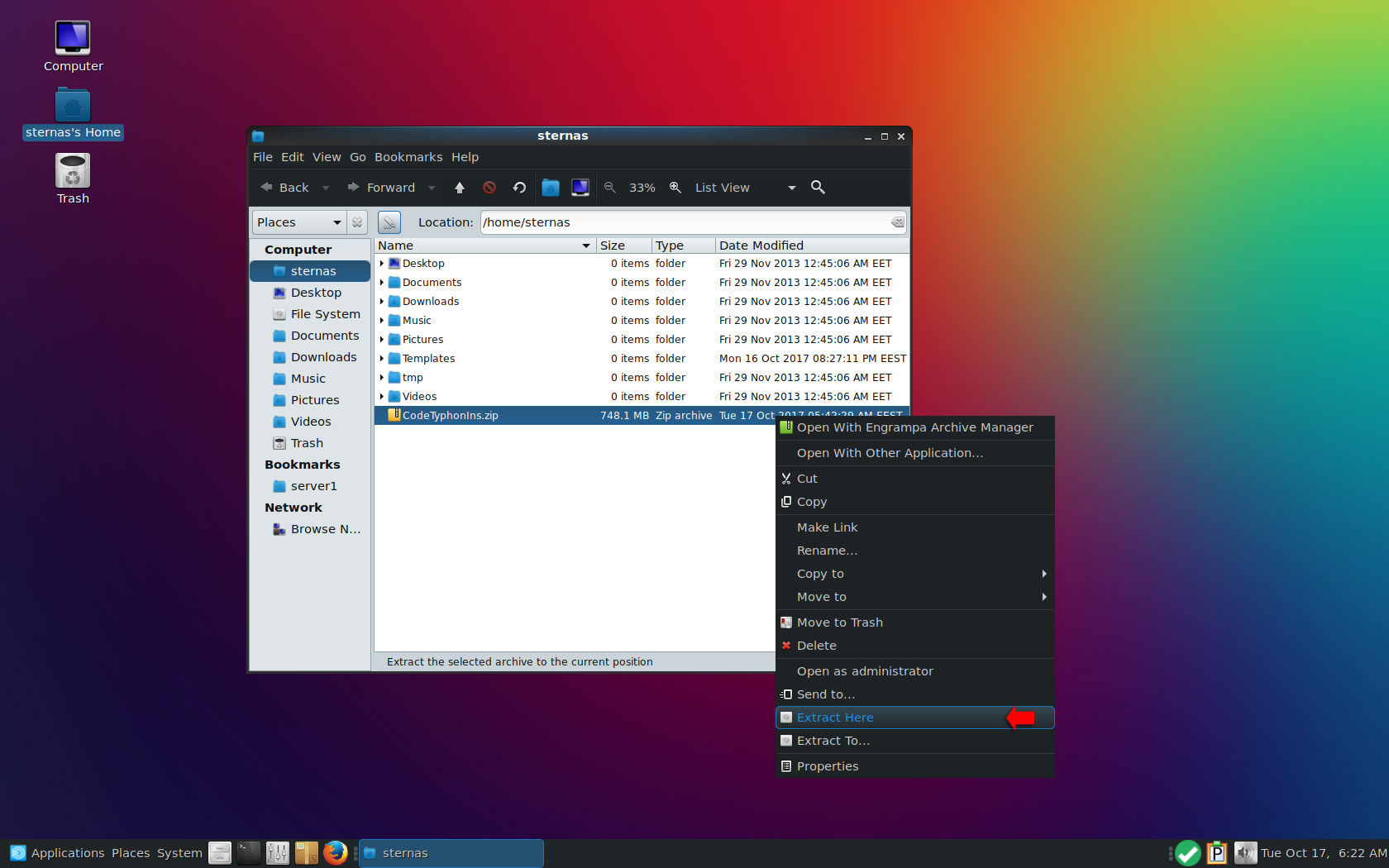

Download CodeTyphonIns.zip and unzip to your home directory

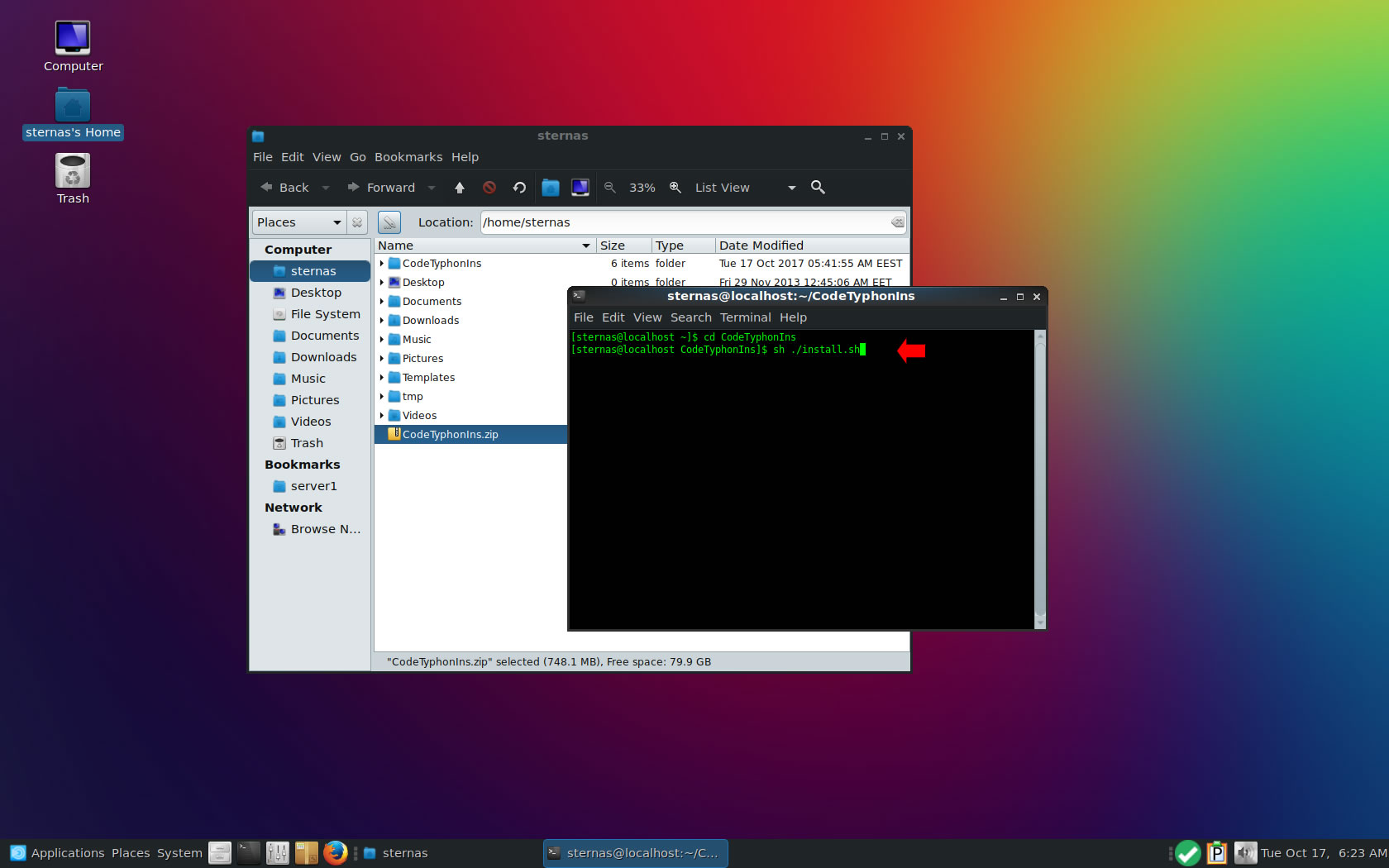

Open a terminal, and go to new CodeTyphonIns directory

cd CodeTyphonIns

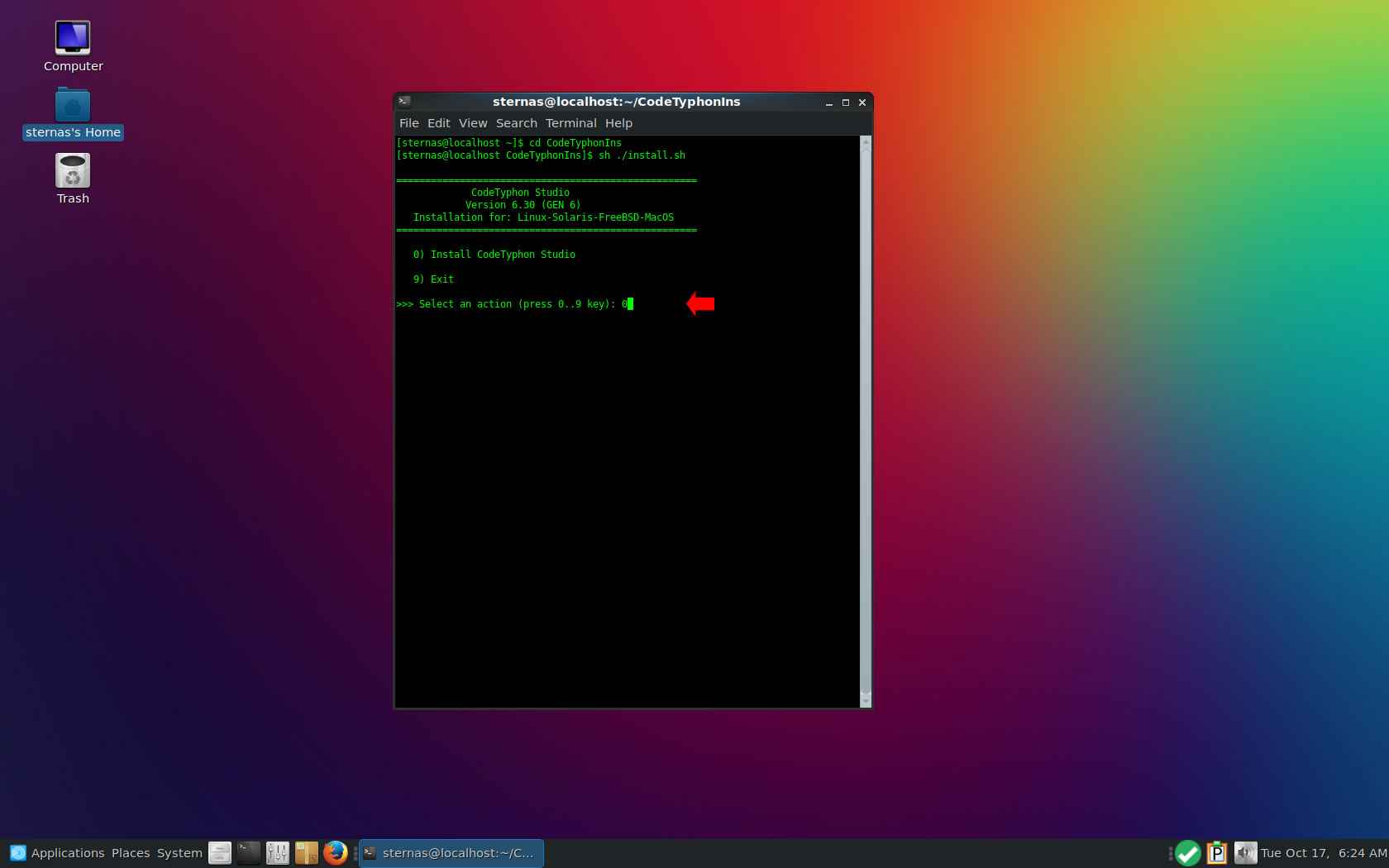

Start CodeTyphon Installation with command

sh ./install.sh

Give zero "0" to Install CodeTyphon

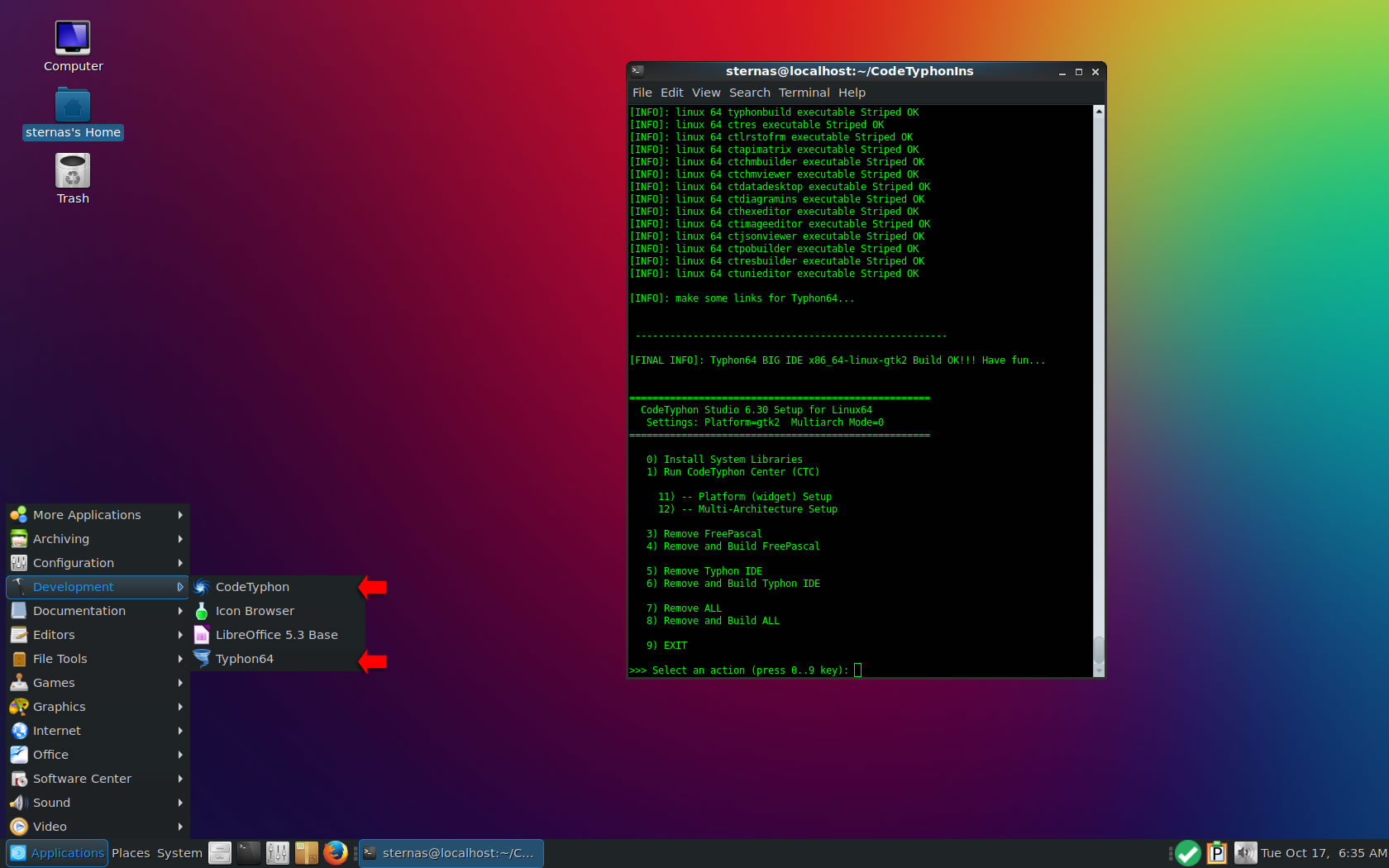

4. Setup and Build (for GTK2)

After CT install you can start CTCenter or to continue with the open terminal

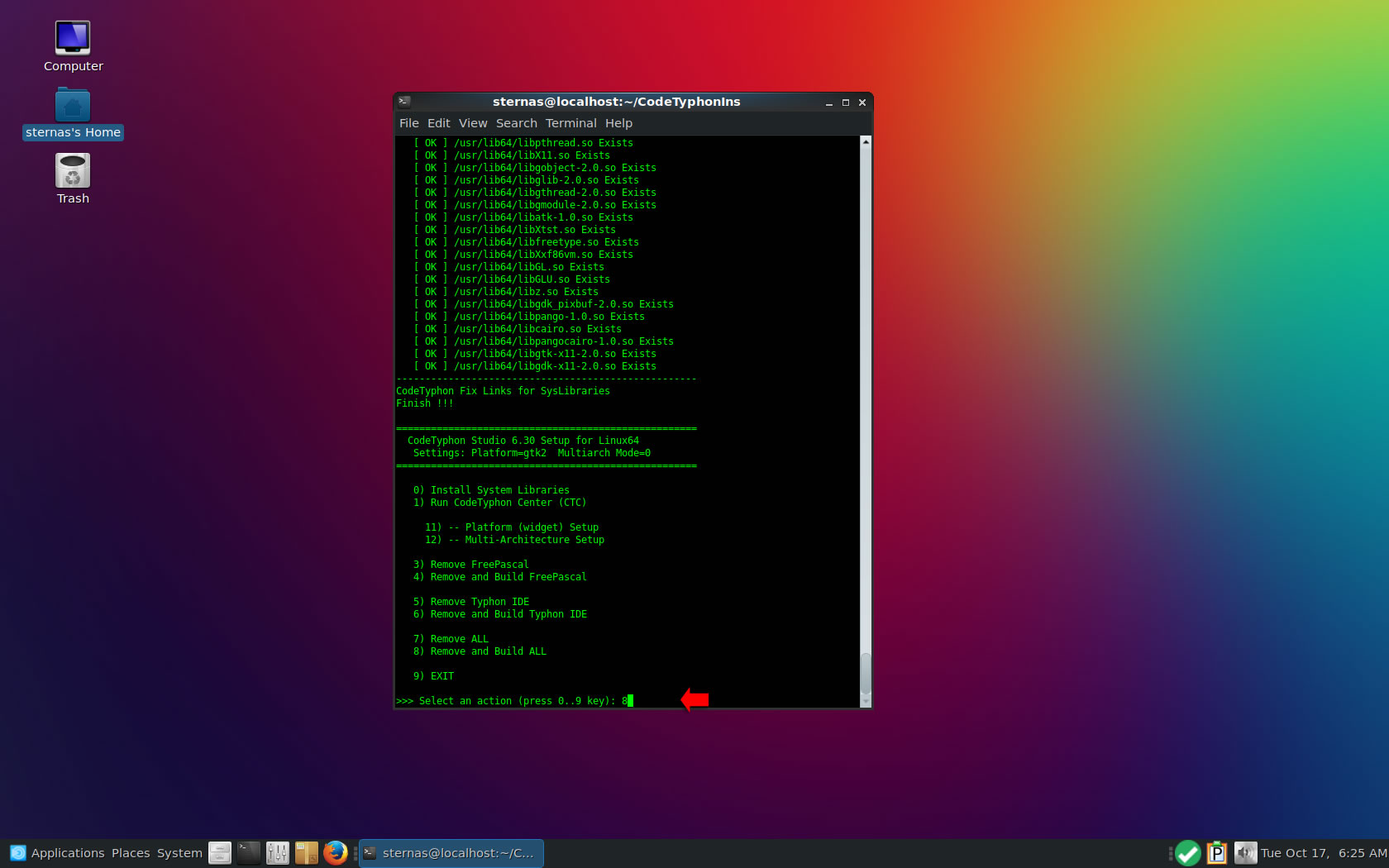

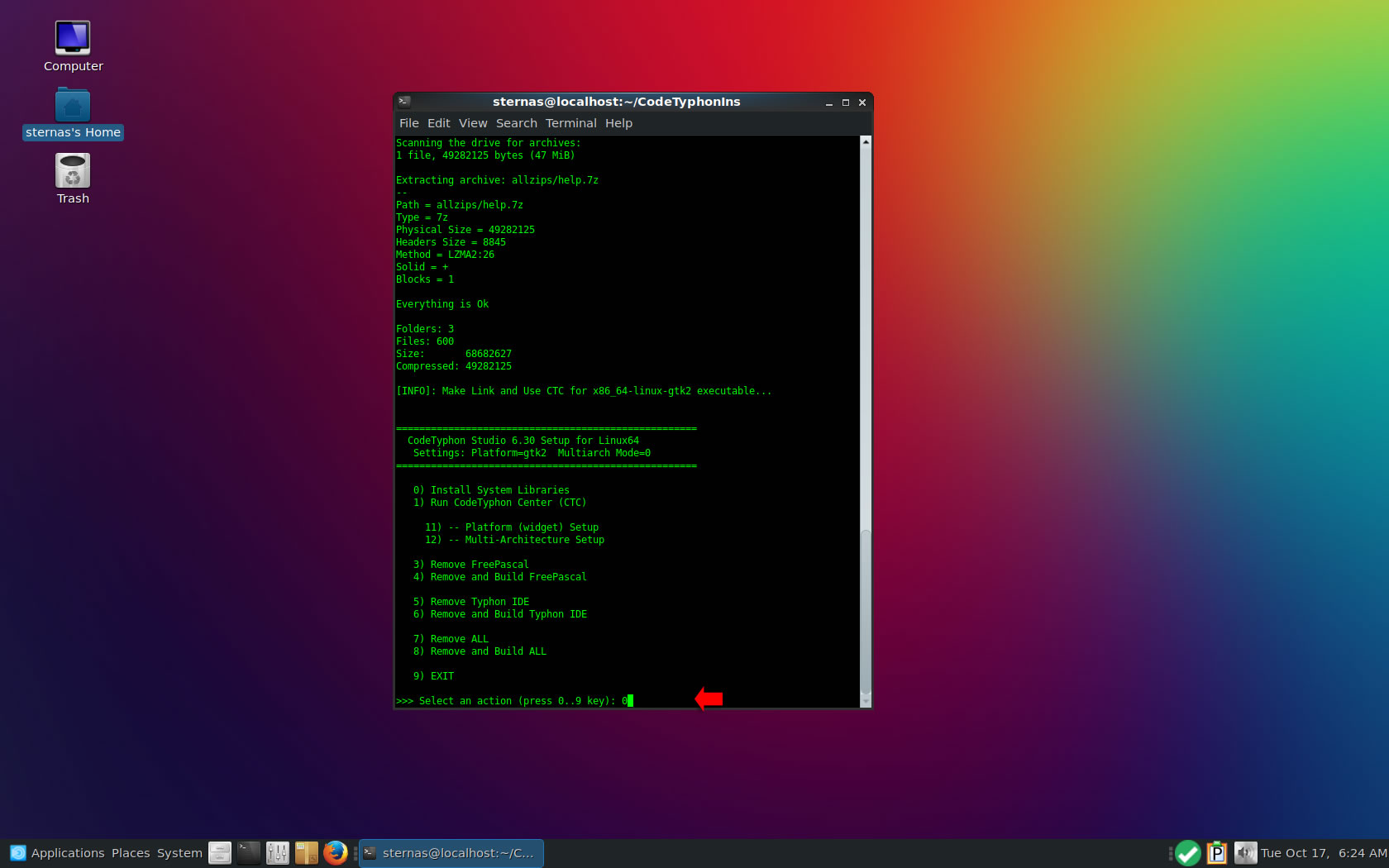

It's the first installation of CodeTyphon on this PC, so we install "system libraries" select "0".



Select "8" to build all...







5. Finally

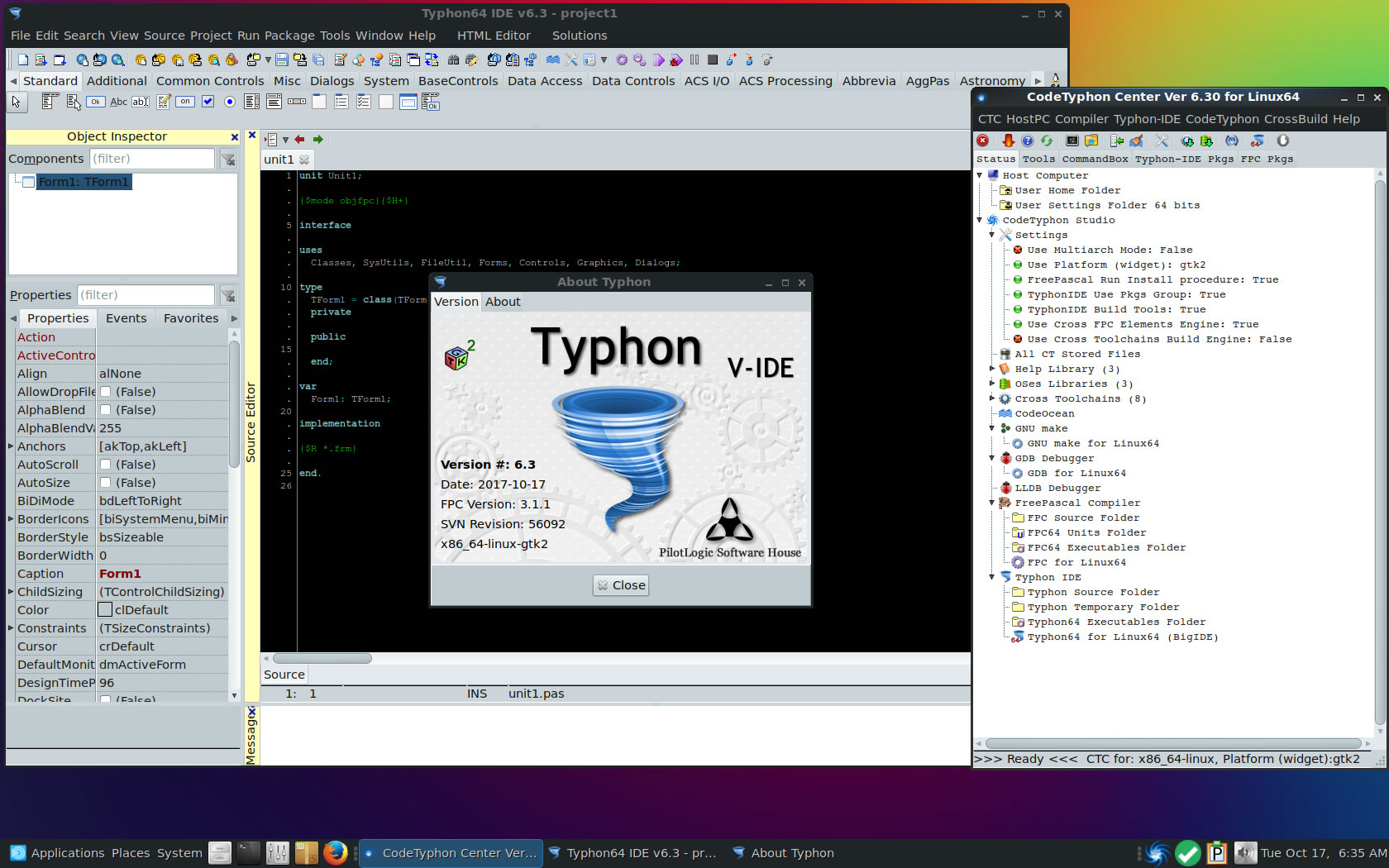

CTCenter, Typhon64 for GTK2, with ALL Docked Option (single Window)







6. Libraries tests (GTK2)

We test some of about 1470 CodeOcean samples...

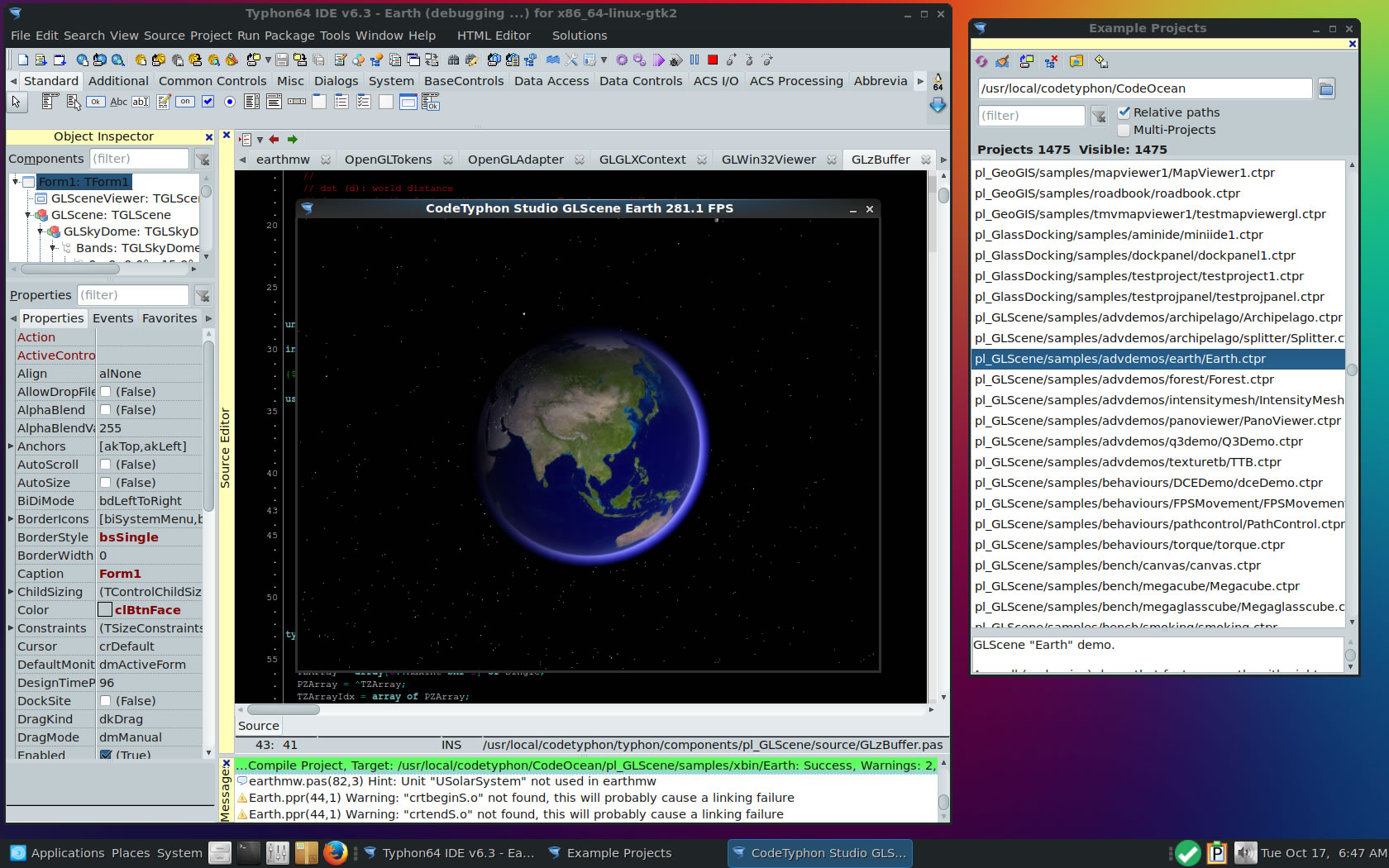

pl_GLScene

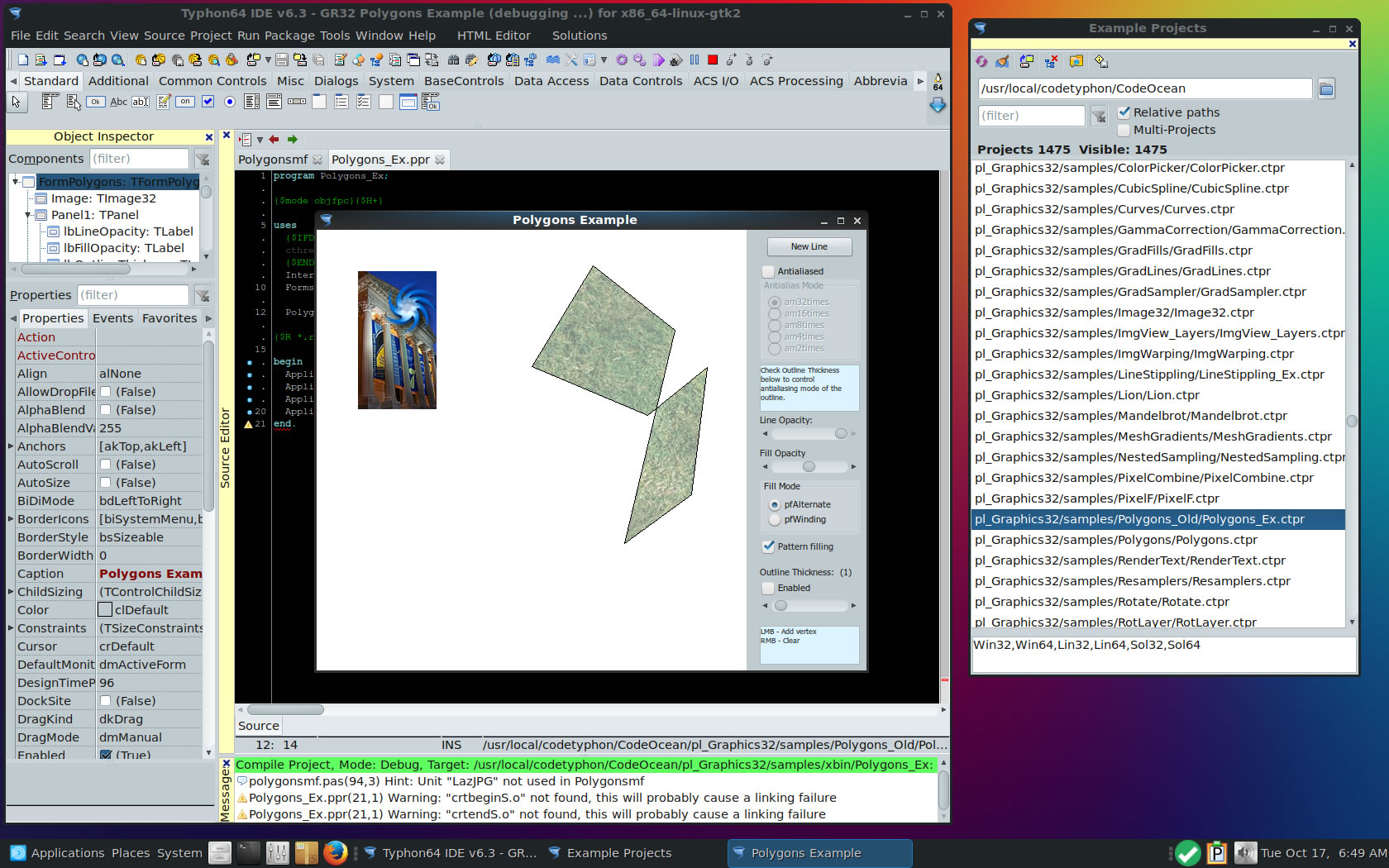

pl_Graphics32

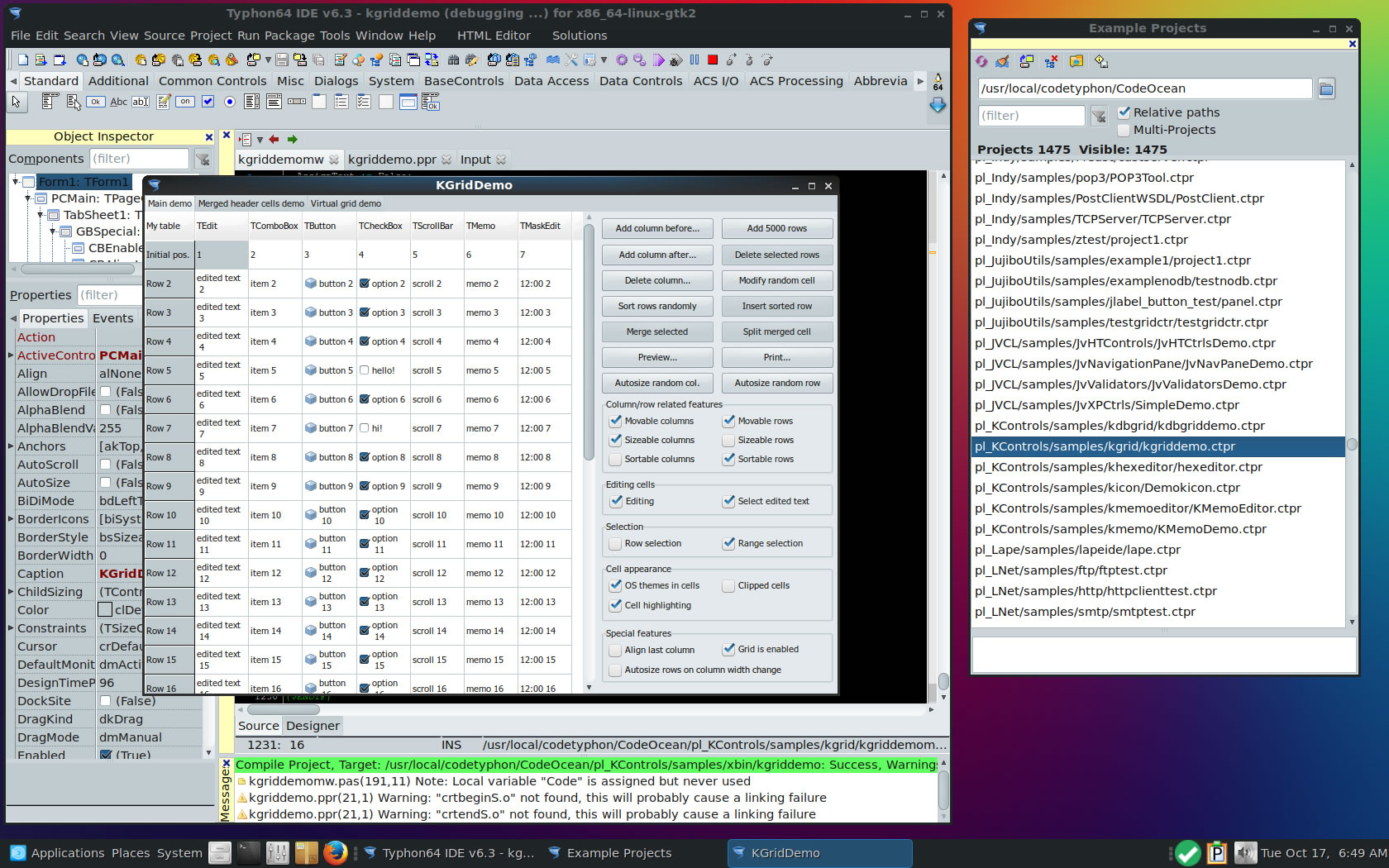

pl_KControls

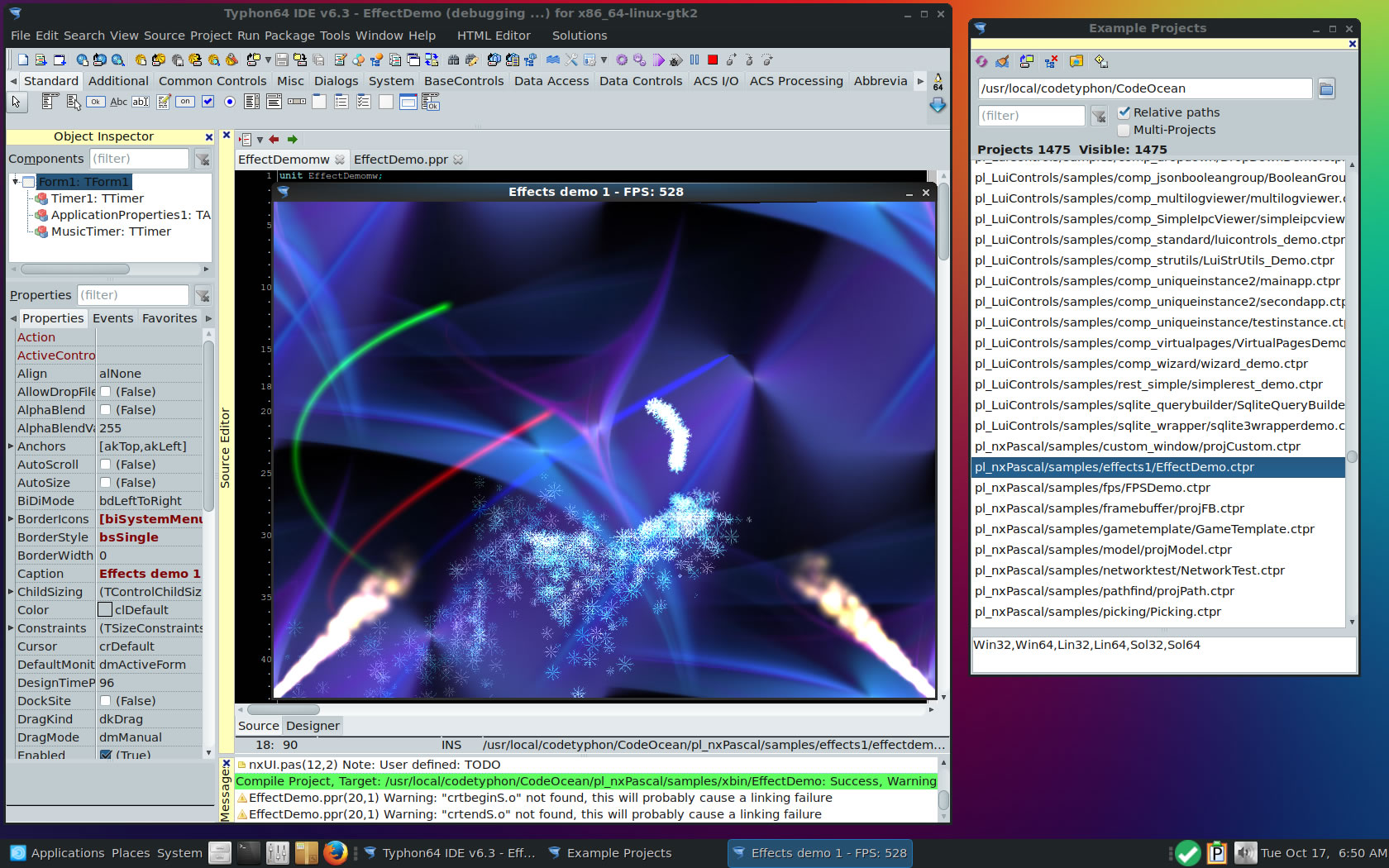

pl_nxPascal

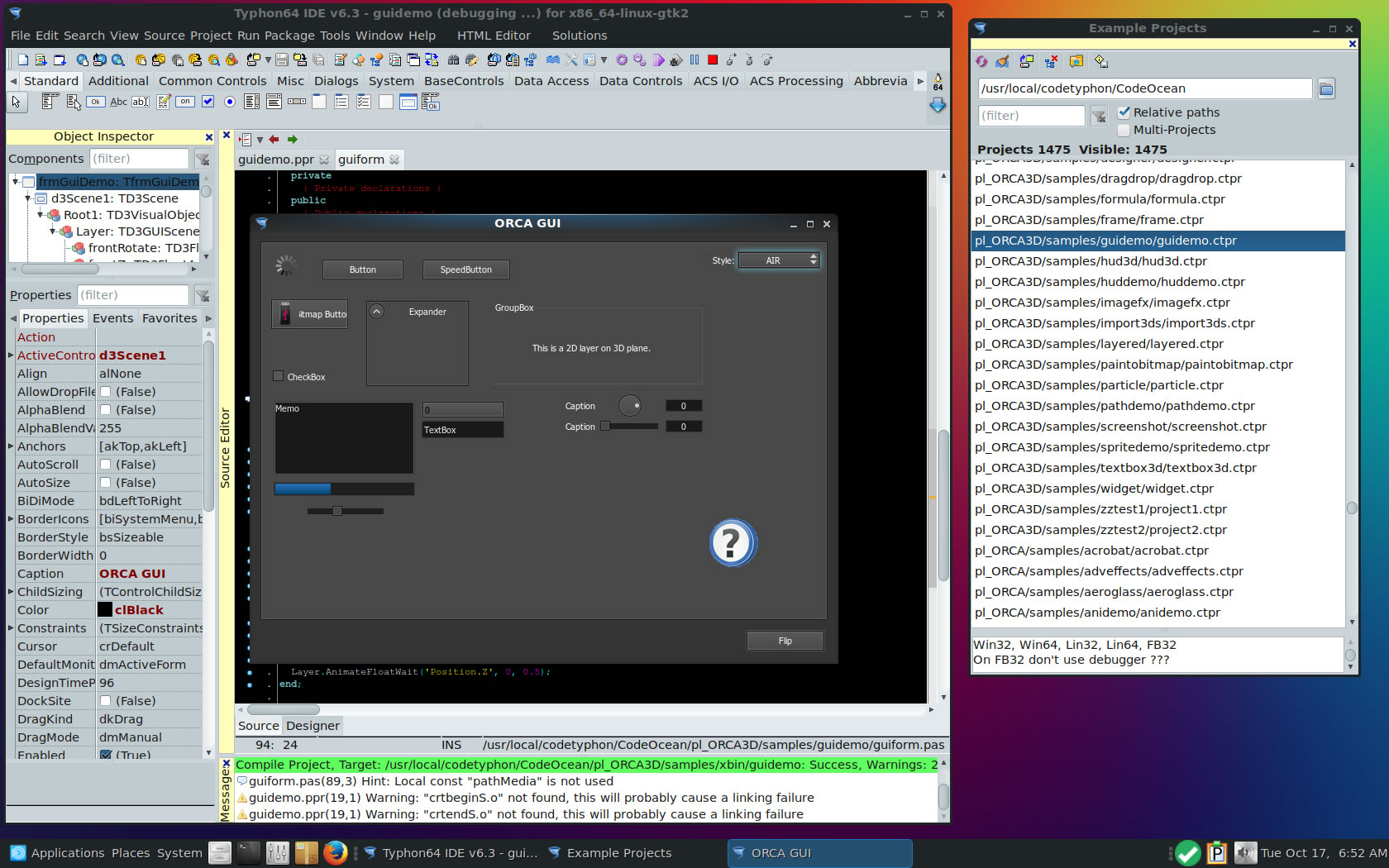

pl_ORCA3D

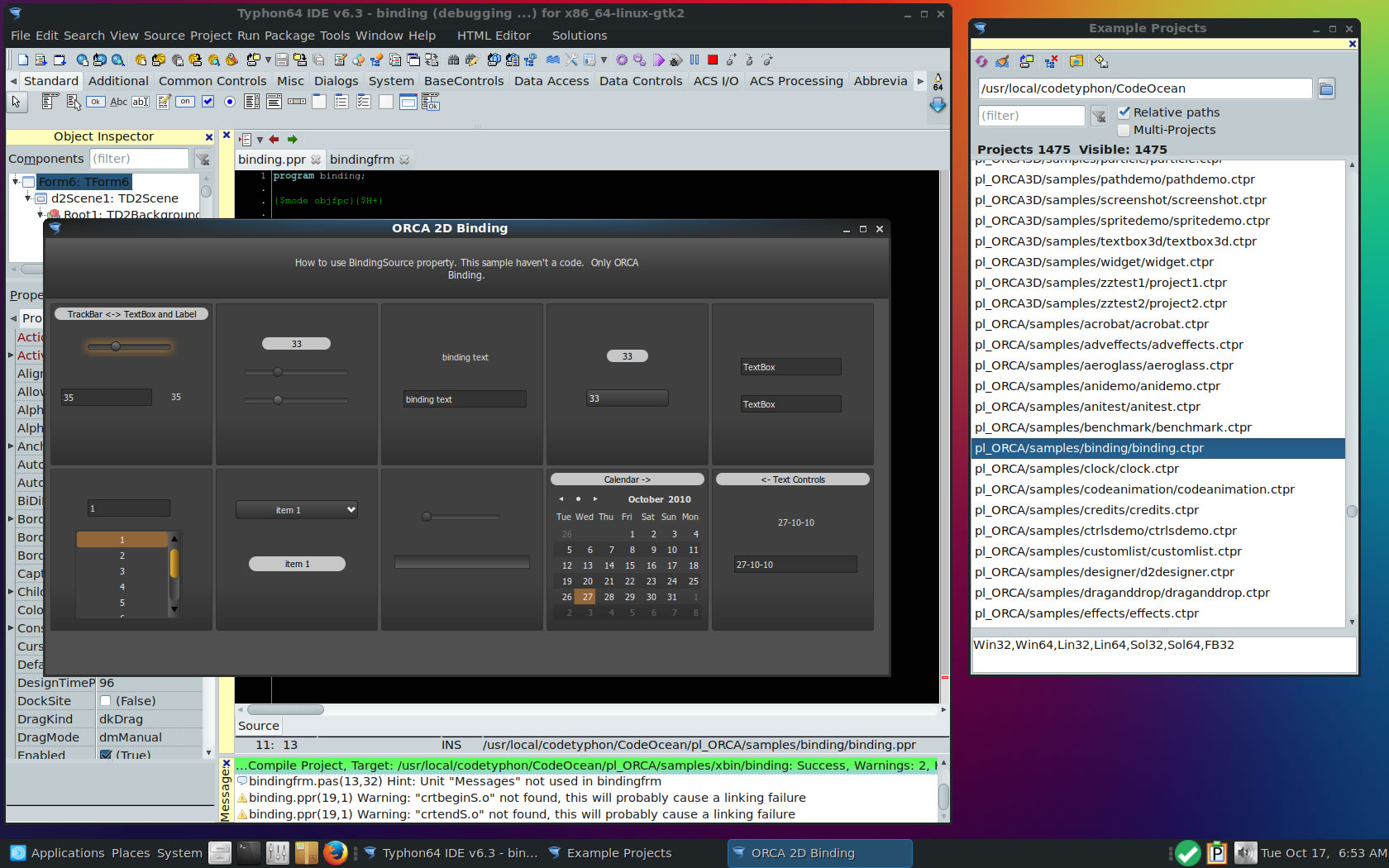

pl_ORCA

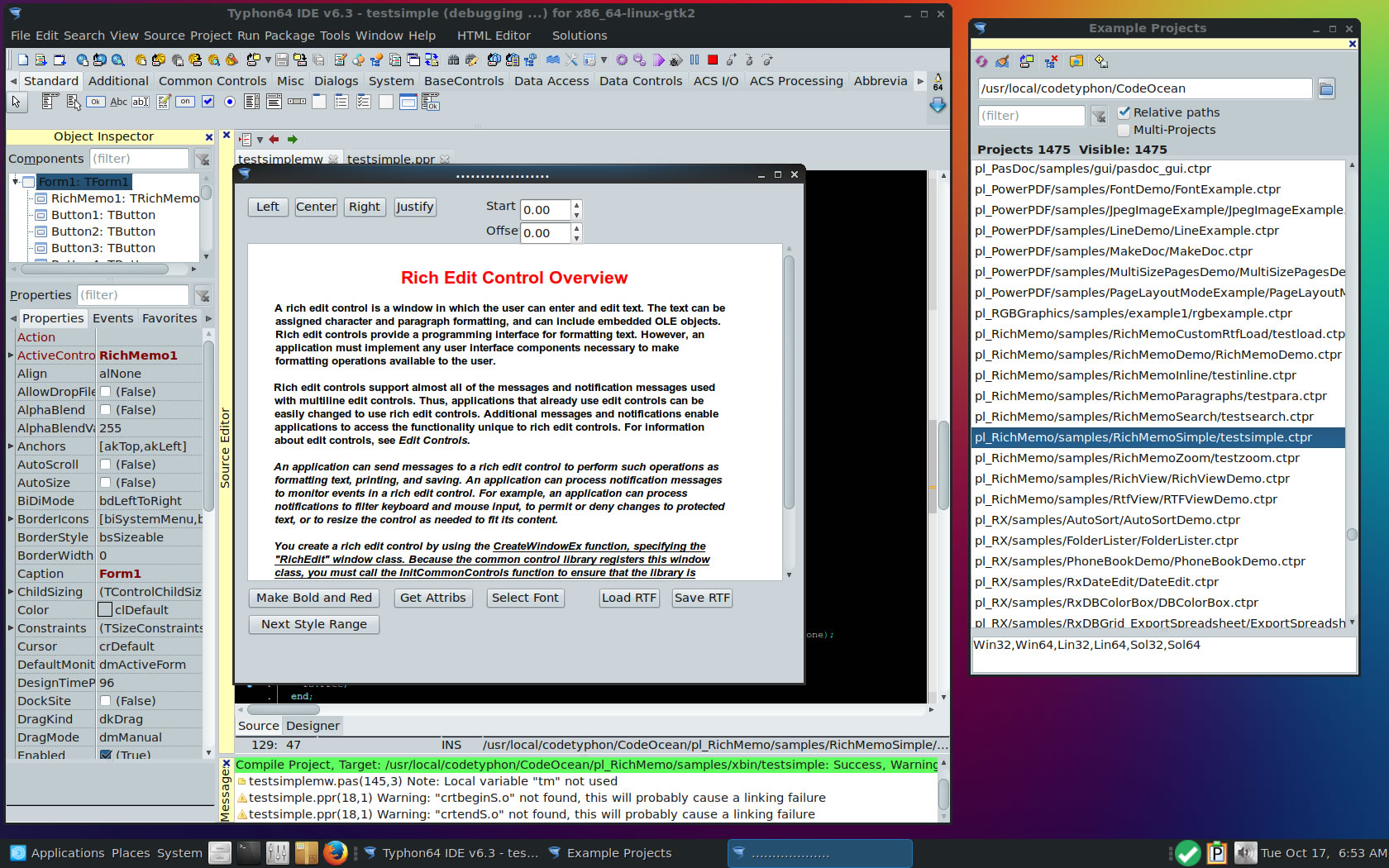

pl_RichMemo

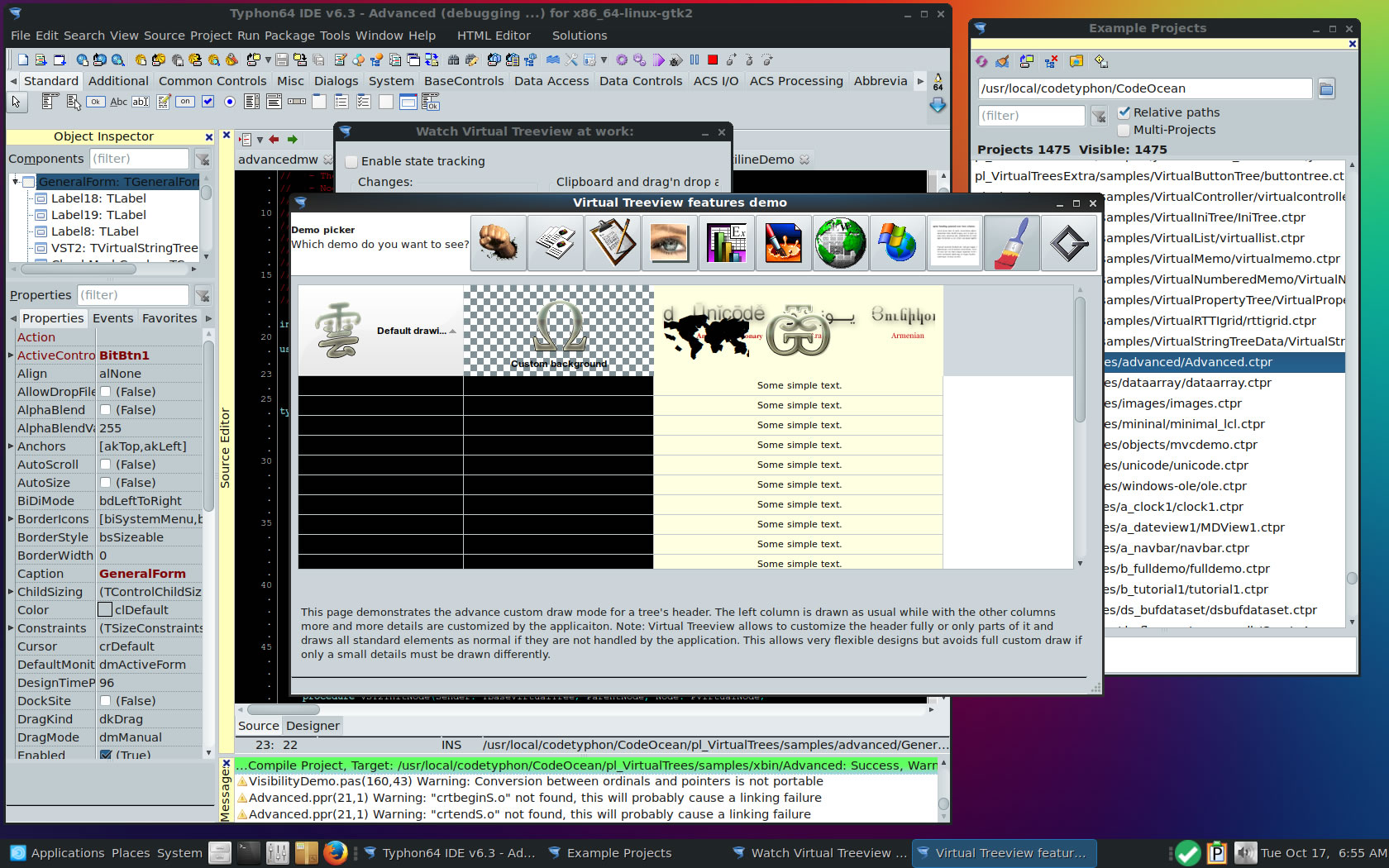

pl_VirtualTrees

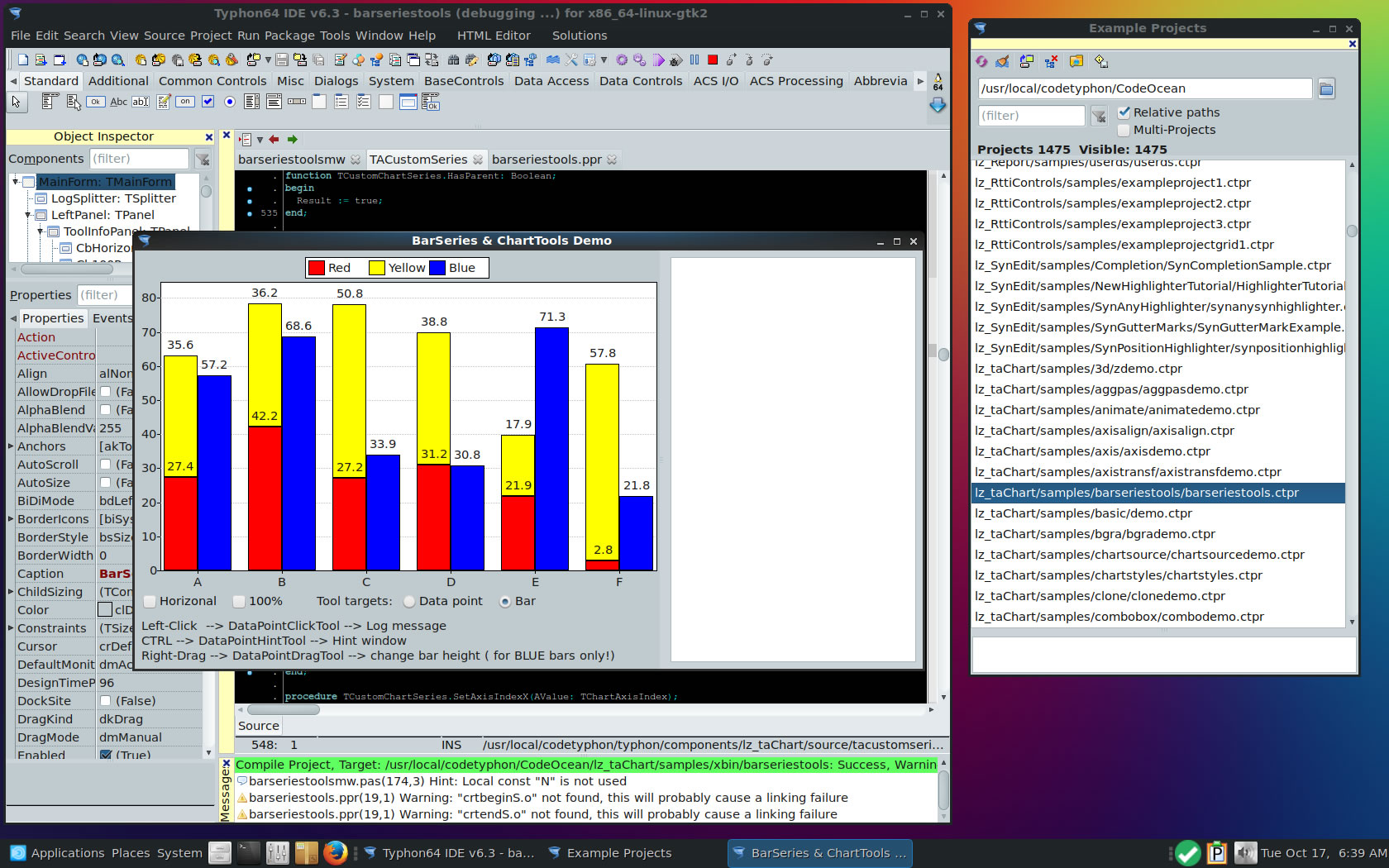

lz_taChart

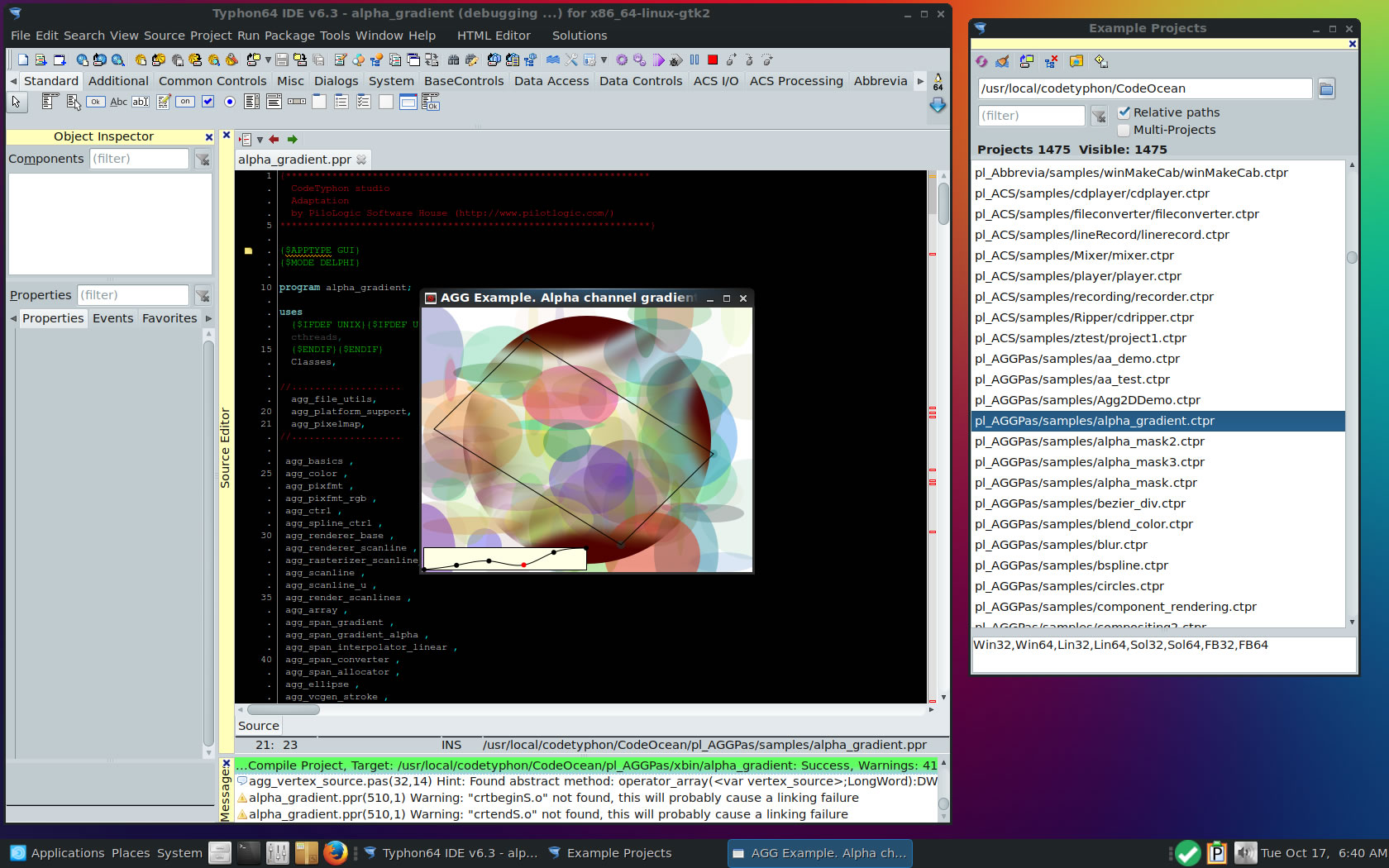

pl_AGGPas

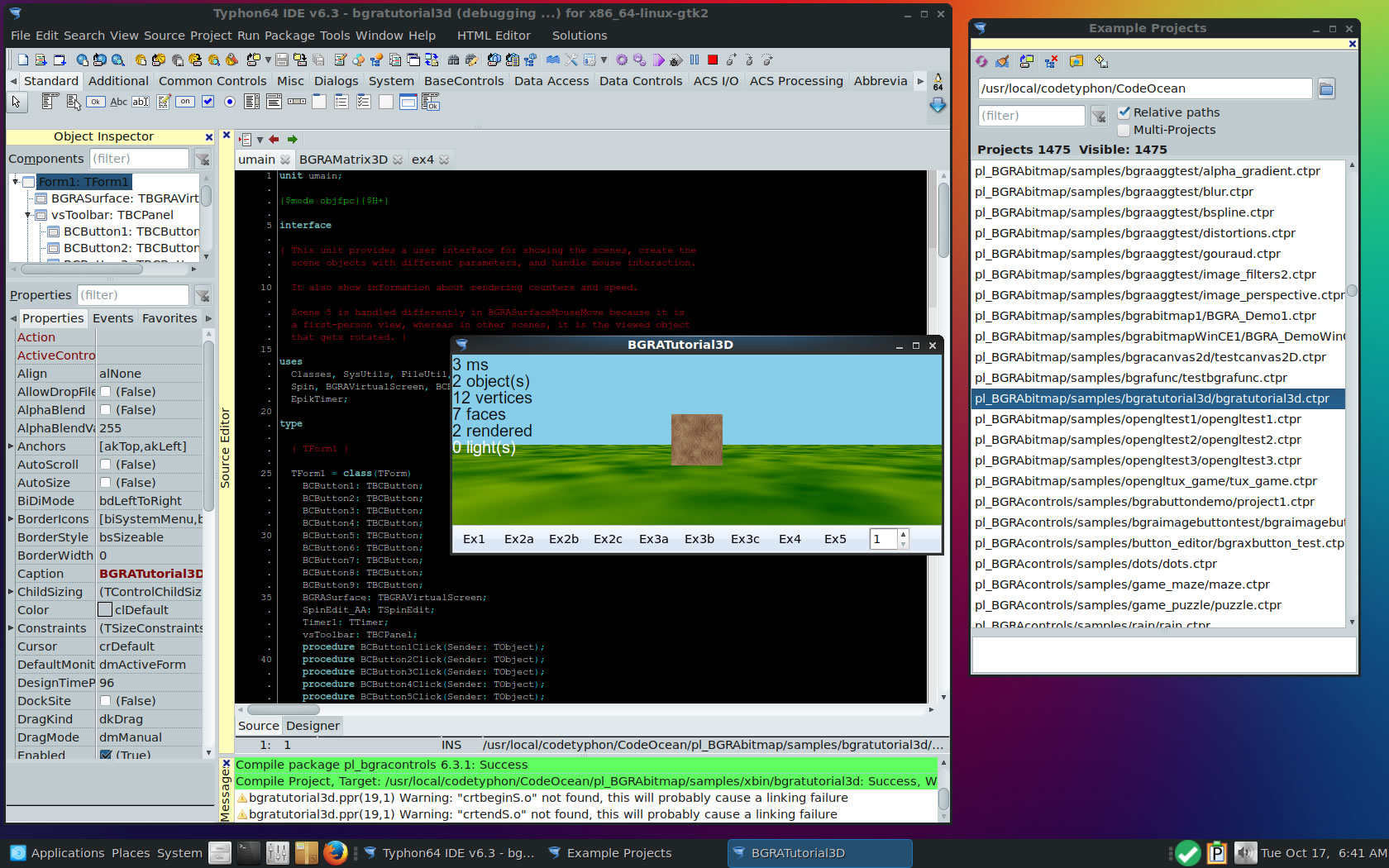

pl_BGRAbitmap

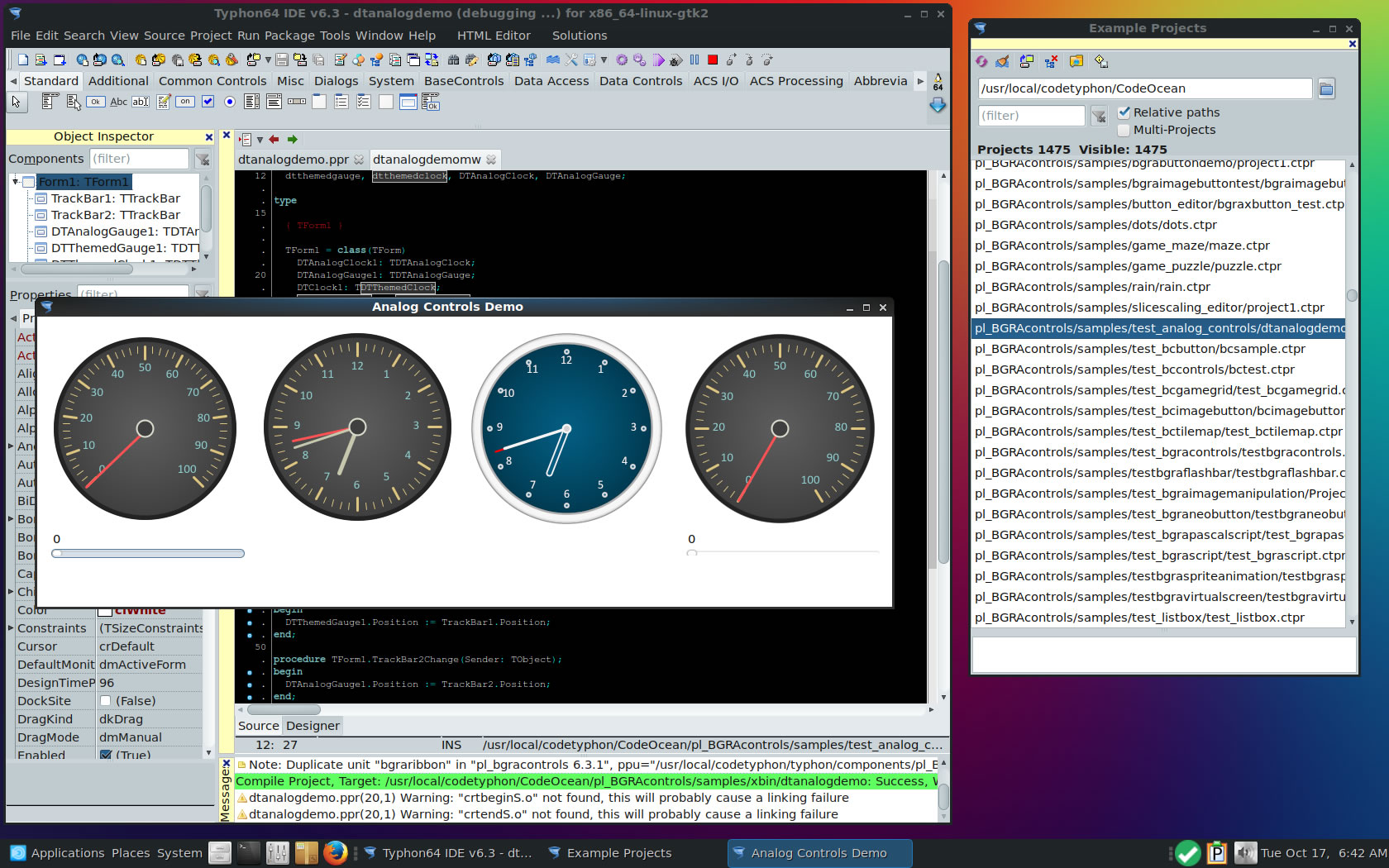

pl_BGRAControls

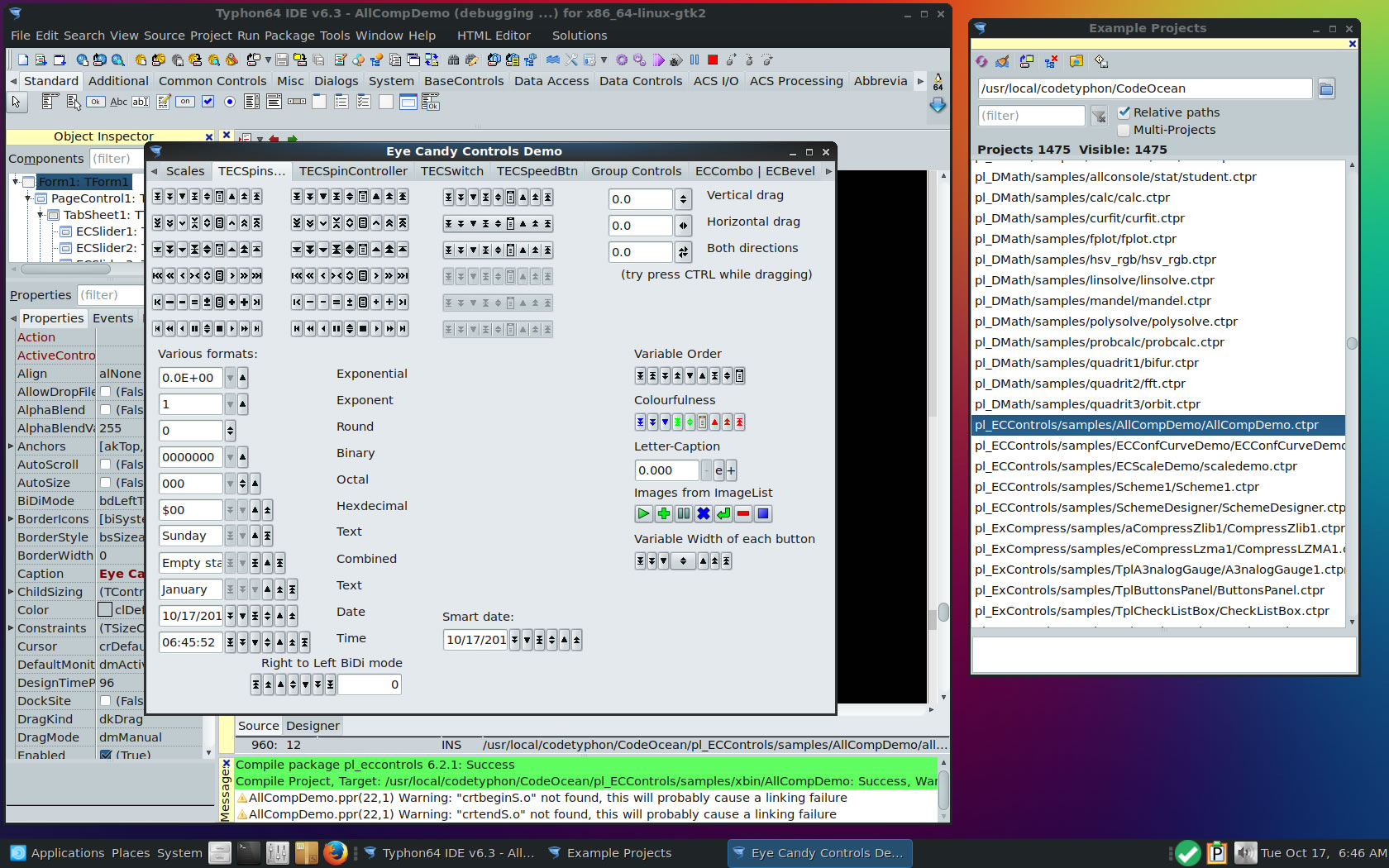

 pl_ECControls

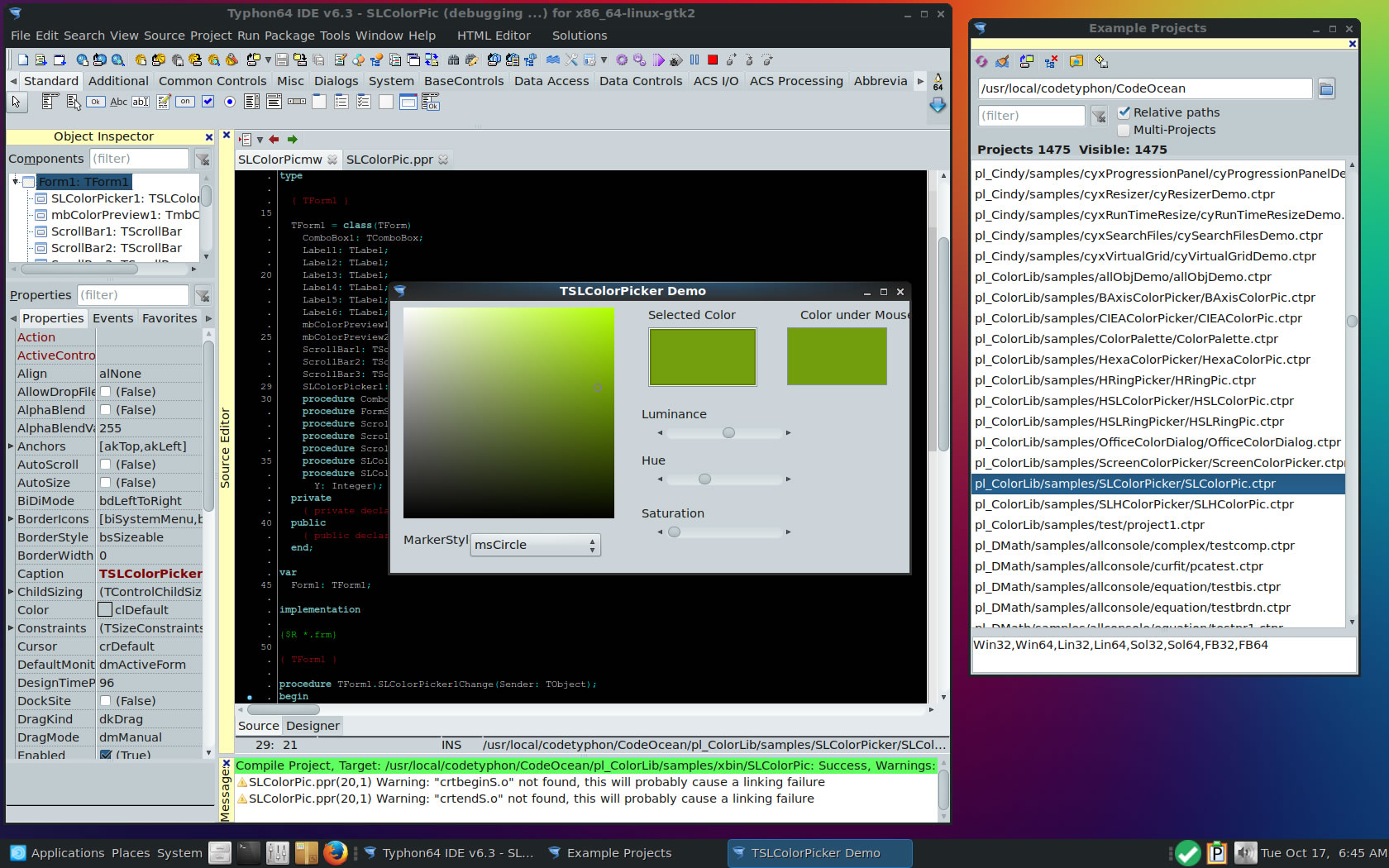

pl_ColorLib

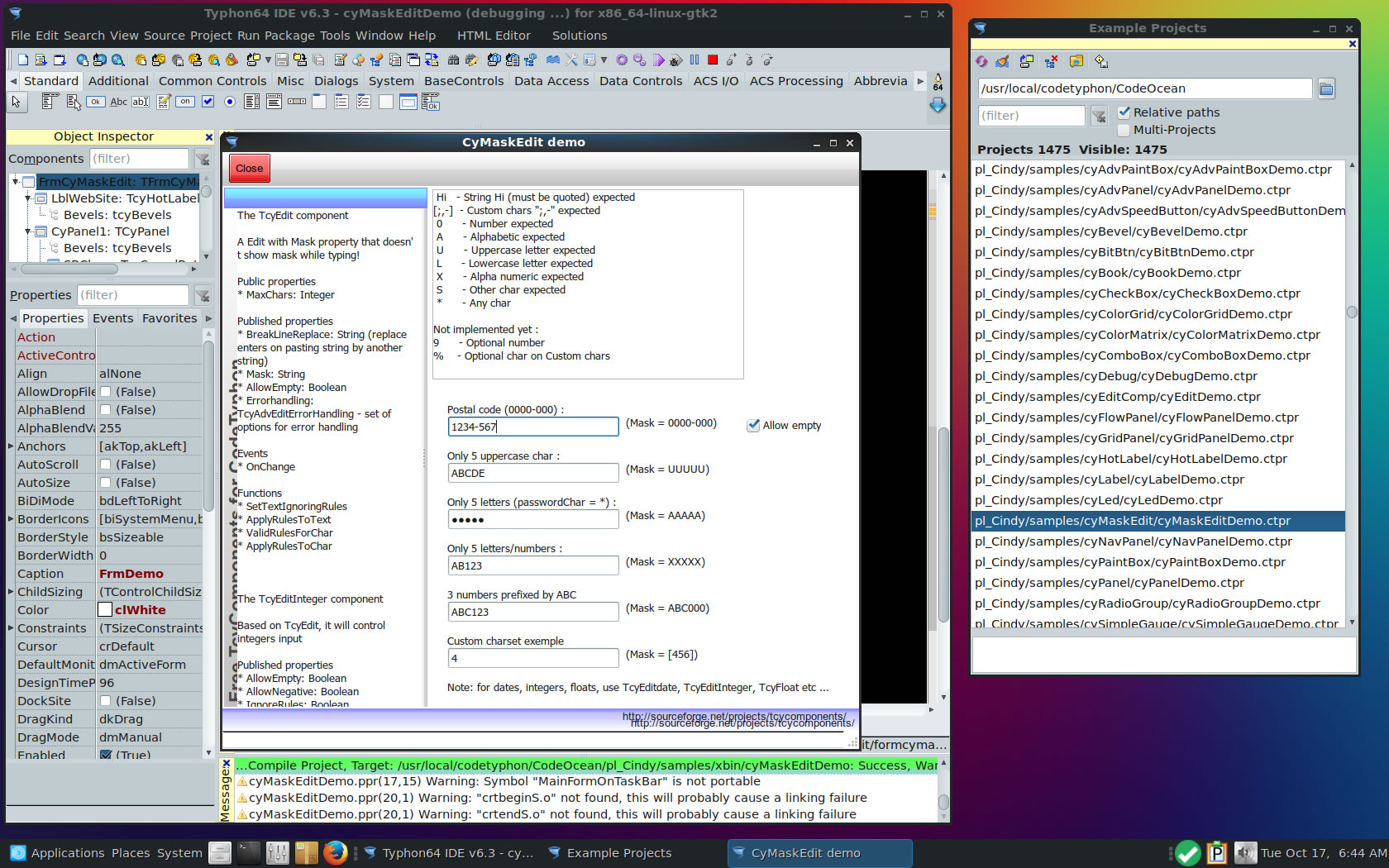

pl_Cindy

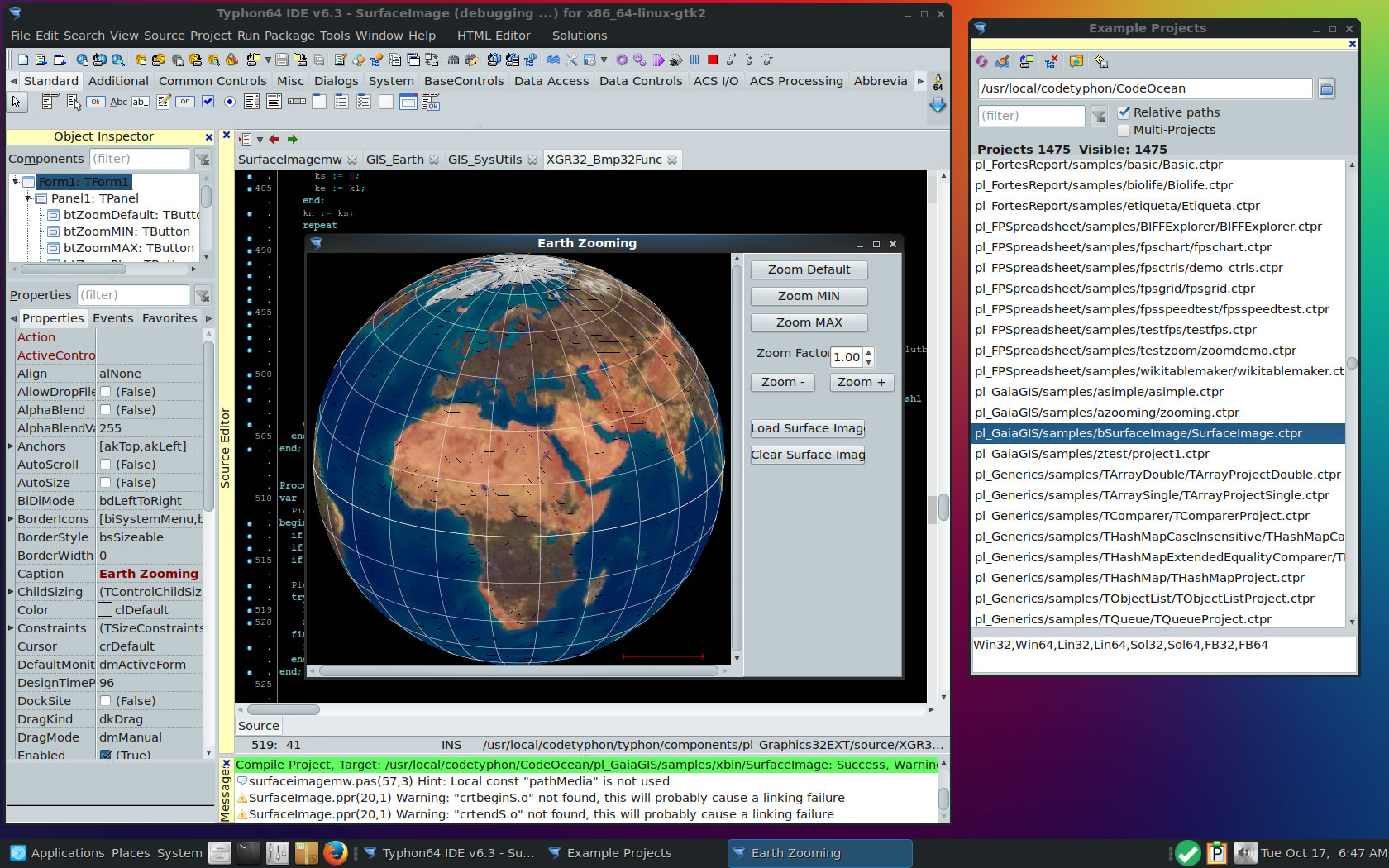

pl_GaiaGIS

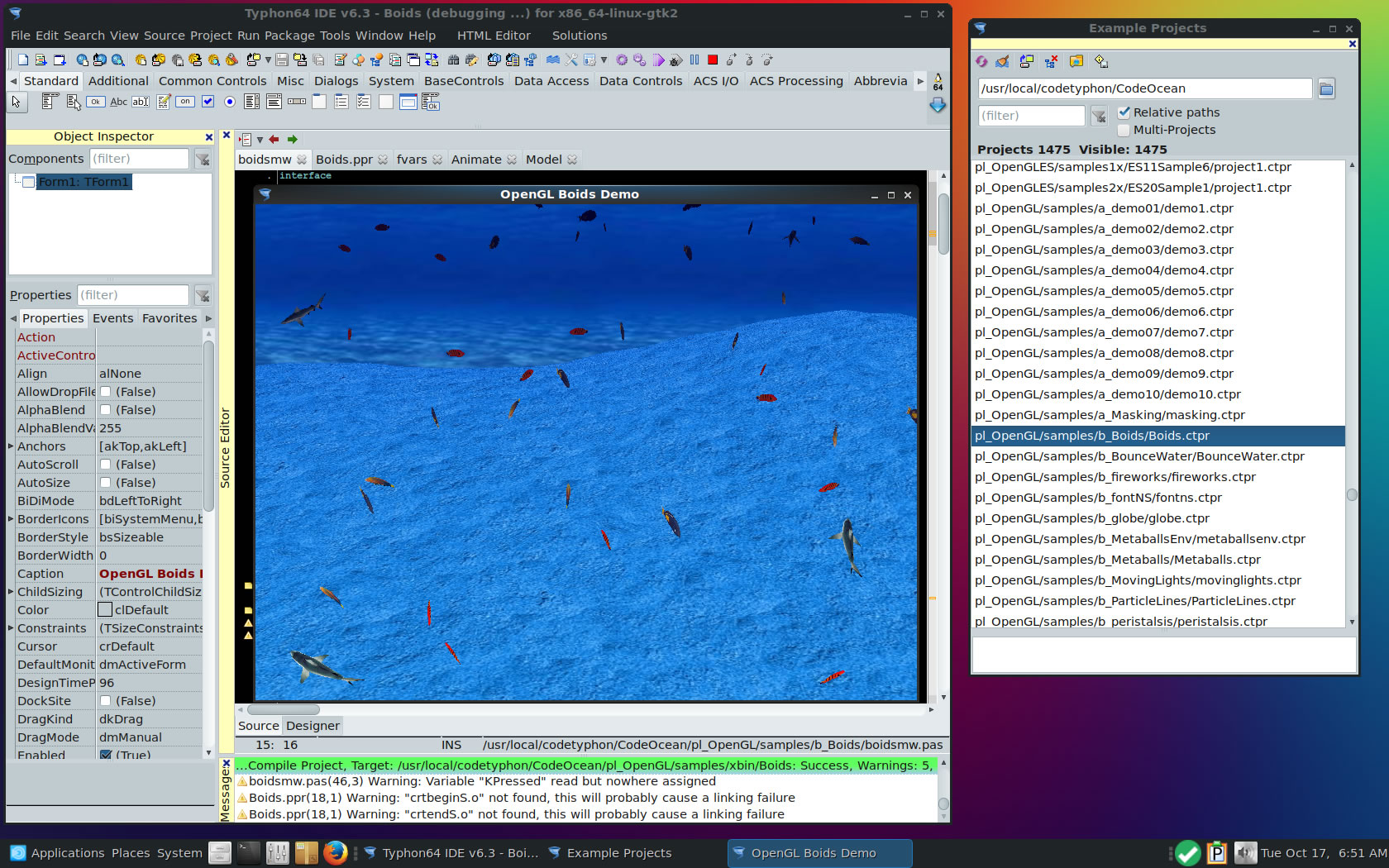

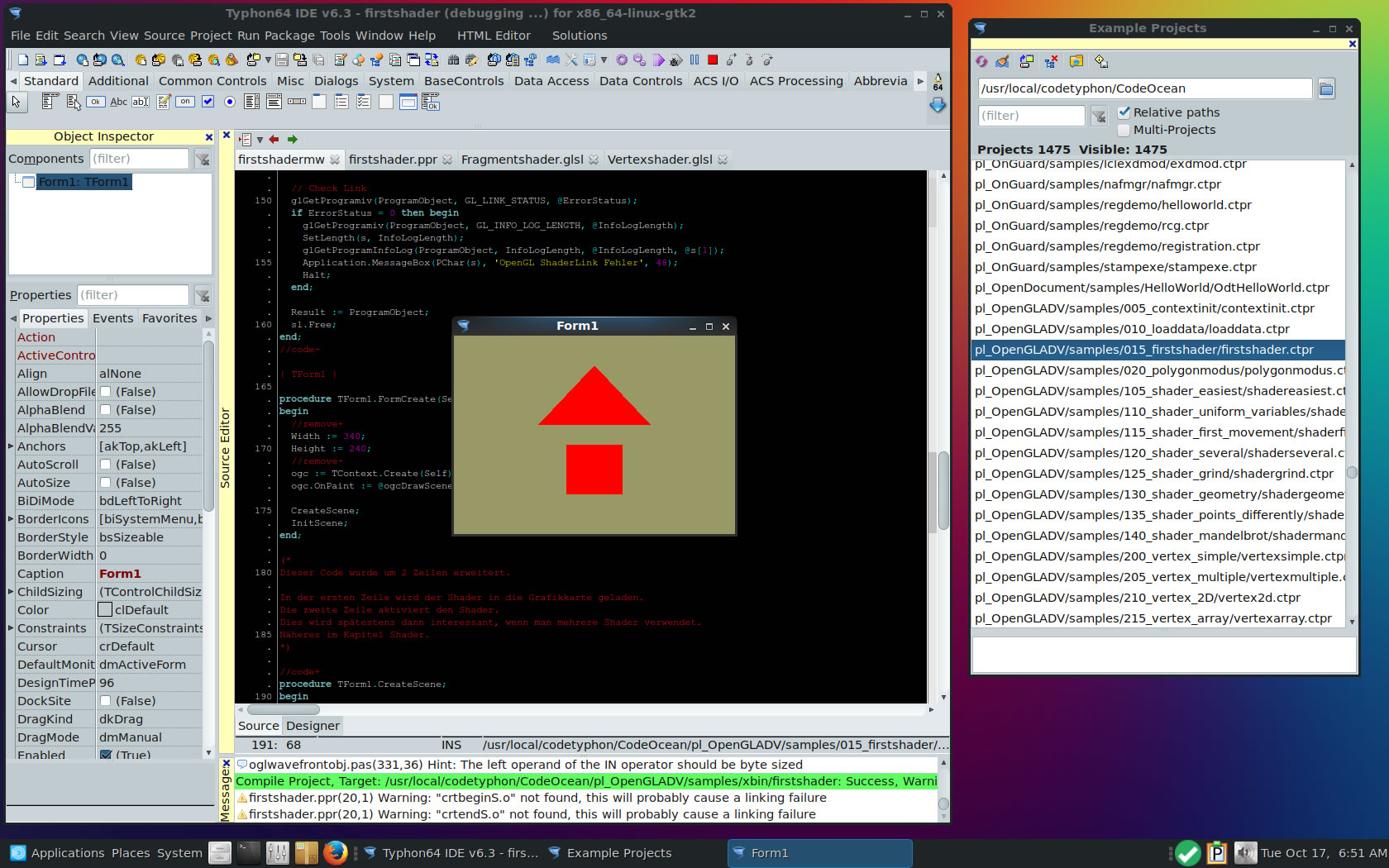

pl_OpenGL



pl_OpenGLADV

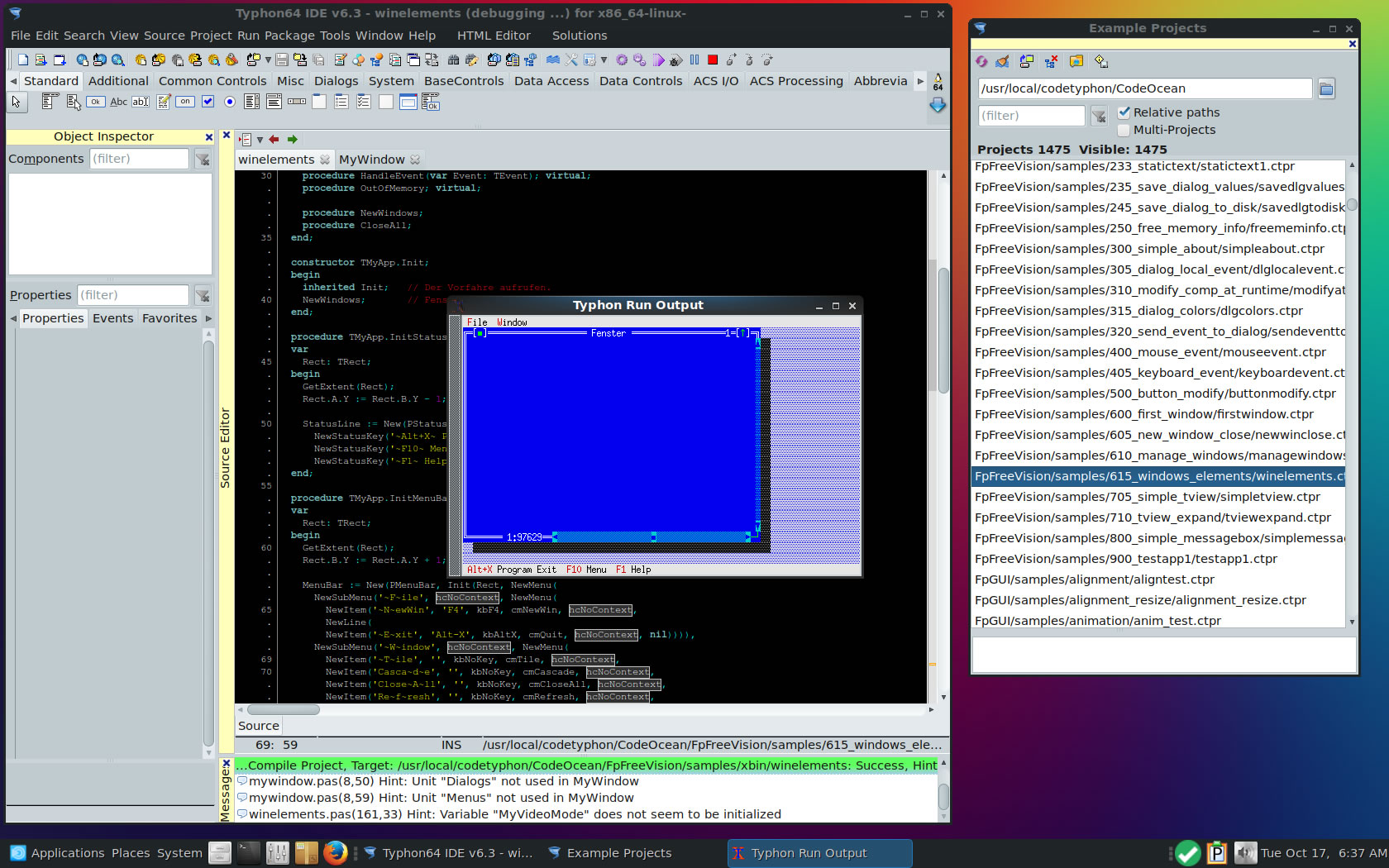

FreeVision application !!!
