CT on Manjaro 21.2.0


We test LAB CodeTyphon 7.70 on Manjaro 21.2.0

Manjaro Linux is a fast, user-friendly, rolling-release, desktop-oriented operating system based on Arch Linux.
Key features include intuitive installation process, automatic hardware detection, stable rolling-release model, ability to install multiple kernels, special Bash scripts for managing graphics drivers and extensive desktop configurability.
Manjaro Linux offers Xfce as the core desktop options, as well as a minimalist Net edition for more advanced users.
Community-supported GNOME 3/Cinnamon and KDE flavours are available.
Users also benefit from the supportive and vibrant Manjaro community forum.

More for Manjaro OS here dearth

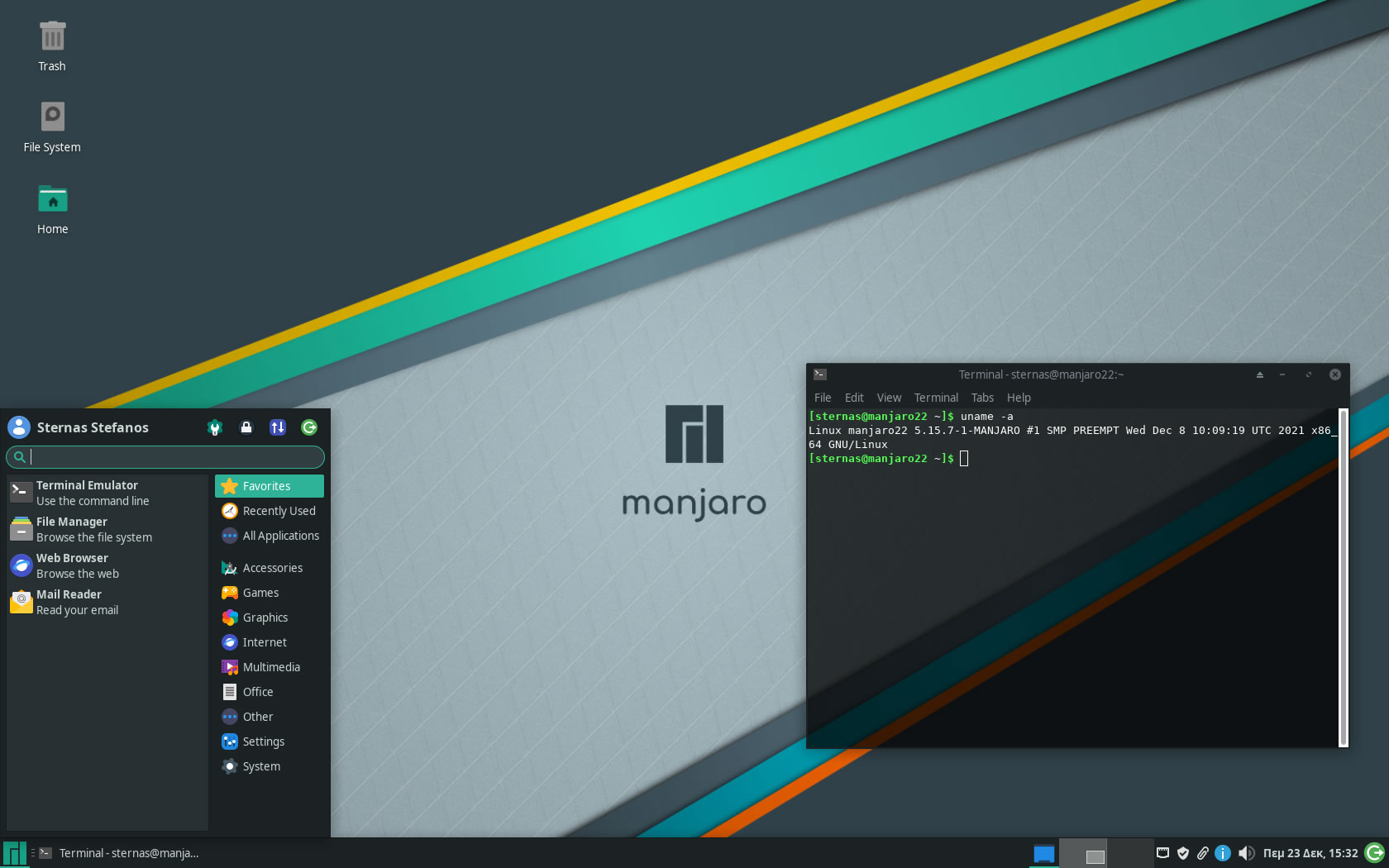

System: Entry level PC with 1 CPU (4-Cores) / 8 Gbyte RAM / 120 Gbytes Hard Disk / 1680x1050 pixels Monitor
OS : Manjaro 64bits with Xfce as frontend Desktop





1. Preparation-Give "sudo" root privileges

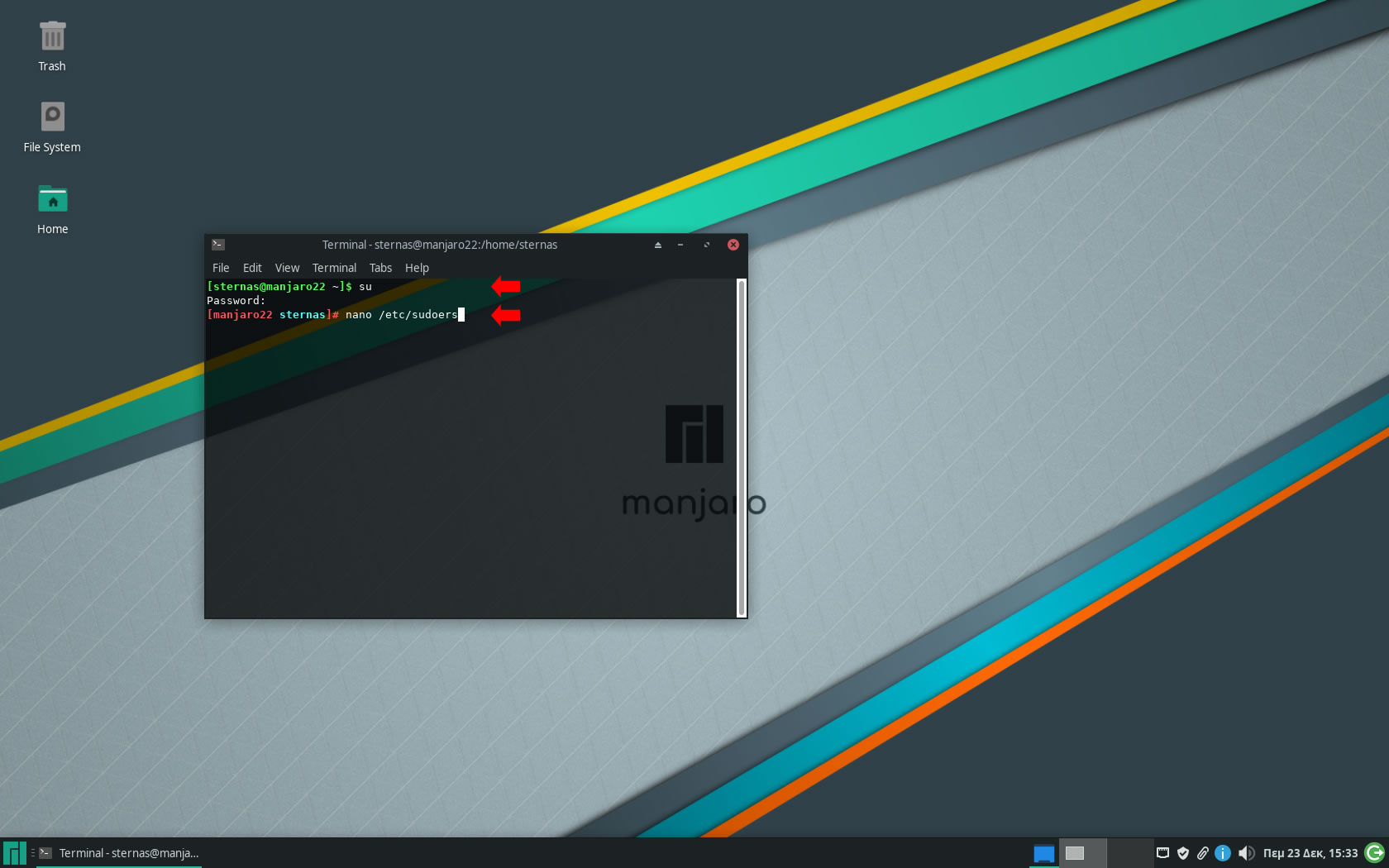

Open a terminal and exec

nano /etc/sudoers

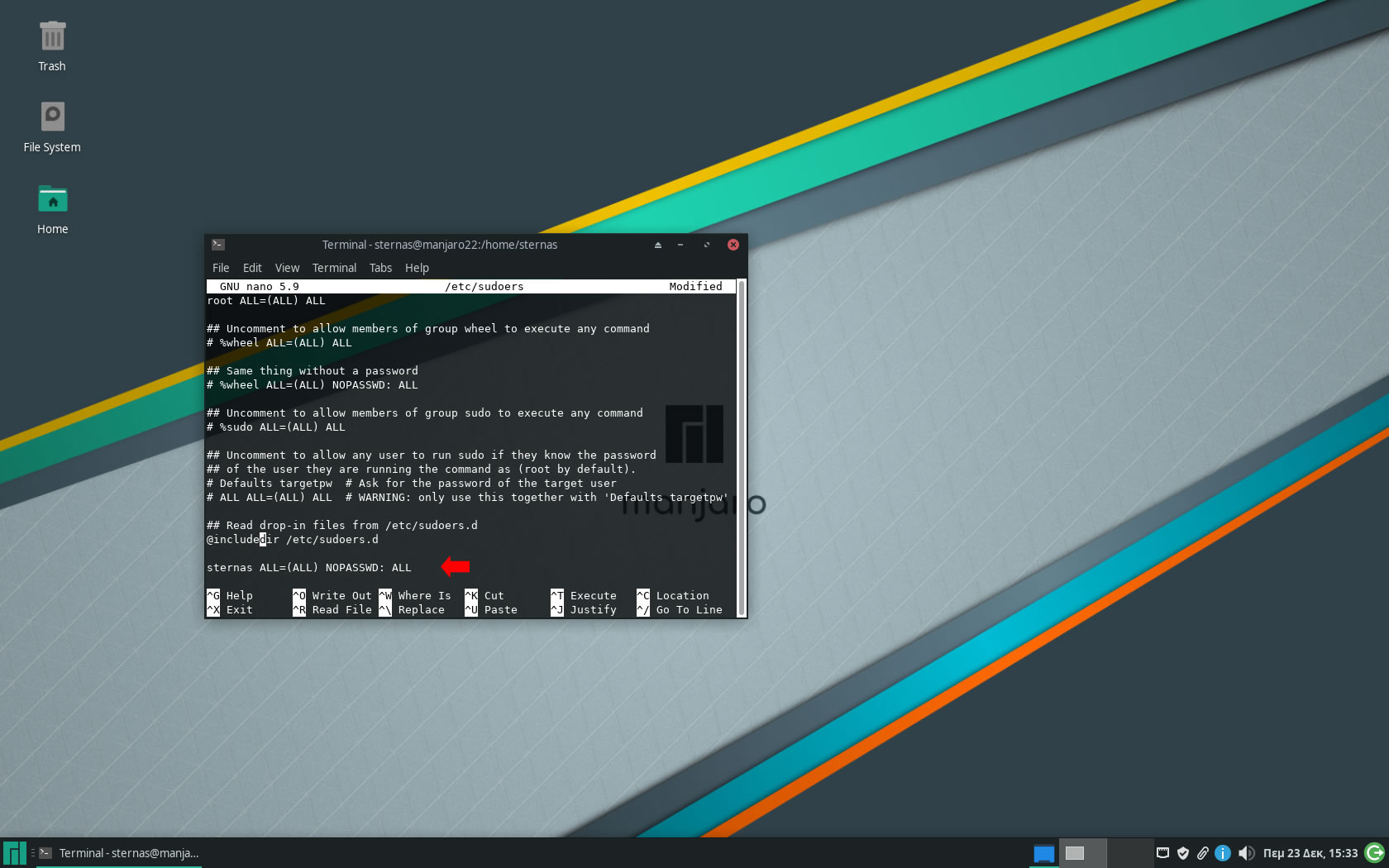

add at the end of /etc/sudoers the line


Ctl-X to exit and Y to save




2. Download-Unzip-Install

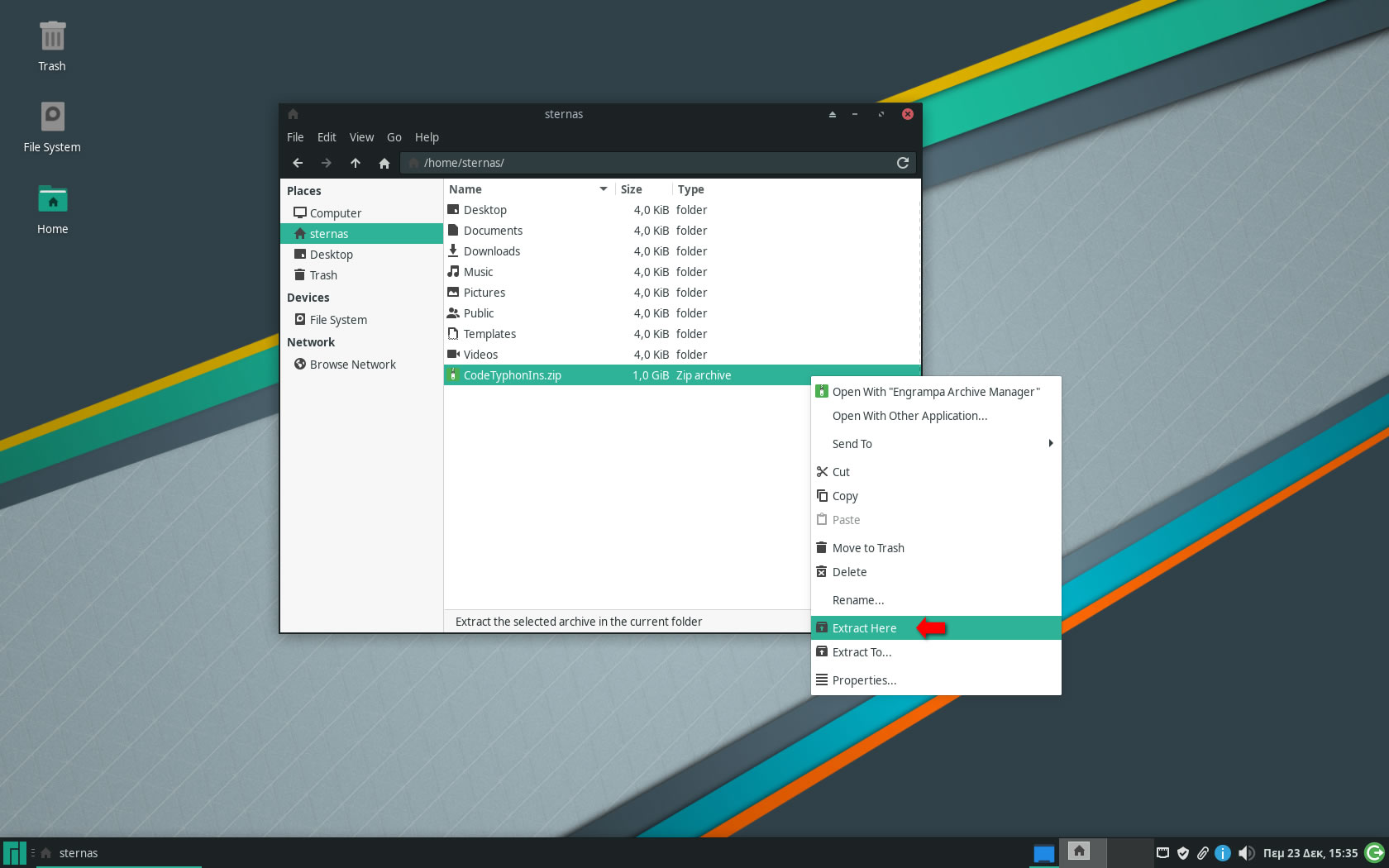

Download CodeTyphonIns.zip and unzip to your home directory

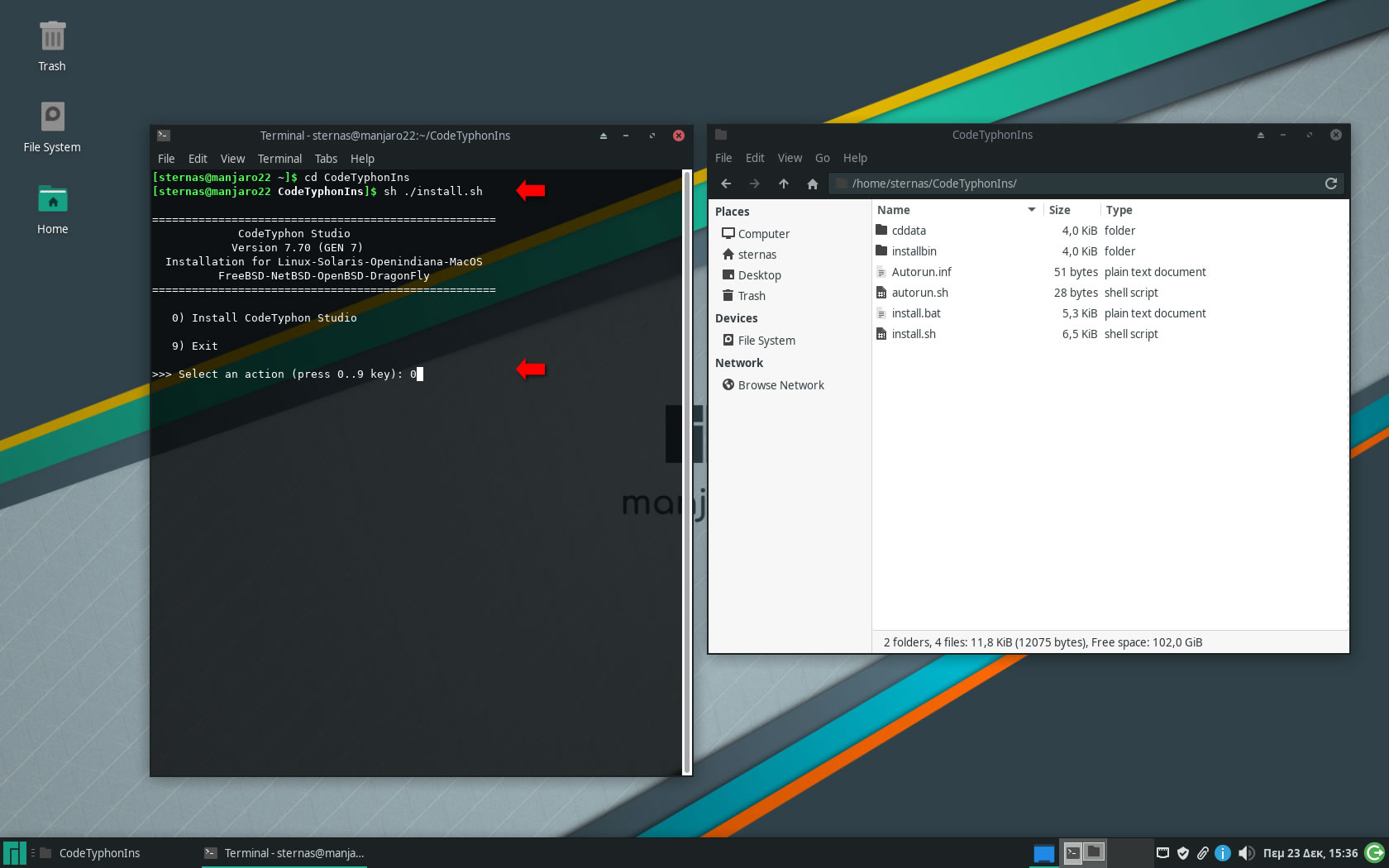

Open a terminal, and go to new CodeTyphonIns directory

cd CodeTyphonIns

Start CodeTyphon Installation with command

sh ./install.sh

Give zero "0" to Install CodeTyphon



3. Setup and Build (for GTK2)

After CT install you can start CTCenter or to continue with the open terminal

We don't select "MultiArch" option.

It's the first installation of CodeTyphon on this PC, so we install "system libraries" select "0".

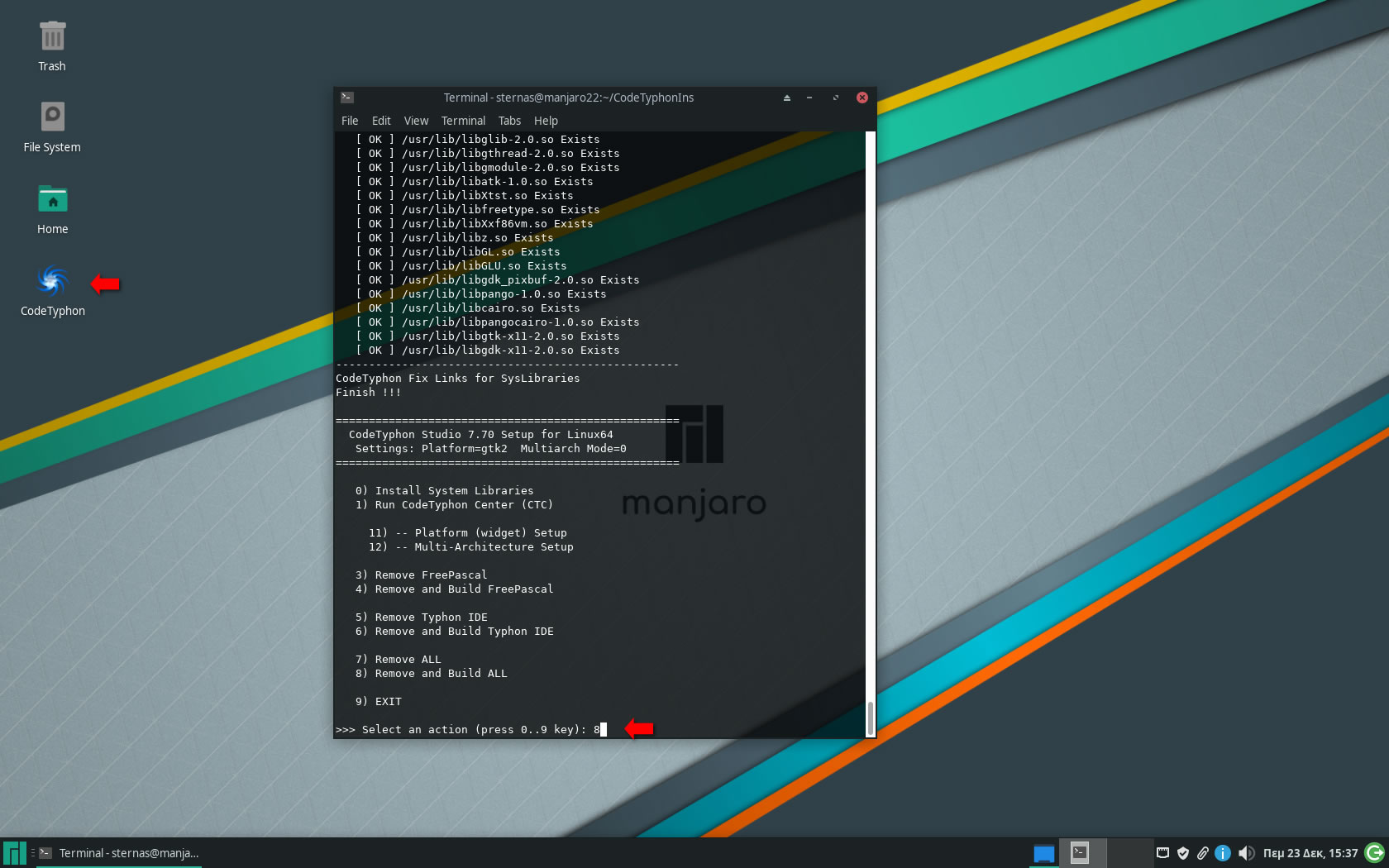

Select "8" to build all...

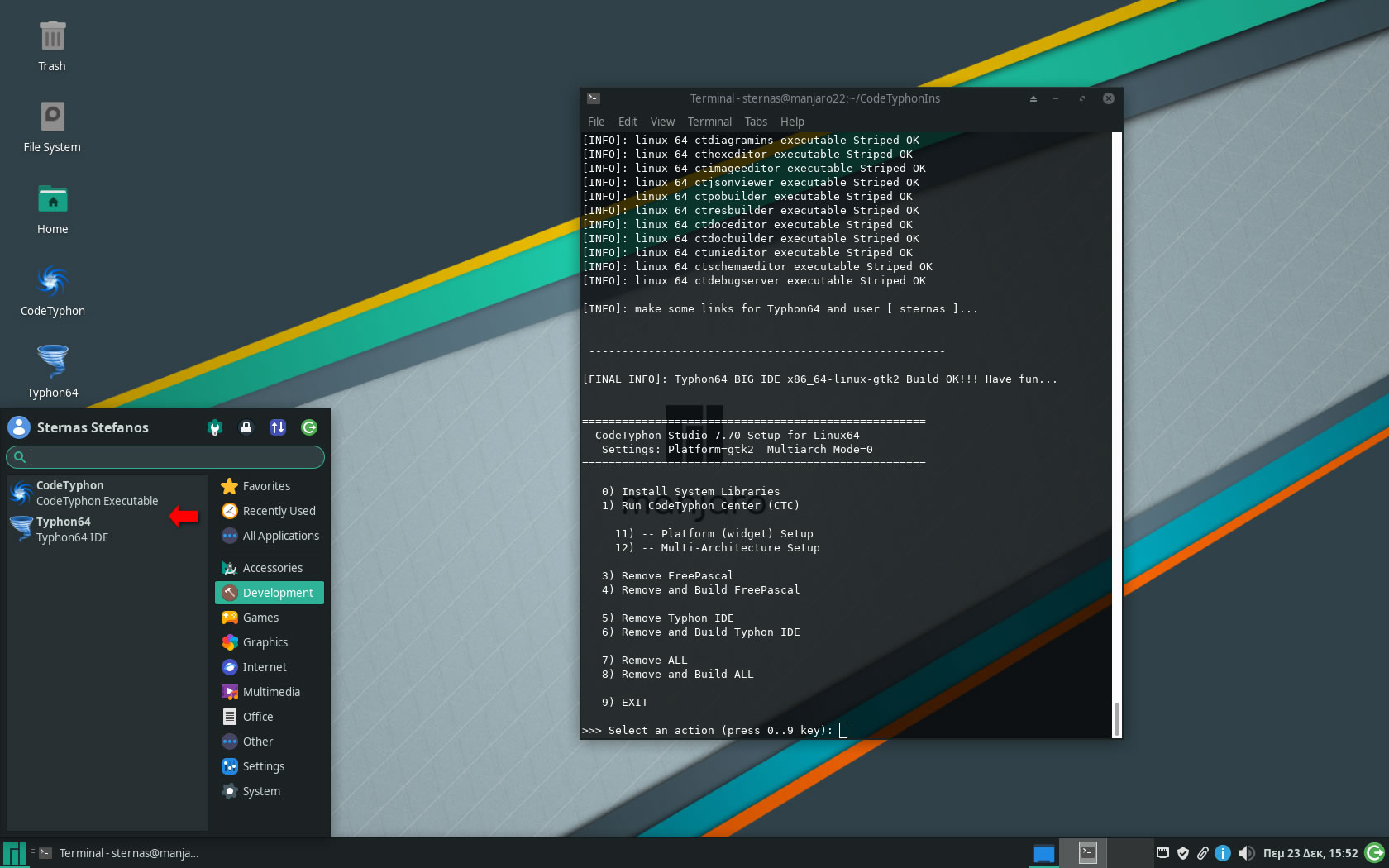

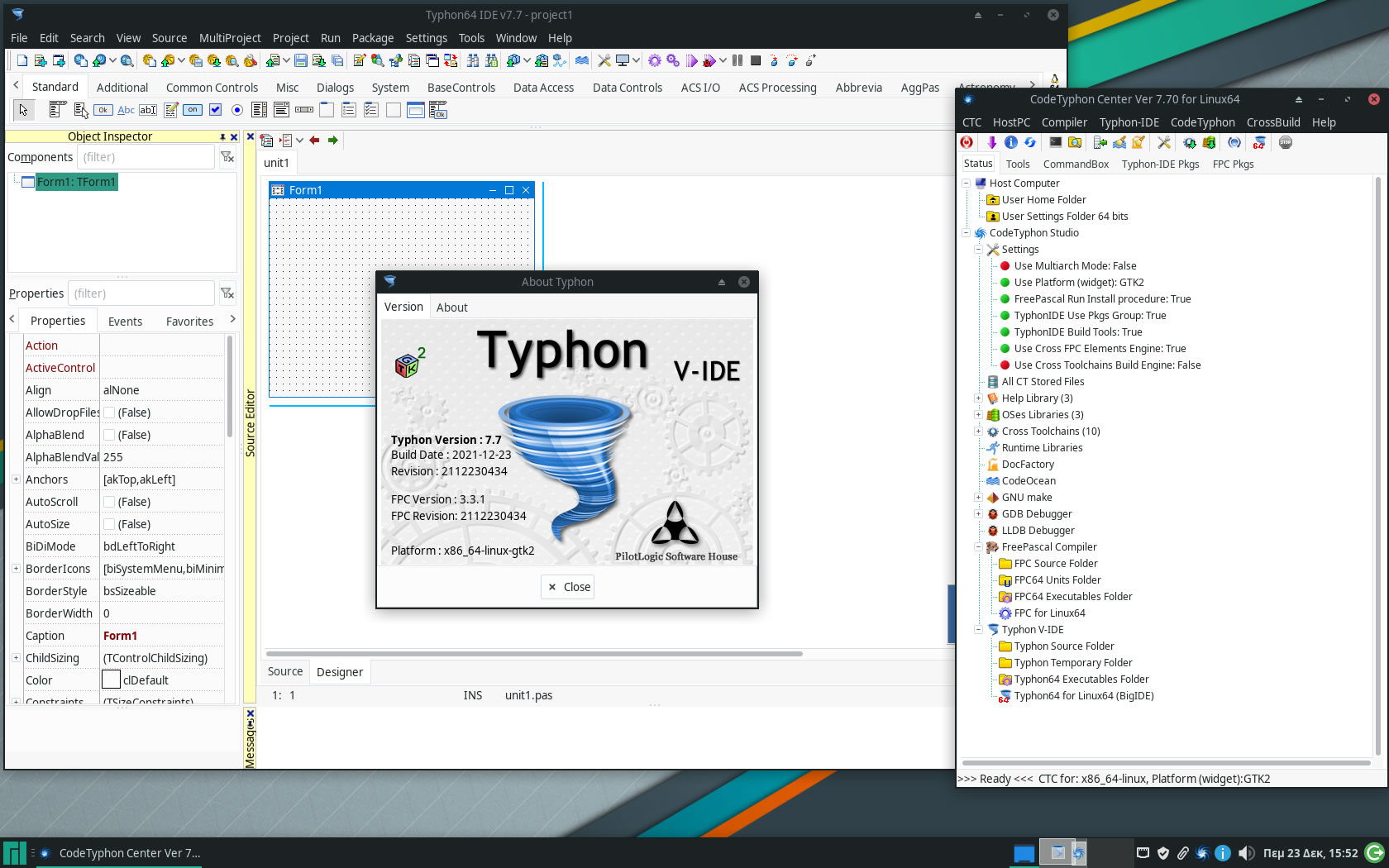

CTCenter and Typhon64 for GTK2, with ALL Docked Option (single Window)




4. Build Typhon IDE for QT5 (KDE5)

a) Switch Typhon IDE Host Platform to QT5

CodeTyphon Center => Setup Dialog

and select QT5 Platform

b) Only for the first time, install OS System Libraries

CodeTyphon Center =>HostPC=>"Install System Libraries for QT5"

c) Remove and Build Typhon IDE for new Platform (QT5)

CodeTyphon Center =>Typhon IDE=>"Remove and Build"

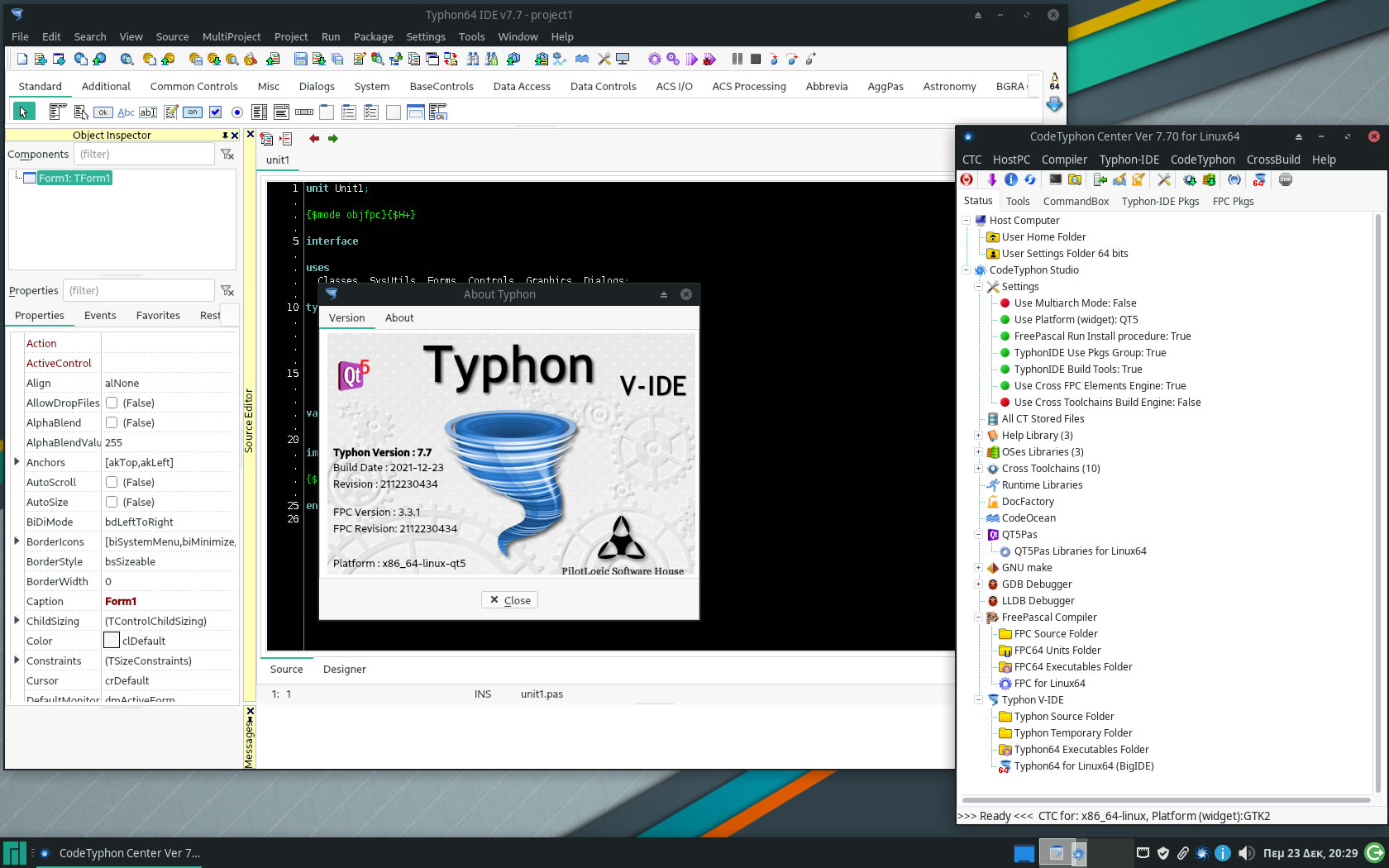

Typhon64 for QT5 (KDE 5) with ALL Docked Option (single Window)
