We test LAB CodeTyphon 7.70 on MXLinux 22.0

MX Linux it's a desktop-oriented Linux distribution based on Debian's "stable" branch, is a cooperative venture between the antiX and former MEPIS Linux communities.
Using Xfce as the default desktop, it is a mid-weight operating system designed to combine an elegant and efficient desktop with simple configuration, high stability, solid performance and medium-sized footprint.

More for MX Linux OS here dearth



System: Entry level PC with 1 CPU (4-Cores) / 8 Gbyte RAM / 120 Gbytes Hard Disk / 1680x1050 pixels Monitor
OS : MX Linux 22.0 64bits with xfce4 as frontend Desktop (MX-21_ahs_x64.iso)





1. OS things and stuff..


We install Xfce Desktop for this test





2. Preparation-Give "sudo" root privileges

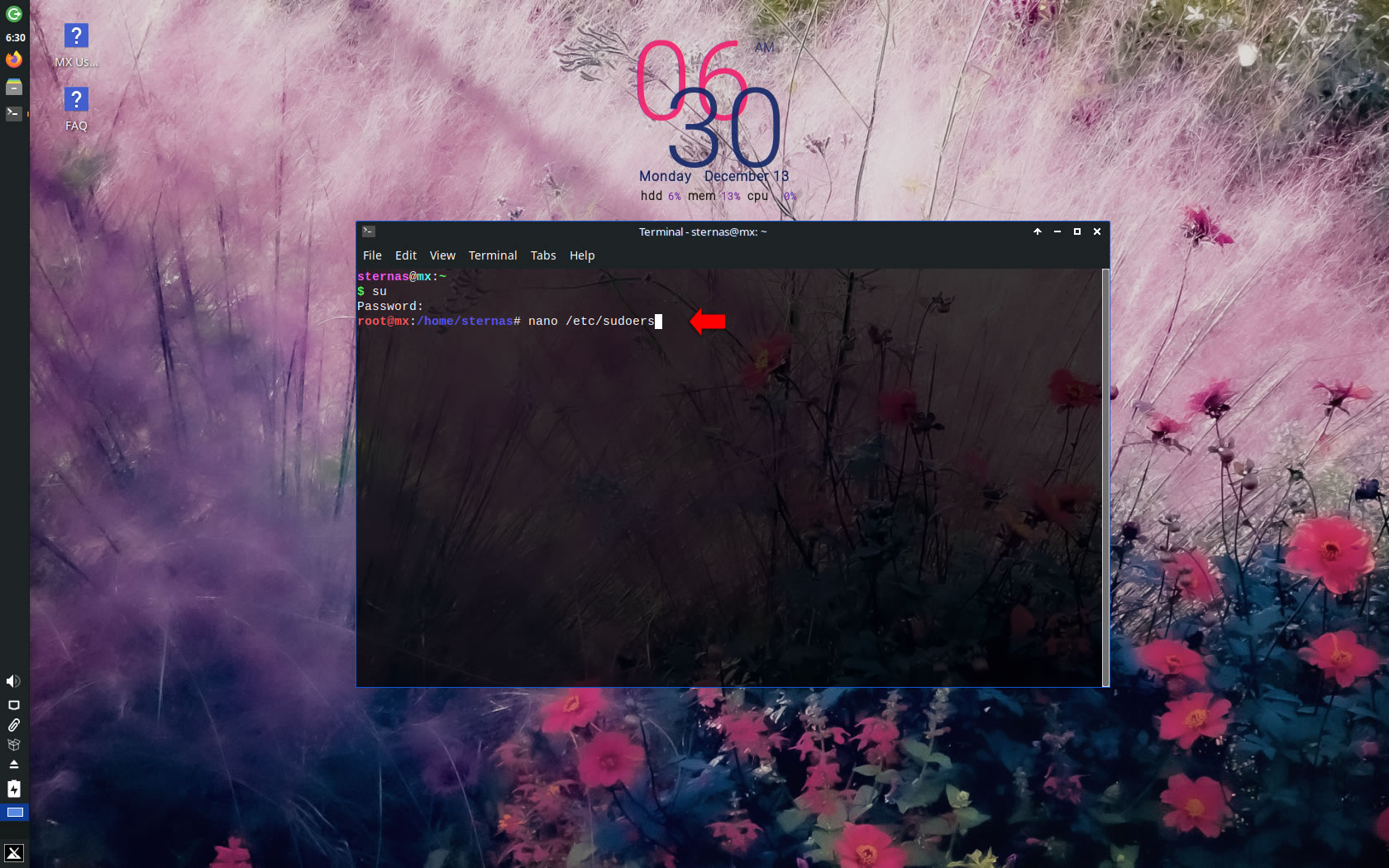

Open a terminal and exec

su

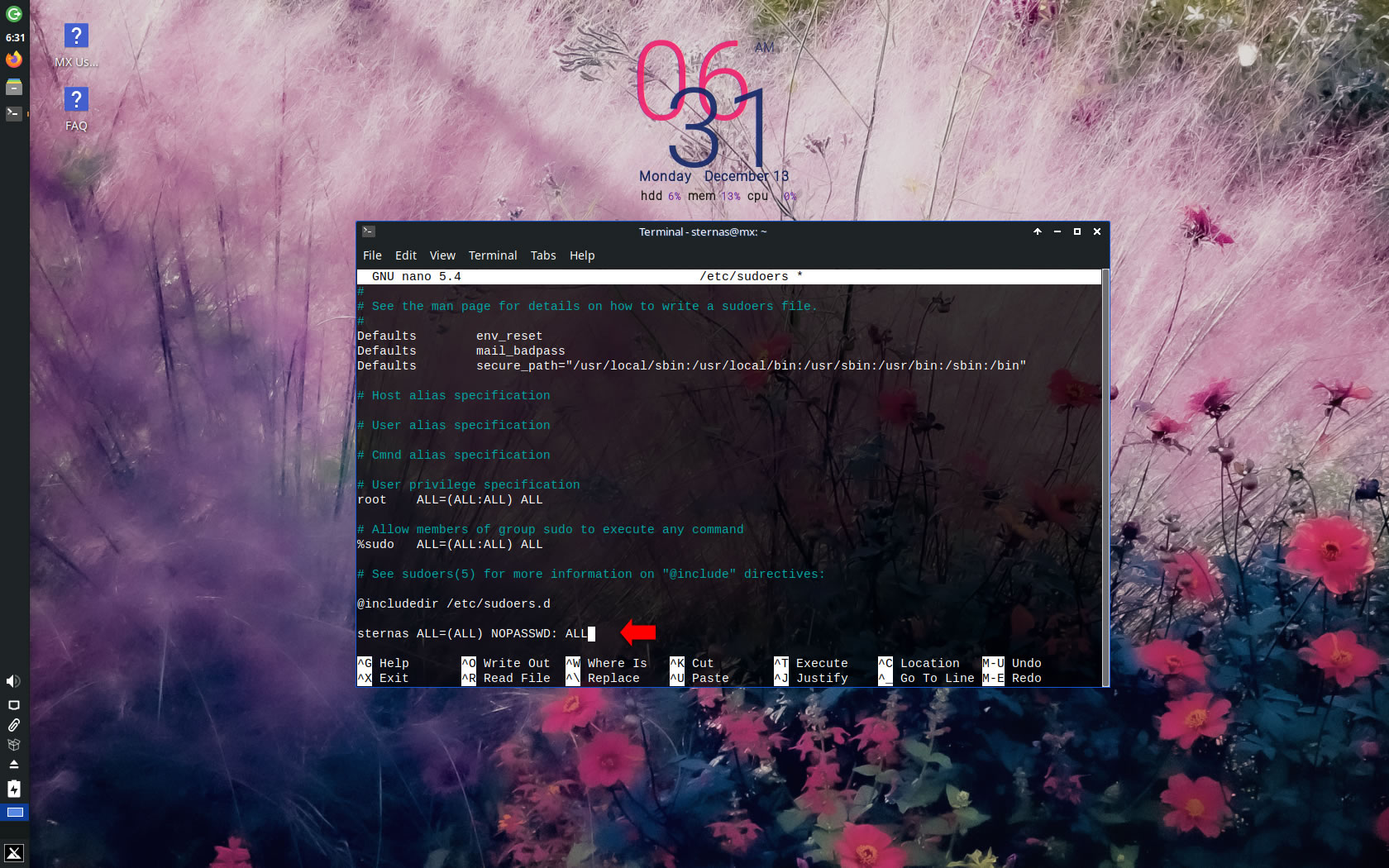

nano /etc/sudoers



add at the end of /etc/sudoers the line

username ALL=(ALL:ALL) NOPASSWD: ALL

Ctl-X to exit and Y to save







3. Download-Unzip-Install

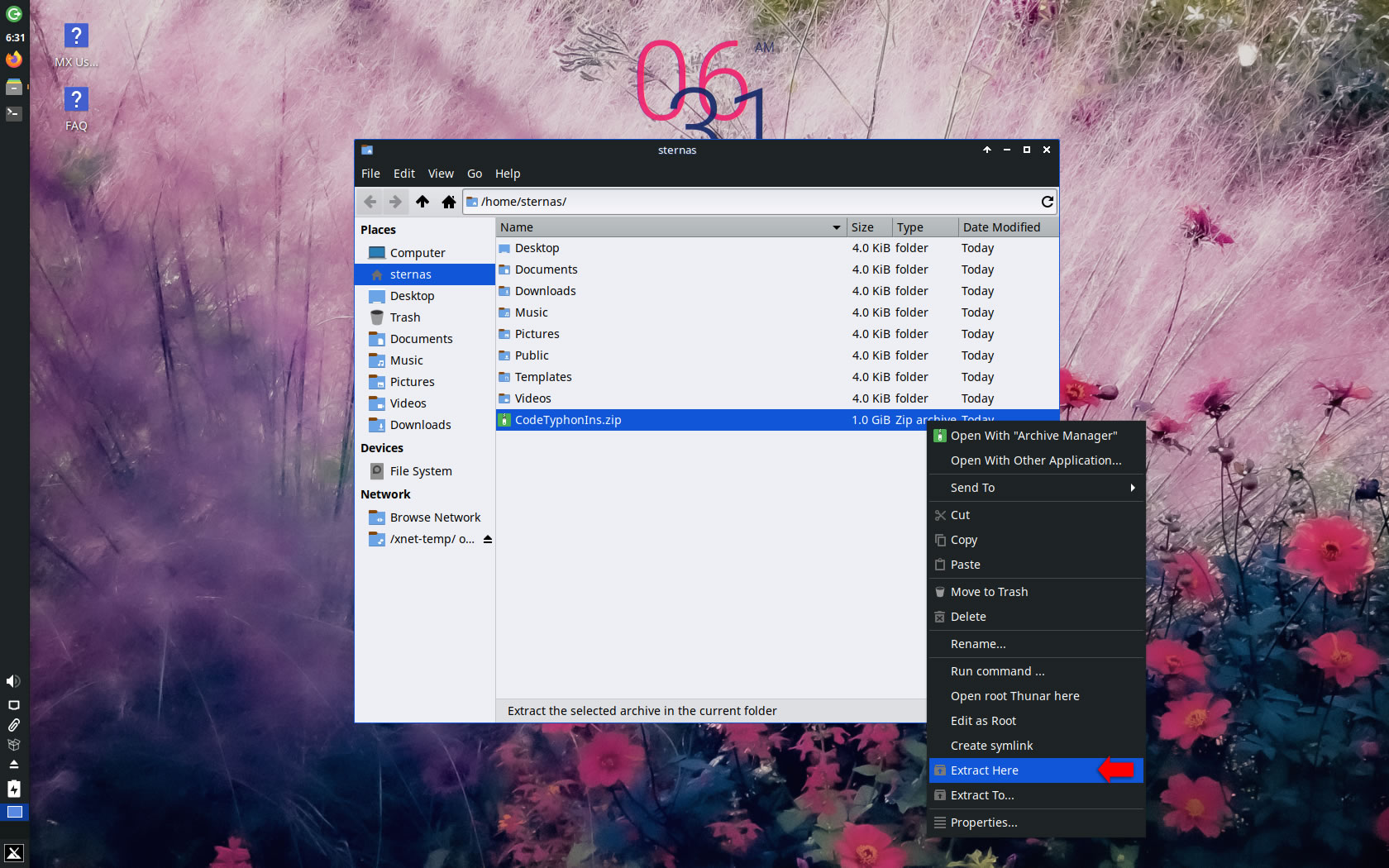

Download CodeTyphonIns.zip and unzip to your home directory



Open a terminal, and go to new CodeTyphonIns directory

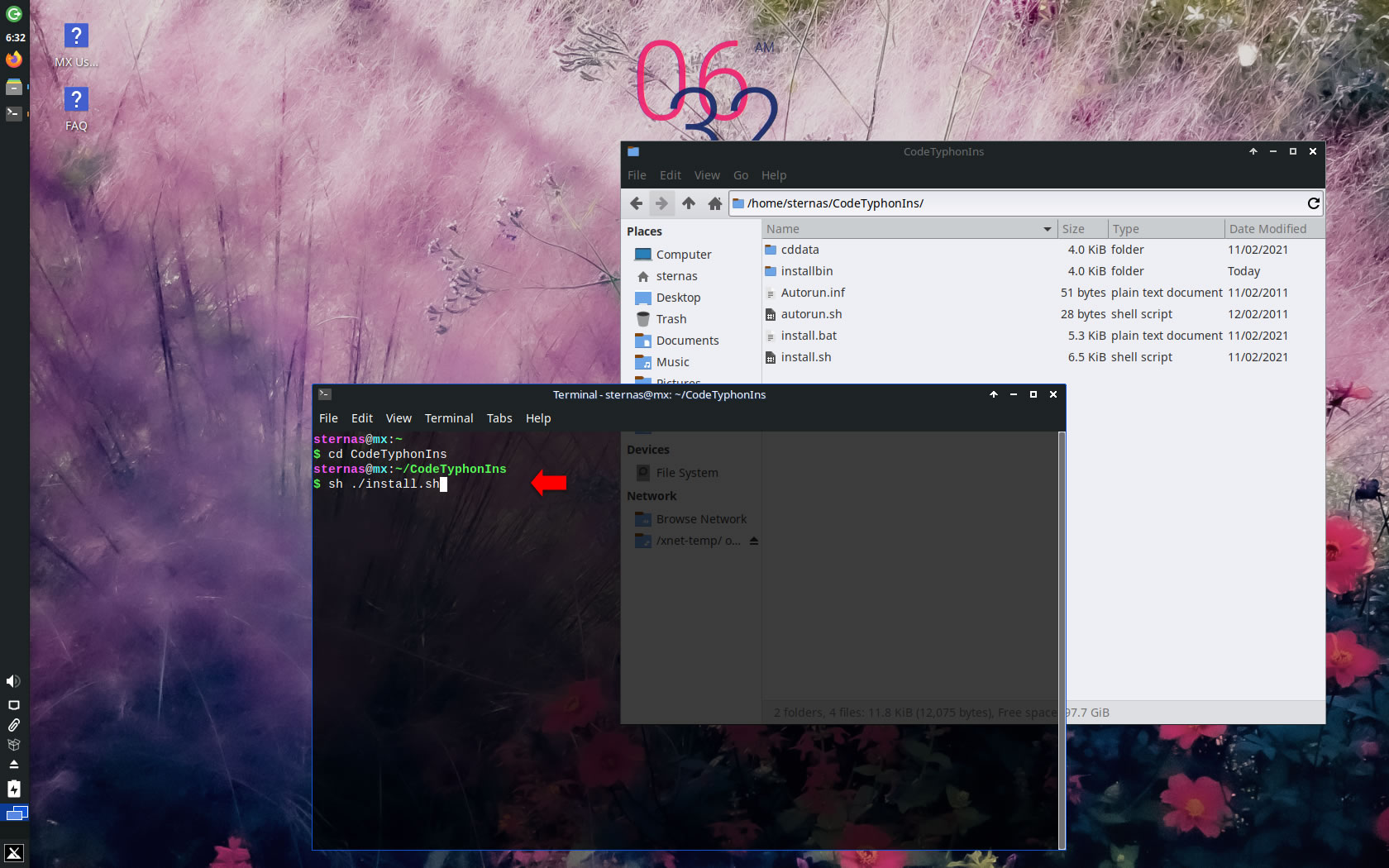

cd CodeTyphonIns

Start CodeTyphon Installation with command

sh ./install.sh

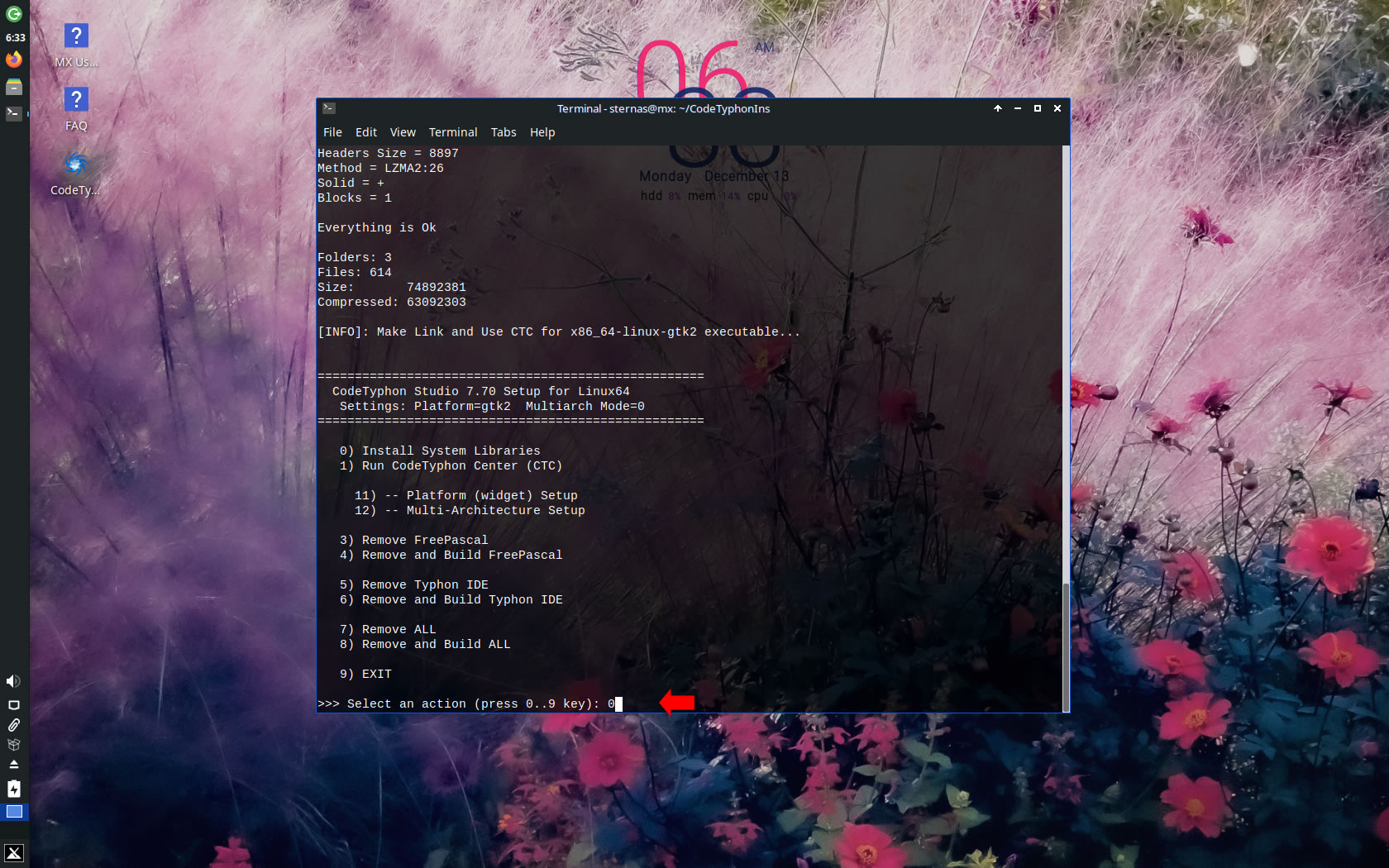

Give zero "0" to Install CodeTyphon







4. Setup and Build (GTK2)

After CT install you can start CTCenter or to continue with the open terminal

It's the first installation of CodeTyphon on this PC, so we install "system libraries" select "0".

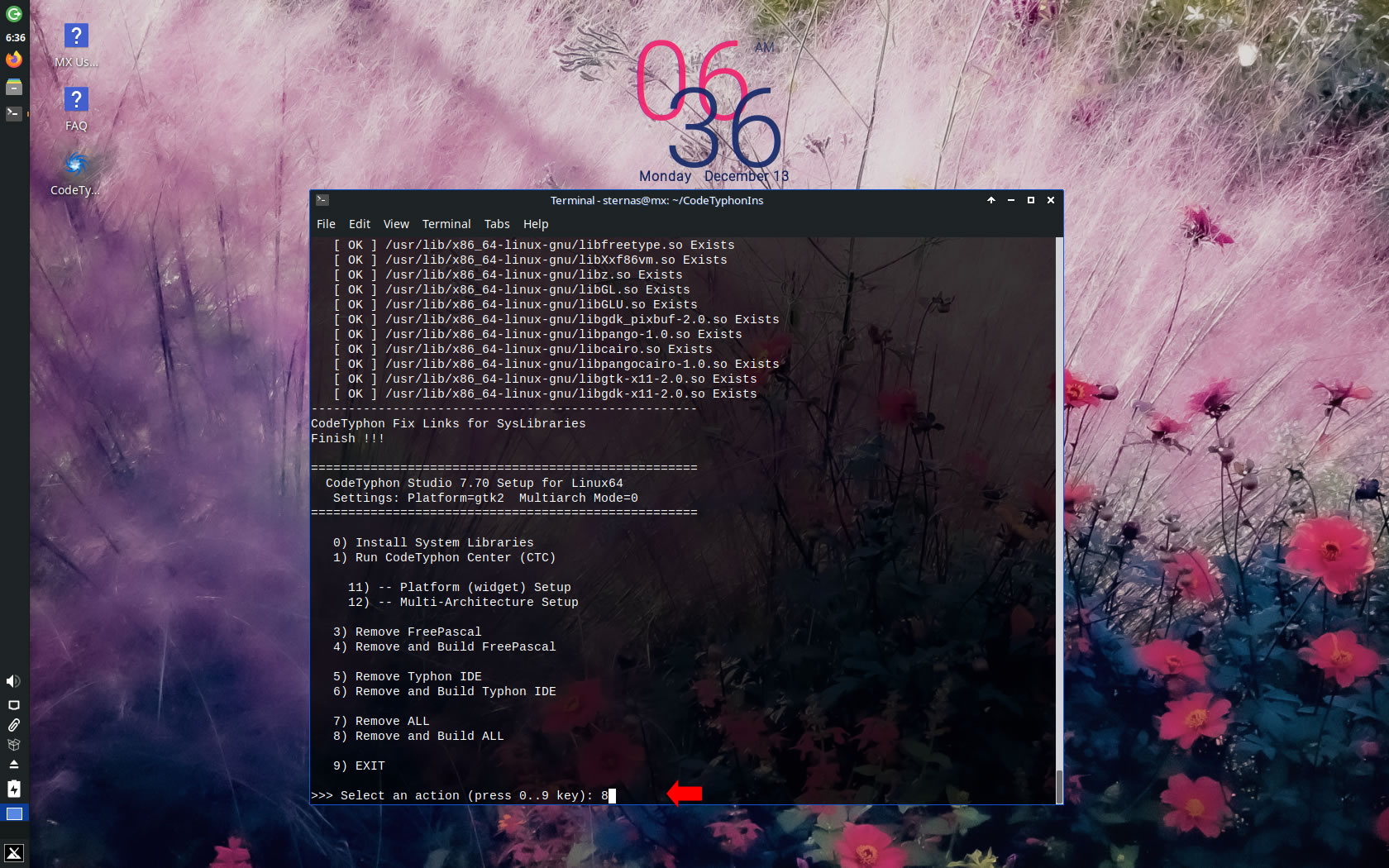

Select "8" to build all...

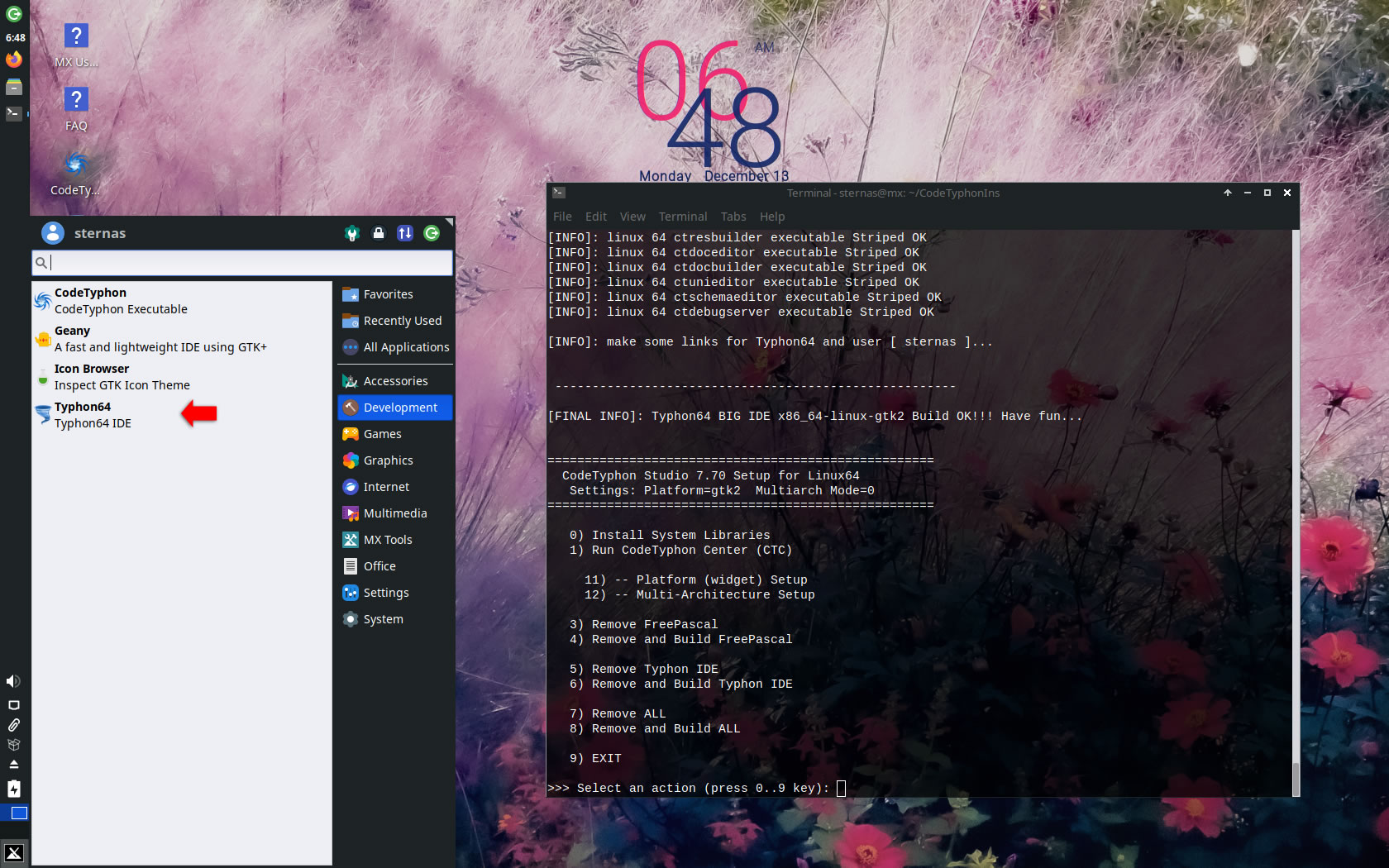

Finally

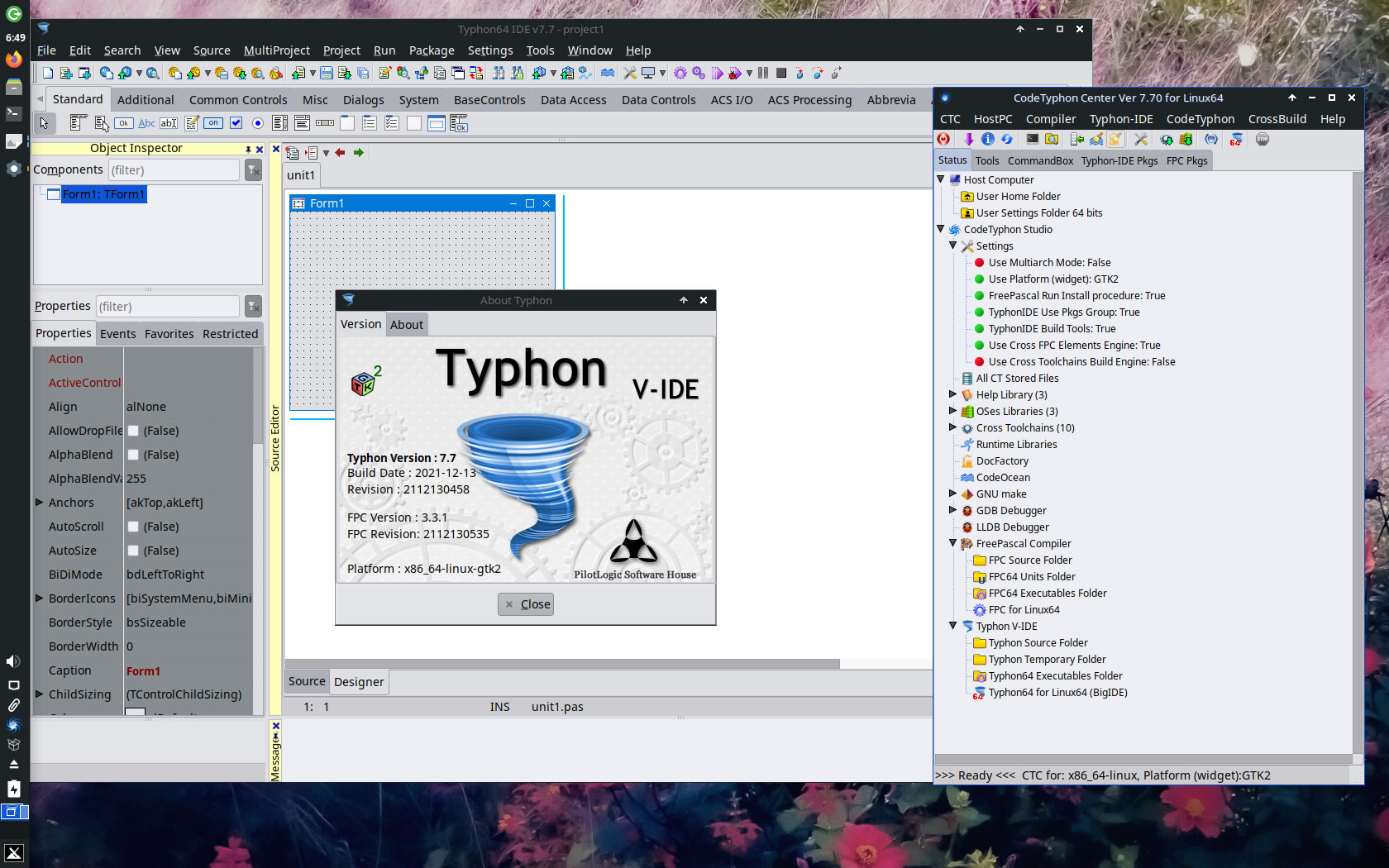

CTCenter, Typhon64 for GTK2, with ALL Docked Option (single Window)









5. Libraries tests (GTK2)

 Screens from some Libraries tests...

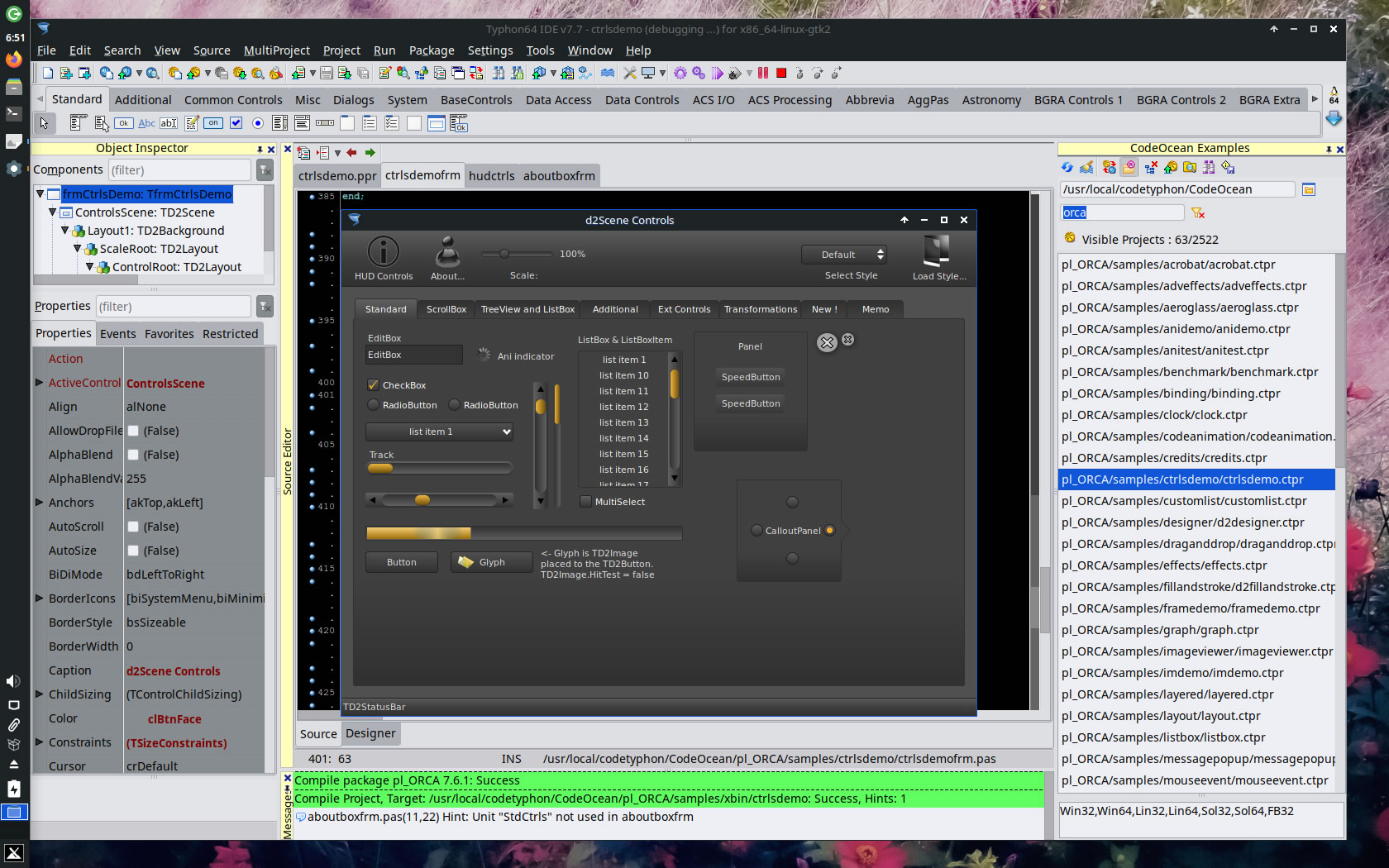

pl_ORCA



pl_ORCA3D

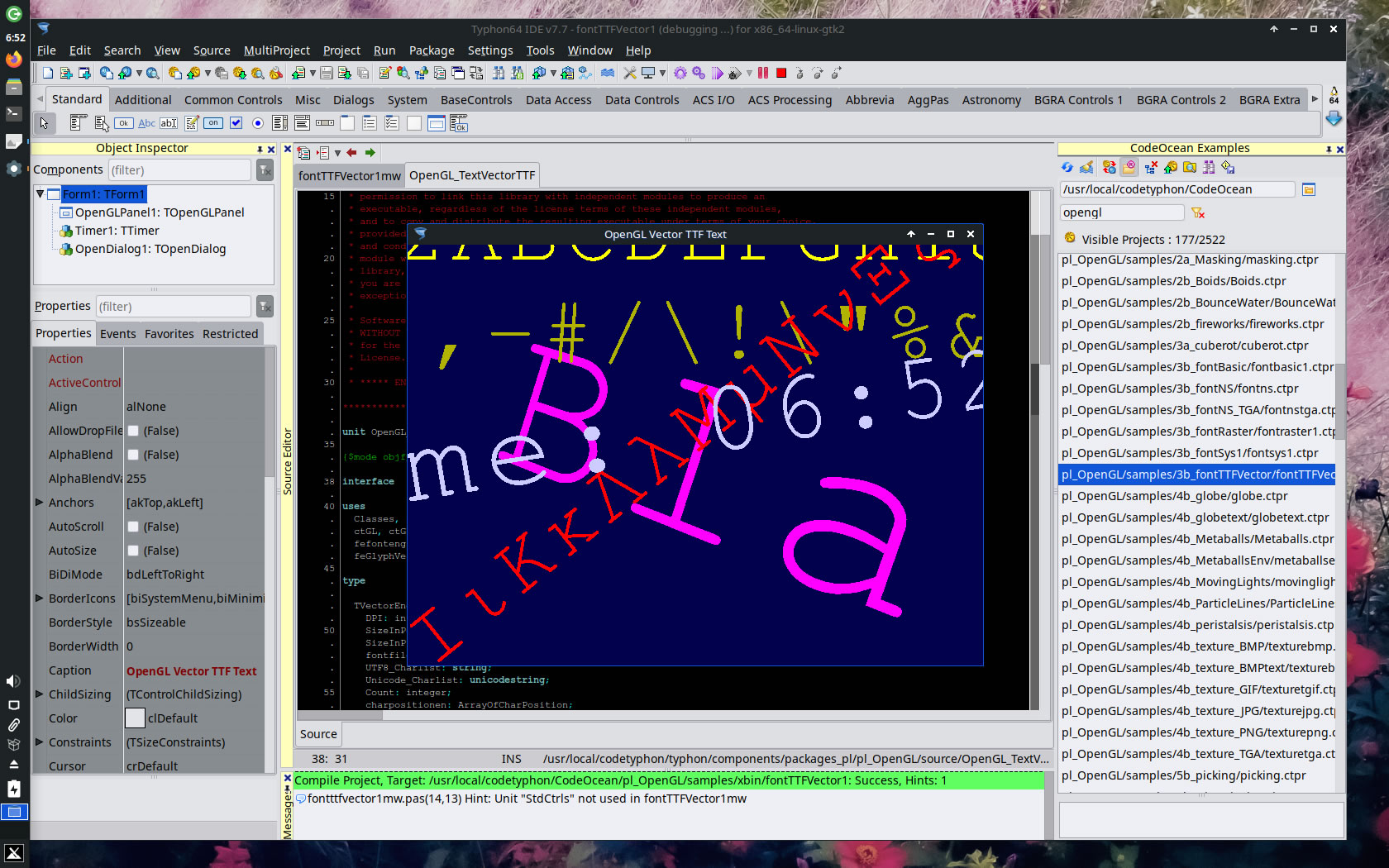

pl_OpenGL

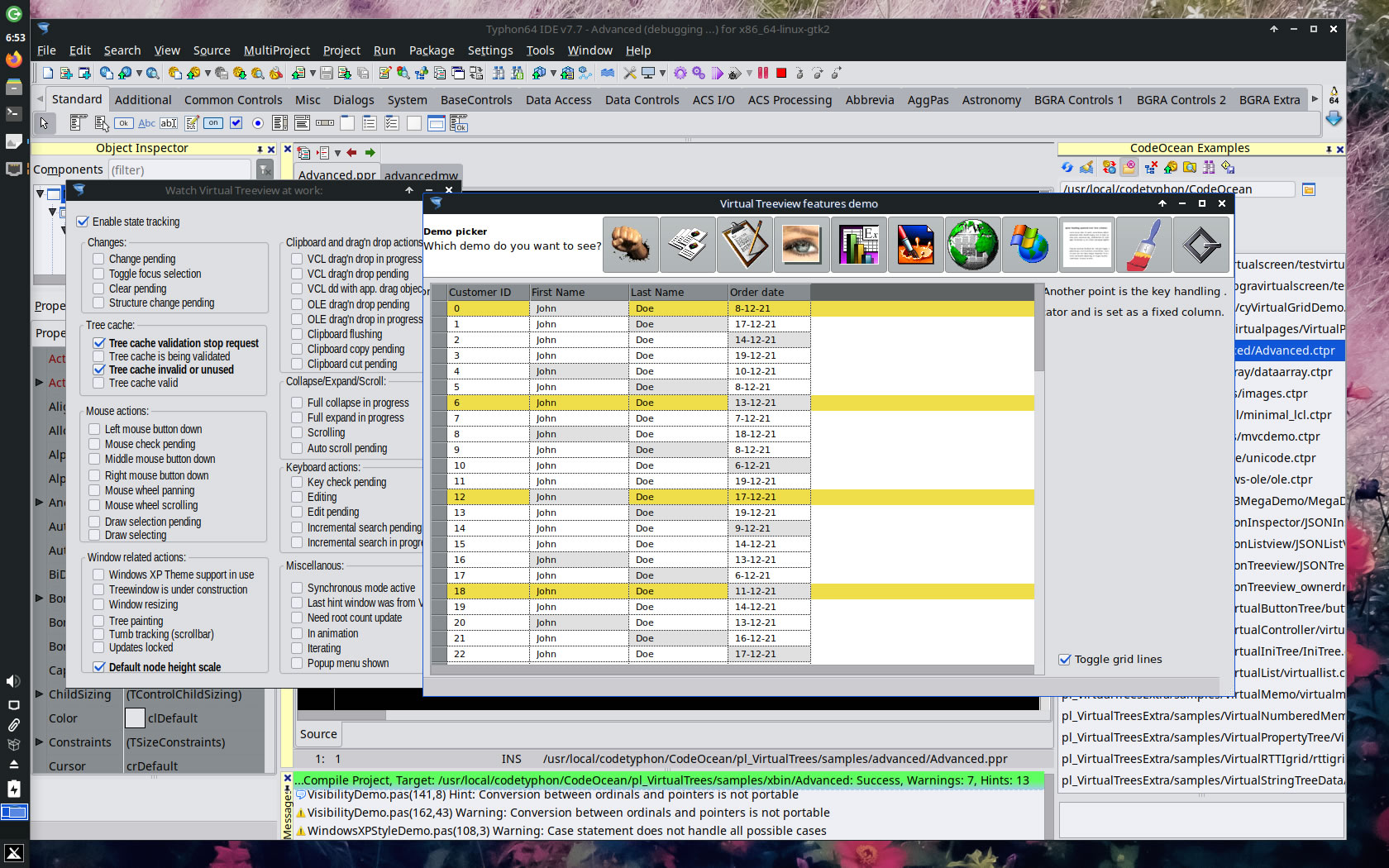

pl_VirtualTrees



pl_VirtualTreesExtra









6. Build Typhon IDE for QT5 (KDE5)

a) Switch Typhon IDE Host Platform to QT5

CodeTyphon Center => Setup Dialog

and select QT5 Platform

b) Only for the first time, install OS System Libraries

CodeTyphon Center =>HostPC=>"Install System Libraries for QT5"

c) Remove and Build Typhon IDE for new Platform (QT5)

CodeTyphon Center =>Typhon IDE=>"Remove and Build"



Finally

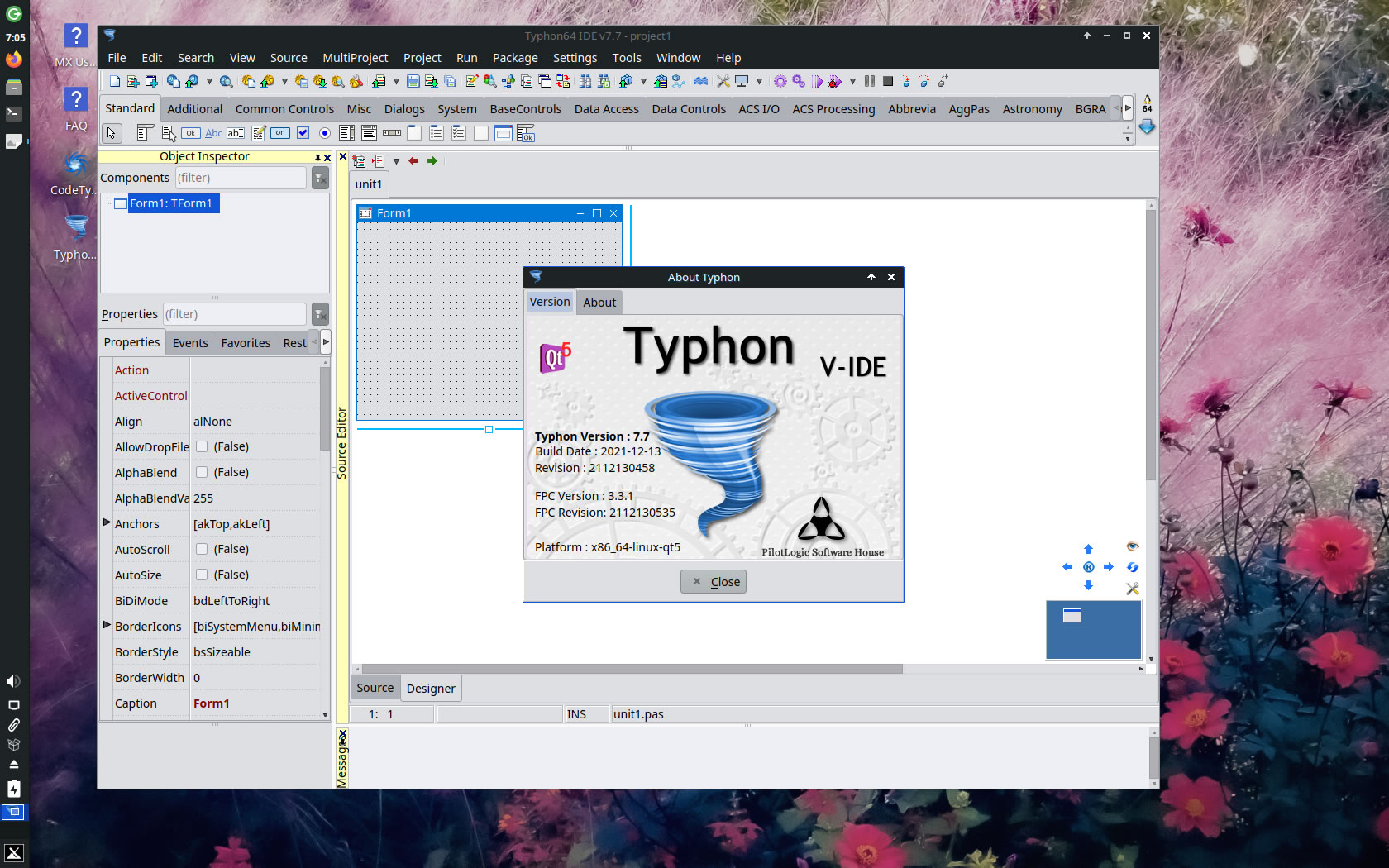

Typhon64 for QT5 (KDE 5) with ALL Docked Option (single Window)
