CodeTyphon MS Windows (XP, Vista, Win7, Win8.x and Win10) OS Development, discussions and problems
Question TRxDBGrid
- Adrijan
- Topic Author
- Offline
- New Member
-
Less
More
1 month 1 week ago #15491
by Adrijan
TRxDBGrid was created by Adrijan
Hi,

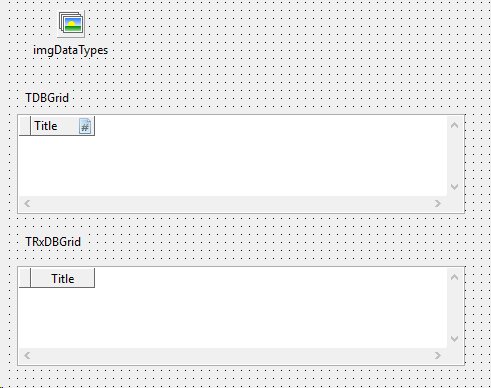

Images in TRxDBGrid Titles just won't show:
grdData.TitleImageList:=imgDataTypes;
grdData.Columns[0].Title.ImageIndex:=2;
This code works fine with TDBGrid. The same is in design state too.
I tried but cannot figure this out, although in both examples column titles descend from TGridColumnTitle...?
I'm using CT 7.30 on Windows 10.
Please help.
Images in TRxDBGrid Titles just won't show:
grdData.TitleImageList:=imgDataTypes;
grdData.Columns[0].Title.ImageIndex:=2;
This code works fine with TDBGrid. The same is in design state too.
I tried but cannot figure this out, although in both examples column titles descend from TGridColumnTitle...?
I'm using CT 7.30 on Windows 10.
Please help.
Attachments:
Please Log in or Create an account to join the conversation.
- Matis A.
-
- Offline
- Moderator
-
1 month 1 week ago - 1 month 1 week ago #15493
by Matis A.
PilotLogic Core Programmer
Replied by Matis A. on topic TRxDBGrid
Please, a sample project with the problem, for LAB testing.
PilotLogic Core Programmer
Last edit: 1 month 1 week ago by Matis A..
Please Log in or Create an account to join the conversation.
- Adrijan
- Topic Author
- Offline
- New Member
-
Less
More
- Posts: 7
- Thank you received: 0
1 month 1 week ago #15494
by Adrijan
Replied by Adrijan on topic TRxDBGrid
Attachments:
Please Log in or Create an account to join the conversation.
- Matis A.
-
- Offline
- Moderator
-
1 month 1 week ago #15496
by Matis A.
PilotLogic Core Programmer
Replied by Matis A. on topic TRxDBGrid
Thanks, please give us time to test and report
PilotLogic Core Programmer
Please Log in or Create an account to join the conversation.
- Matis A.
-
- Offline
- Moderator
-
- Adrijan
- Topic Author
- Offline
- New Member
-
Less
More
- Posts: 7
- Thank you received: 0
1 month 1 week ago #15498
by Adrijan
Replied by Adrijan on topic TRxDBGrid
The project does not work or cannot figure out why TRxDbgrid refuses to show images in Titles?
Please Log in or Create an account to join the conversation.
- Matis A.
-
- Offline
- Moderator
-
1 month 1 week ago #15499
by Matis A.
PilotLogic Core Programmer
Replied by Matis A. on topic TRxDBGrid
TRxDbgrid refuses to show images
someone must put code to TRxDbgrid
someone must put code to TRxDbgrid
PilotLogic Core Programmer
Please Log in or Create an account to join the conversation.
- Adrijan
- Topic Author
- Offline
- New Member
-
Less
More
- Posts: 7
- Thank you received: 0
1 month 6 days ago #15500
by Adrijan
Replied by Adrijan on topic TRxDBGrid
Yes, the code is missing.
Since I use my classes anyway, this is the way I resolved it for my purposes:
type
TLunRxDBGrid = class(TRxDBGrid)
public
procedure DrawCell(aCol, aRow: integer; aRect: TRect; aState: TGridDrawState); override;
procedure TLunRxDBGrid.DrawCell(aCol, aRow: integer; aRect: TRect; aState: TGridDrawState);
var xbitmap:TBitMap;
xindex:integer;
begin
if (aRow = 0) and (aCol > 0) and Assigned(TitleImageList) then begin
inherited DrawCell(aCol, aRow, aRect, aState);
try
xbitmap := TBitmap.Create;
try
xindex:=Self.Columns[aCol].Title.ImageIndex;
except
xindex:=-1;
end;
if xindex > -1 then begin
TitleImageList.GetBitmap(xindex,xbitmap);
Canvas.Draw(aRect.Left+1,aRect.Top+1,xbitmap);
end;
finally
xbitmap.Free;
end;
end else begin
inherited DrawCell(aCol, aRow, aRect, aState);
end;
end;
I know this is far from correct and generic solution, but I pasted it here in case anybody needs it as a quick fix.
Sir, thank you for your effort.
Since I use my classes anyway, this is the way I resolved it for my purposes:
type
TLunRxDBGrid = class(TRxDBGrid)
public
procedure DrawCell(aCol, aRow: integer; aRect: TRect; aState: TGridDrawState); override;
procedure TLunRxDBGrid.DrawCell(aCol, aRow: integer; aRect: TRect; aState: TGridDrawState);
var xbitmap:TBitMap;
xindex:integer;
begin
if (aRow = 0) and (aCol > 0) and Assigned(TitleImageList) then begin
inherited DrawCell(aCol, aRow, aRect, aState);
try
xbitmap := TBitmap.Create;
try
xindex:=Self.Columns[aCol].Title.ImageIndex;
except
xindex:=-1;
end;
if xindex > -1 then begin
TitleImageList.GetBitmap(xindex,xbitmap);
Canvas.Draw(aRect.Left+1,aRect.Top+1,xbitmap);
end;
finally
xbitmap.Free;
end;
end else begin
inherited DrawCell(aCol, aRow, aRect, aState);
end;
end;
I know this is far from correct and generic solution, but I pasted it here in case anybody needs it as a quick fix.
Sir, thank you for your effort.
Please Log in or Create an account to join the conversation.
- Matis A.
-
- Offline
- Moderator
-
1 month 6 days ago #15509
by Matis A.
PilotLogic Core Programmer
Replied by Matis A. on topic TRxDBGrid
Thanks
we will try to put your code to LAB CT
we will try to put your code to LAB CT
