8 years 3 weeks ago #2213 by Aleksandar
Replied by Aleksandar on topic [LAB] Cindy components

RockyLuck wrote: @Viking: your assumption that the message to catch was CN_DRAWITEM was understandable, probably this should have happened, but it was not correct. This is the code for handling the WM_DRAWITEM in function WIndowProc (file Win32callback.inc):


I just had another quick look at pl_Cindy package.

More CN* and CM* messages are incorrectly translated as LM* messages! Some inherited calls that are required are commented out. I would start from there.

I installed CT on Windows 7 x64 in VirtualBox so I can check some of the samples there.

Would you please compile some of the samples included in CodeOcean with Delphi and post some screenshots? I need to see how those components should look when work properly in order to try to fix them.

Please Log in or Create an account to join the conversation.

  • RockyLuck
  • Visitor
  • Visitor
8 years 3 weeks ago - 8 years 3 weeks ago #2214 by RockyLuck
Replied by RockyLuck on topic [LAB] Cindy components

viking wrote: More CN* and CM* messages are incorrectly translated as LM* messages!

They are only translated "incorrectly" because Lazarus does not correctly translate them into CN messages. That's no fault on behalf of the pl_Cindy package.

This is the image of the cyAdvButton demo when compiled with Delphi 7:



Hope this helps :unsure:
Last edit: 8 years 3 weeks ago by RockyLuck.

Please Log in or Create an account to join the conversation.

More
8 years 3 weeks ago - 8 years 3 weeks ago #2220 by Aleksandar
Replied by Aleksandar on topic [LAB] Cindy components

RockyLuck wrote:

viking wrote: More CN* and CM* messages are incorrectly translated as LM* messages!

They are only translated "incorrectly" because Lazarus does not correctly translate them into CN messages. That's no fault on behalf of the pl_Cindy package.


I was talking about wrong code conversions done by someone from CT team while converting Cindy to Lazarus.

I was talking about things like this:

For example in cyBaseSpeedButton.pas

there is
procedure CMMouseEnter(var Message: TLMessage); message LM_MOUSEENTER;
instead of
procedure CMMouseEnter(var Message: TLMessage); message CM_MOUSEENTER;

Also
procedure CMMouseLeave(var Message: TLMessage); message LM_MOUSELEAVE;
instead of
procedure CMMouseLeave(var Message: TLMessage); message CM_MOUSELEAVE;

In
procedure TcyBaseSpeedButton.CMMouseEnter(var Message: TLMessage);

Inherited; is commented, but it is needed there.

... and so on.

RockyLuck wrote: This is the image of the cyAdvButton demo when compiled with Delphi 7:



Hope this helps :unsure:


Thank you. That is what I was looking for.
Last edit: 8 years 3 weeks ago by Aleksandar.

Please Log in or Create an account to join the conversation.

  • Sternas Stefanos
  • Sternas Stefanos's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
More
8 years 3 weeks ago #2223 by Sternas Stefanos
Replied by Sternas Stefanos on topic [LAB] Cindy components
Thanks Sir
we will fix these problems

PilotLogic Architect and Core Programmer

Please Log in or Create an account to join the conversation.

More
8 years 3 weeks ago #2225 by Aleksandar
Replied by Aleksandar on topic [LAB] Cindy components

sternas wrote: Thanks Sir
we will fix these problems


I do no use those components, so I only write about things that I noticed while checking what is done. I also would suggest to convert latest version, since I also noticed that this is not the latest version.

I am not sure that those changes that I mentioned will make all components work like in Delphi, but I hope that at least some of them will start to work better (or even as they planed to work).

Please Log in or Create an account to join the conversation.

More
8 years 3 weeks ago #2230 by Mauricio
Replied by Mauricio on topic [LAB] Cindy components
Cindy v5.03 released!

Added TcyBook component:
https://sourceforge.net/projects/tcycomponents/screenshots/328505
Virtual book with turn page effect (perfect for android devices), page rendering etc ...

Also added TcyBook and TcyDebug demo.

Mauricio

Please Log in or Create an account to join the conversation.

  • Sternas Stefanos
  • Sternas Stefanos's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
More
8 years 3 weeks ago - 8 years 3 weeks ago #2233 by Sternas Stefanos
Replied by Sternas Stefanos on topic [LAB] Cindy components

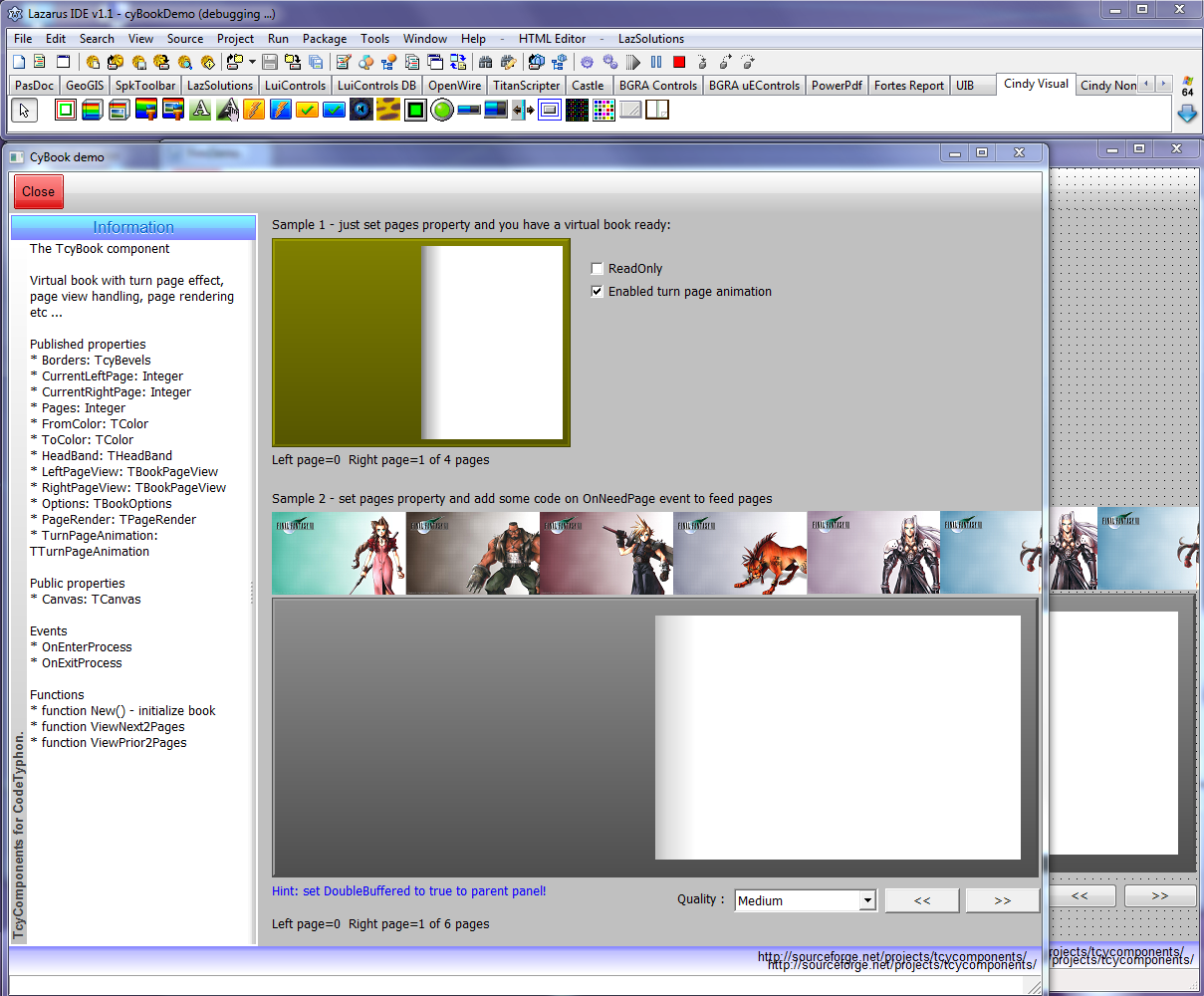

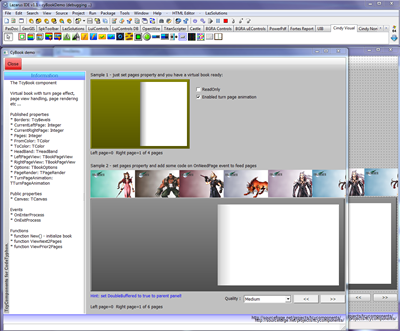

Thanks Sir
We port ver 5.0.3 on windows
now we must solve some graphic problems (cyGraphics.pas)
more news later...




and large image

PilotLogic Architect and Core Programmer
Attachments:
Last edit: 8 years 3 weeks ago by Sternas Stefanos.

Please Log in or Create an account to join the conversation.

  • Sternas Stefanos
  • Sternas Stefanos's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
More
8 years 3 weeks ago #2234 by Sternas Stefanos
Replied by Sternas Stefanos on topic [LAB] Cindy components

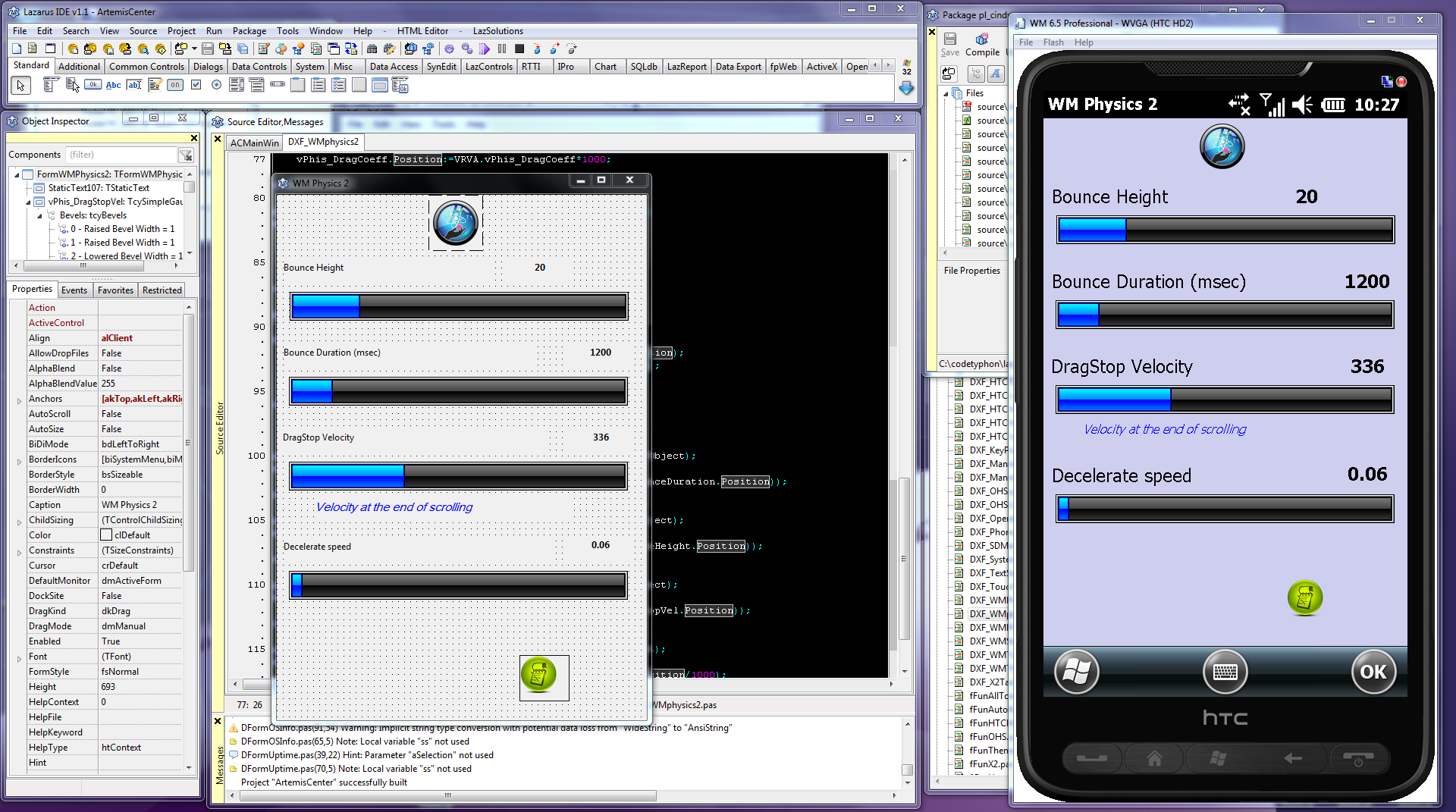

Port of ver 5.0.3 on Wince finish
(CodeTyphon crossbuild Ability)
Emulator with Windows Mobile 6.5.3





and big image

PilotLogic Architect and Core Programmer
Attachments:

Please Log in or Create an account to join the conversation.

  • Sternas Stefanos
  • Sternas Stefanos's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
More
8 years 3 weeks ago - 8 years 3 weeks ago #2235 by Sternas Stefanos
Replied by Sternas Stefanos on topic [LAB] Cindy components

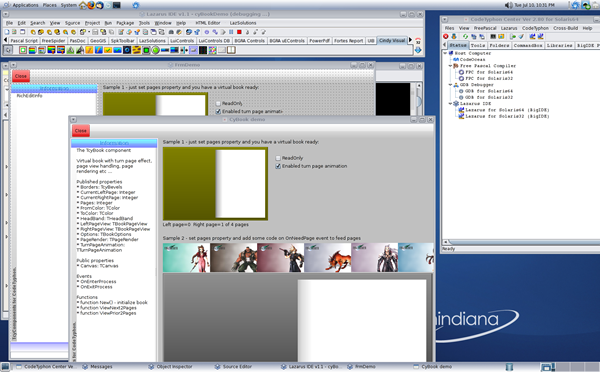

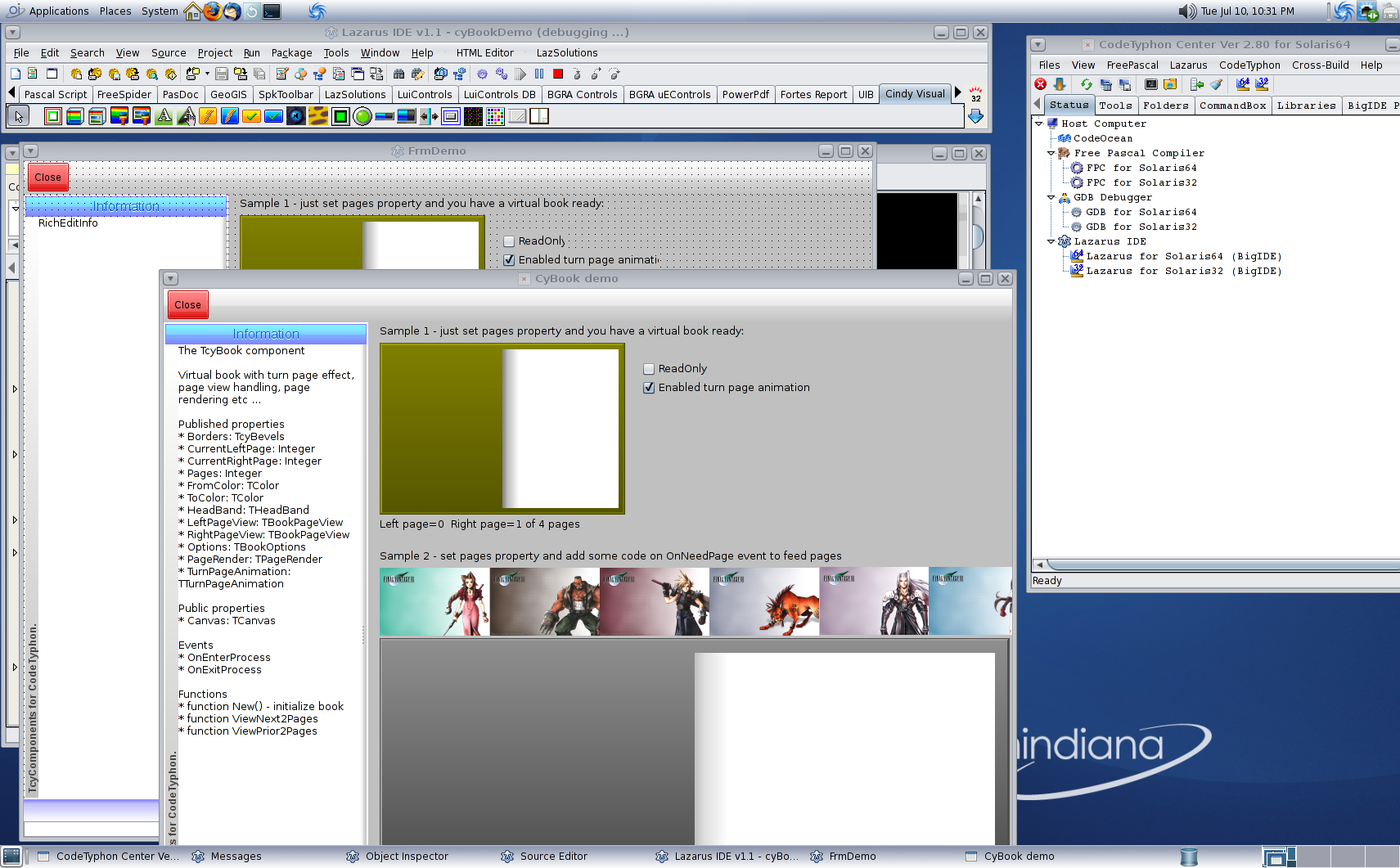

Port of ver 5.0.3 on Solaris/OpenIndiana 64 finish

CodeTyphon Studio Power...
tomorrow Linux and FreeBSD ports




and big image

PilotLogic Architect and Core Programmer
Attachments:
Last edit: 8 years 3 weeks ago by Sternas Stefanos.

Please Log in or Create an account to join the conversation.

More
8 years 3 weeks ago #2236 by Felix Sanchez
Replied by Felix Sanchez on topic [LAB] Cindy components
what are the ETA for 2.80?

Please Log in or Create an account to join the conversation.

  • Sternas Stefanos
  • Sternas Stefanos's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
More
8 years 3 weeks ago #2237 by Sternas Stefanos
Replied by Sternas Stefanos on topic [LAB] Cindy components
Sir
ETA for ver 2.80, 5-6 days
if all lab tests are OK

PilotLogic Architect and Core Programmer

Please Log in or Create an account to join the conversation.

  • RockyLuck
  • Visitor
  • Visitor
8 years 3 weeks ago #2240 by RockyLuck
Replied by RockyLuck on topic [LAB] Cindy components

sternas wrote: Sir
ETA for ver 2.80, 5-6 days
if all lab tests are OK



1. What about the glyph problem for some buttons as reported in this thread?

2. Can you tell which Cindy components will only work on Windows systems?

Thanks :)

Please Log in or Create an account to join the conversation.

  • Sternas Stefanos
  • Sternas Stefanos's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
More
8 years 3 weeks ago #2242 by Sternas Stefanos
Replied by Sternas Stefanos on topic [LAB] Cindy components
Sir
Our opinion is that, these are small problems.

Please don't forget that
CodeTyphon Studio is a free project
and it's not a company product, we don't have customers...

We have friends with the same passion: Pascal Programming
we have friends with the same vision:
to create a Pascal Programming Platform (CT),
which will be the most powerful Programming Studio on this planet
And we also believe it's NOT a dream anymore...

With this philosophy, some errors will exist.
and we can work together to solve these issues.

Have fun...

PilotLogic Architect and Core Programmer

Please Log in or Create an account to join the conversation.

More
8 years 3 weeks ago #2243 by Felix Sanchez
Replied by Felix Sanchez on topic [LAB] Cindy components
Thank's by all

If I remenber well I use Pascal the first time with delphi 2
I try to help you sometime in the future

Please Log in or Create an account to join the conversation.

  • RockyLuck
  • Visitor
  • Visitor
8 years 3 weeks ago #2246 by RockyLuck
Replied by RockyLuck on topic [LAB] Cindy components

sternas wrote: Sir
Our opinion is that, these are small problems.

Please don't forget that
CodeTyphon Studio is a free project
and it's not a company product, we don't have customers...


I understand that. The questions were not meant as criticism. They were just questions ;)

The cyAdvButton problem is not a small problem, if you want to use the cyAdvButton in a project. It just does not work. Again: no criticism, just an observation.

The question to be able to plan my projects: is that problem solved in release 2.80?

Which brought me to the next question: which packages or which components are not portable? In the current state, the cyAdvButton is not portable, because the WM_DRAWITEM message is not provided by the Linux implementations of Lazarus. If I want to produce a completely portable program, which components should I avoid?

Maybe, in the Lazarus' components directory, in the next release, you could add a file to describe that. :unsure:


sternas wrote: With this philosophy, some errors will exist.
and we can work together to solve these issues.


I agree and I did: I already supported you guys by providing the missing skins for the Lava package.

It's just that the cyAdvButton problem is too complicated for me.

Regards ;-}
Dick

Please Log in or Create an account to join the conversation.

More
8 years 2 weeks ago #2255 by Mauricio
Replied by Mauricio on topic [LAB] Cindy components

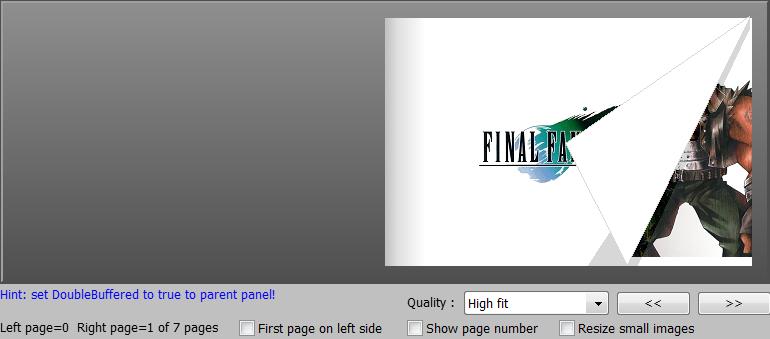

Cindy V5.05 released!

Big improvments (speed up using windows gdi) made in TcyBook component!

Cindy components V5.05
15/07/2012 - cyBook.pas - We can see now page behind on the turn page effect!
14/07/2012 - cyBook.pas - Small bugs fixed + improvments
14/07/2012 - cyBook.pas - Despite it is not coherent in real book, we can set page with odd (1,3,5 etc ...) numbers to CurrentLeftPage property
13/07/2012 - cyBook.pas - Added TTurnPageAnimation.DoubleBuffered: Boolean property
13/07/2012 - cyBook.pas - Replaced use of BitmapResize() that is too low by DrawCanvas()
12/07/2012 - cyBook.pas - Removed prFitMediumQuality and prStretchMediumQuality to TPageRender
12/07/2012 - cyBook.pas - Modified BeforePreparePage event in order to able custom page rendering or/and use external page resizing engine.
12/07/2012 - cyBook.pas - Added OnLeftPageClick and OnRightPageClick events
12/07/2012 - cyProgressionPanel.pas - Added property State to public declaration
12/07/2012 - cyAdvProgressionPanel.pas - Small bug fixed on .Open procedure (avoid error if we call several times open();)
12/07/2012 - cyAdvProgressionPanel.pas - Added property State to public declaration
11/07/2012 - cyBook.pas - Some optimization and added read/write property access to TBookPageView (for exemple TBookPageView.Page: TBitmap)
11/07/2012 - cyBook.pas - Turn page with mouse if page dragged and not clicked
11/07/2012 - cyBook.pas - Added DblClick event
11/07/2012 - cyBook.pas - Added boFitSmallImages and boStretchSmallImages to Options

Regards,
Mauricio
Attachments:
The following user(s) said Thank You: Miquel Matas

Please Log in or Create an account to join the conversation.

  • Sternas Stefanos
  • Sternas Stefanos's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
More
8 years 2 weeks ago - 8 years 2 weeks ago #2256 by Sternas Stefanos
Replied by Sternas Stefanos on topic [LAB] Cindy components

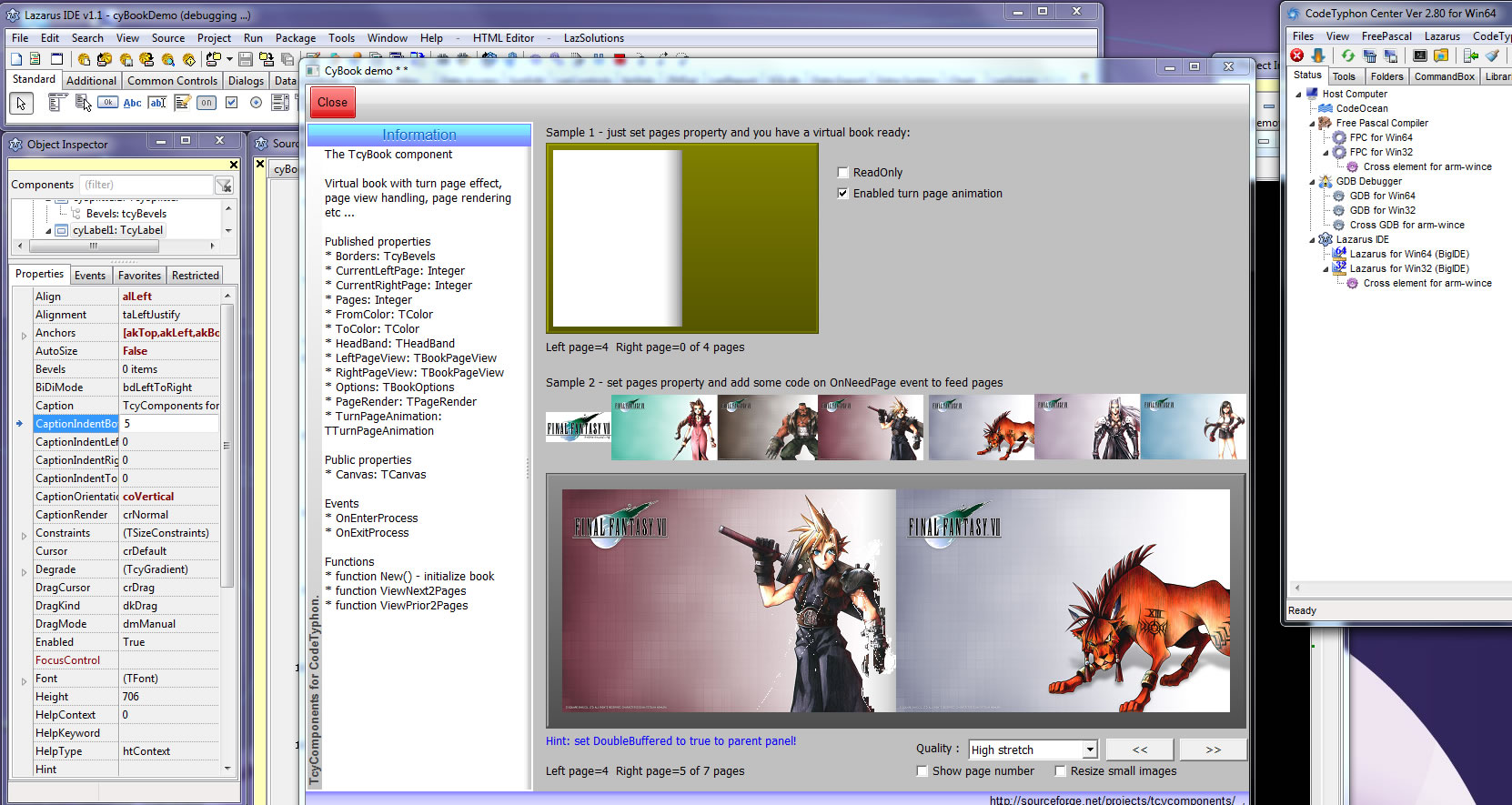

Thanks Sir
ver 5.05 port finish
STRETCH_HALFTONE not exist to LCL, I use HALFTONE

I think now cybook is OK

PilotLogic Architect and Core Programmer
Attachments:
Last edit: 8 years 2 weeks ago by Sternas Stefanos.

Please Log in or Create an account to join the conversation.

More
8 years 2 weeks ago #2257 by Mauricio
Replied by Mauricio on topic [LAB] Cindy components
I have changed to HALFTONE myself after checking that quality is the same.

"I think now cybook is OK "
You bet!

Regards,
Mauricio

Please Log in or Create an account to join the conversation.

  • RockyLuck
  • Visitor
  • Visitor
7 years 10 months ago - 7 years 10 months ago #2512 by RockyLuck
Replied by RockyLuck on topic [LAB] Cindy components
There's a couple of bugs in cyAdvSpeedButton.pas. The bugs are all of the same nature: if a test is made against the State of the TcyAdvSpeedButton the state "bsHot" is always forgotten, resulting in an exception as soon as the cursor hovers over such a button.
The bugs can be fixed as follows:

Lines 408-409: case FState of bsUp {Add this:}, bsHot: {this one is less important}
Lines 493-494: case aState of bsUp {Add this:}, bsHot:
Lines 578-579: case aState of bsUp {Add this:}, bsHot:

Especially the last two generate an exception because the RenderProp, resp. PaintButton are not assigned!
This bug was already reported in #2094

The same bug would surface in cyAdvButton in the DrawButton and DrawBackground procedures, but these procedures are never called, because of the other bug ( #1796 ) which has been declared minor ( #2242 ):sick: (although the cyAdvButton is completely useless because of it). :S

Last edit: 7 years 10 months ago by RockyLuck.

Please Log in or Create an account to join the conversation.

  • Sternas Stefanos
  • Sternas Stefanos's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
More
7 years 10 months ago - 7 years 10 months ago #2513 by Sternas Stefanos
Replied by Sternas Stefanos on topic [LAB] Cindy components
Thanks Sir
we added your fixes
after 6 months you found the problem

Same problem:
cySpeedButton.pas
line 314
line 374
cyBitBtn.pas
line 208
line 347
cyGraphics.pas
line 861

updated source

PilotLogic Architect and Core Programmer
Attachments:
Last edit: 7 years 10 months ago by Sternas Stefanos.

Please Log in or Create an account to join the conversation.
