And almost forgot...

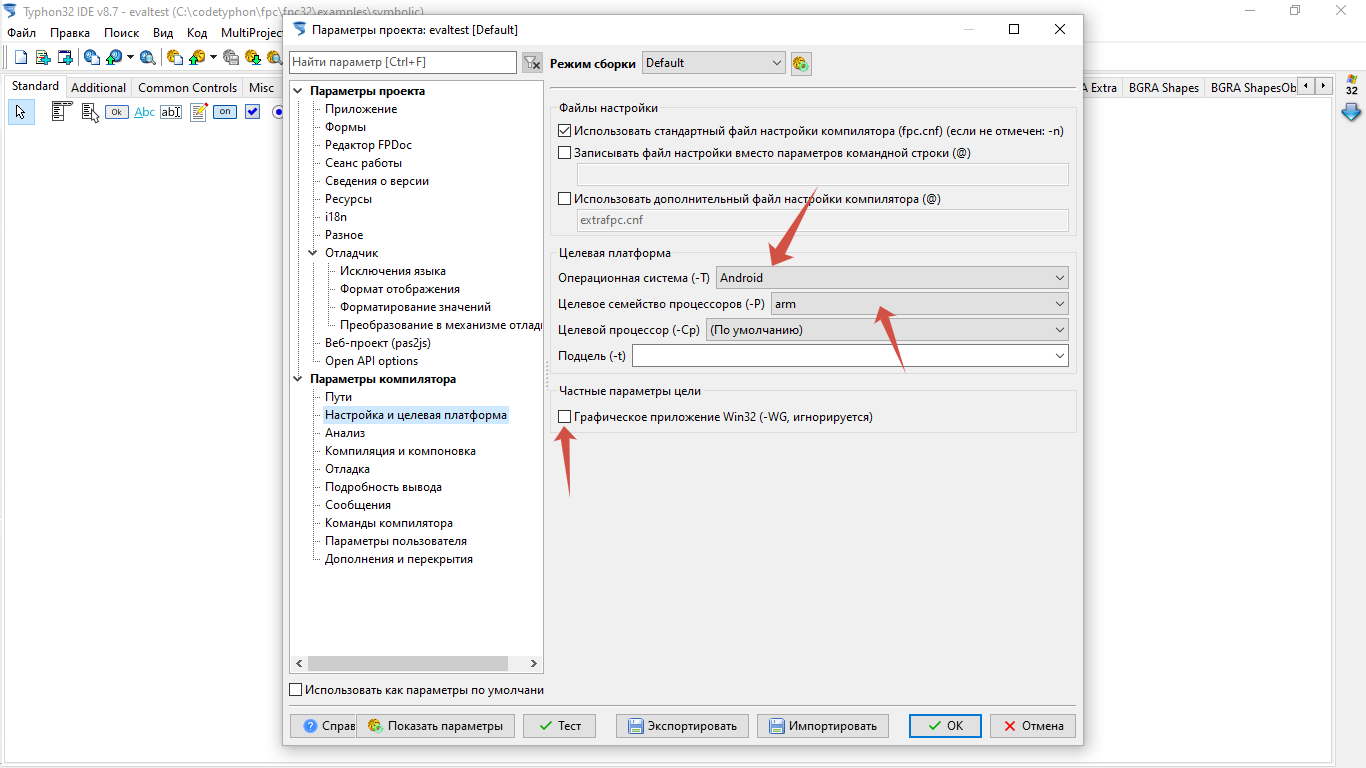

While setting the project options to OS Android and Target CPU Aarch64 I saw that default library was set to Gtk2.
On the same page down below.
Though I did not have time to step forward to page of setting IDE Macro = Customn Drawn Interface.
I thought maybe this detail could also help to solve the puzzle of Customn Drawn platform.

So, you solver your problem with
Delphi 12 Community Edition ?

Yes, sir.
I had to use native Delphi FMX components to build and deploy my music player project into Android application.
Or, maybe is there in CTC special conver for Code Typhon to convert LCL components into Delphi FMX?
Because as far as I know both LCL and FMX components are based on the Delphi VCL.

Maybe I just failed to search in Code Typhon Center such converter from LCL to Delphi VCL?

All that I have found was converter from Delphi VCL into Code Typhon project?

As you can see my music player is very simple project.
I have a few more projects which have more complicated visual Components.

And some of them were created even with Lazarus IDE.

For example this project. sourceforge.net/projects/emkatic/

I also want to convert this project into Android application.

But all I know now is how to convert the project from Lazarus to Code Typhon via Code Typhon center.

That is why I will try further:
1. Find out how to convert CT project into Delphi for to build and deploy Android application.
2. Find out how to build and deploy Android application via Code Typhon.

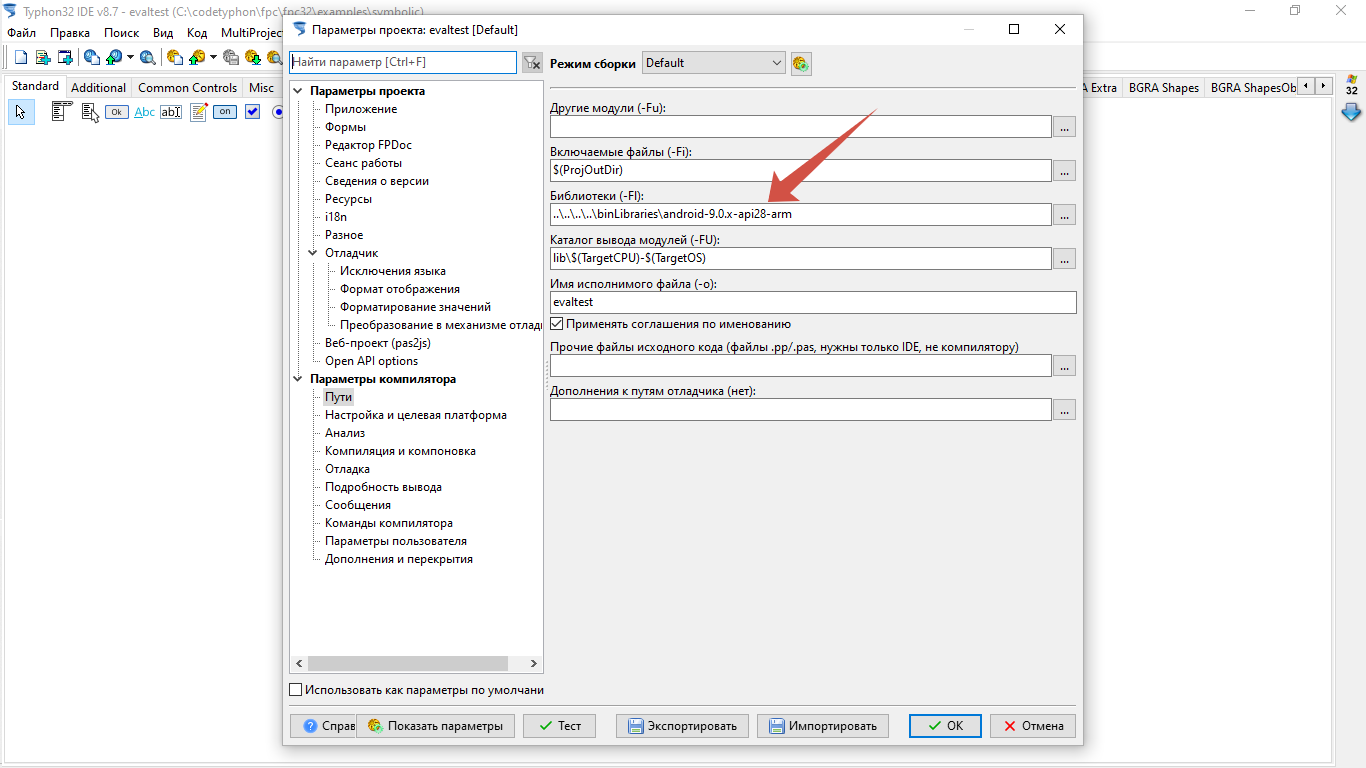

Have built another console application for Termux.

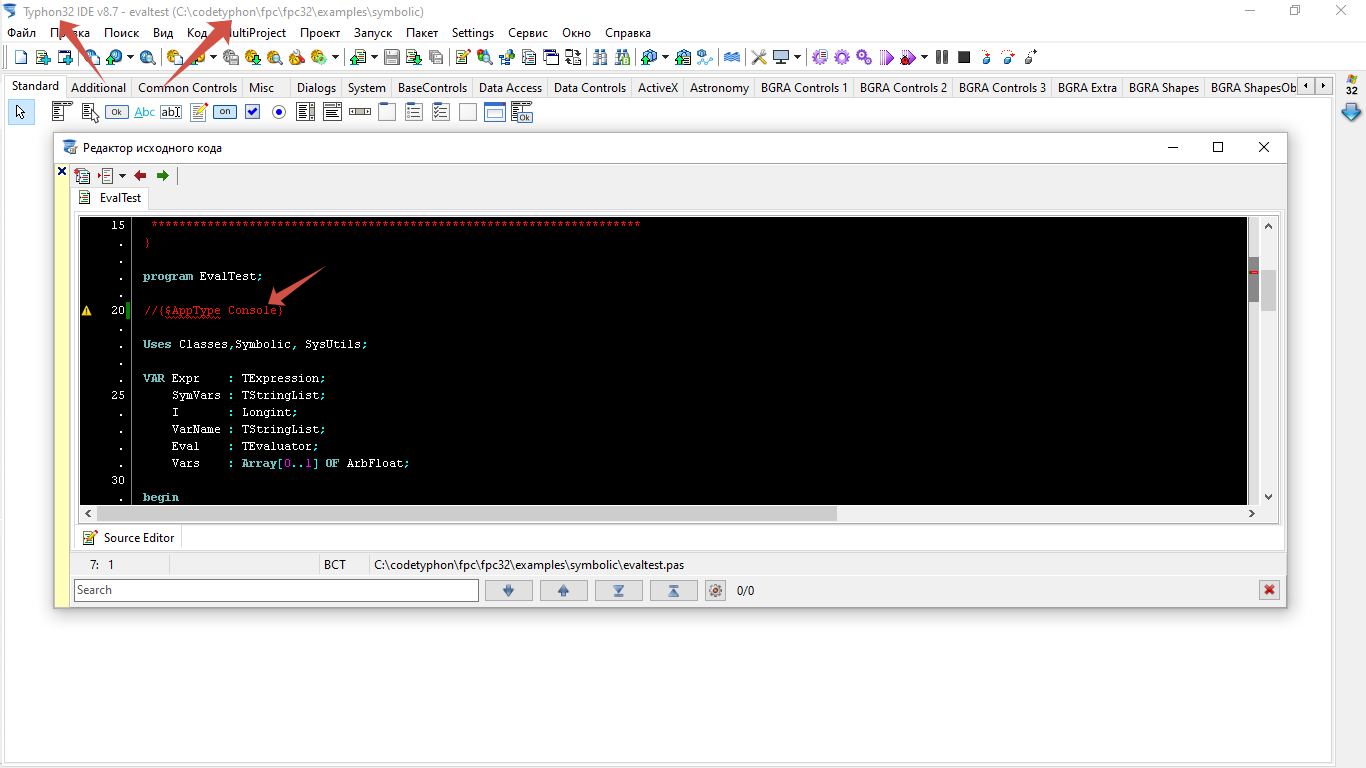

From "C:\codetyphon\fpc\fpc32\examples" directory.

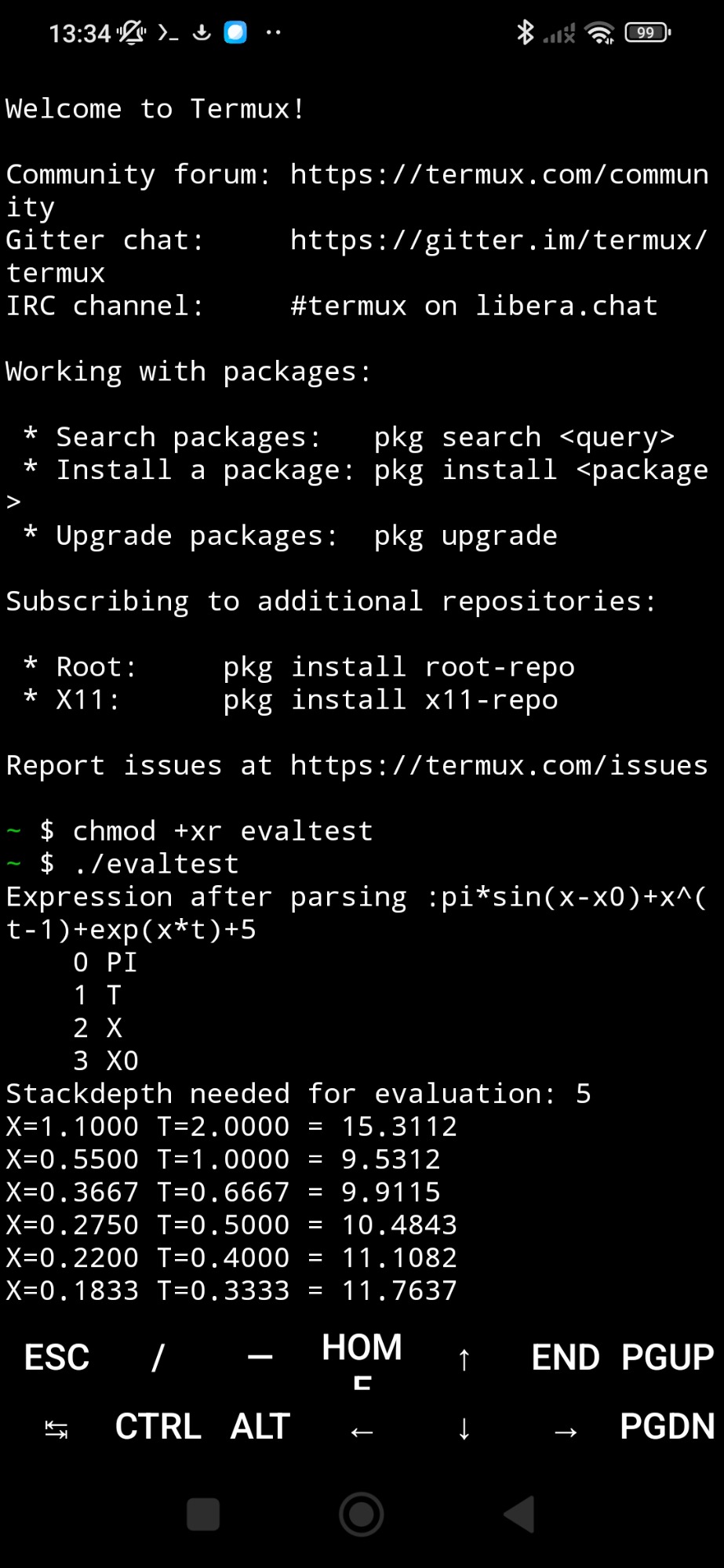

The application was successfully launched in Terminal.

From HOME directory of Termux.

I have used "chmod +xr" option to grant permissions before start.

More information you can find on screenshots attached.



Thanks Sir

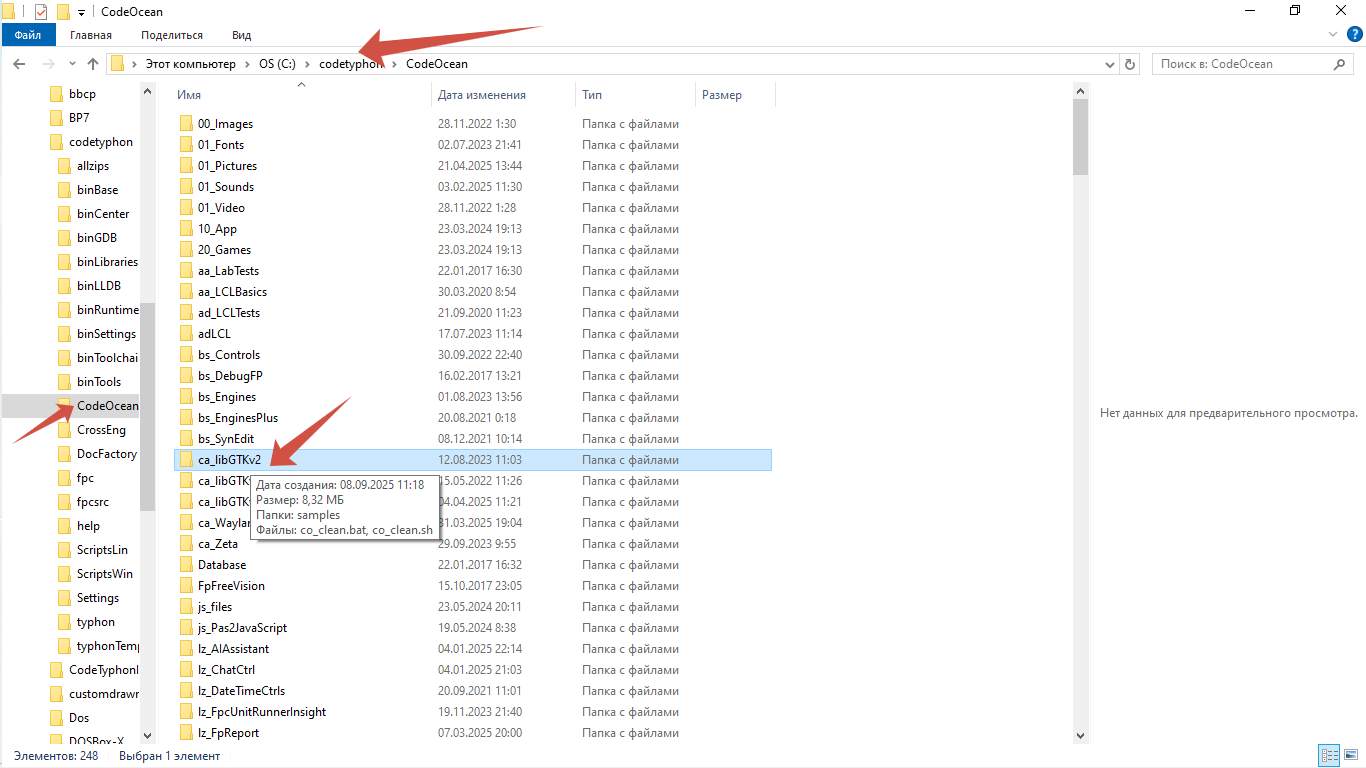

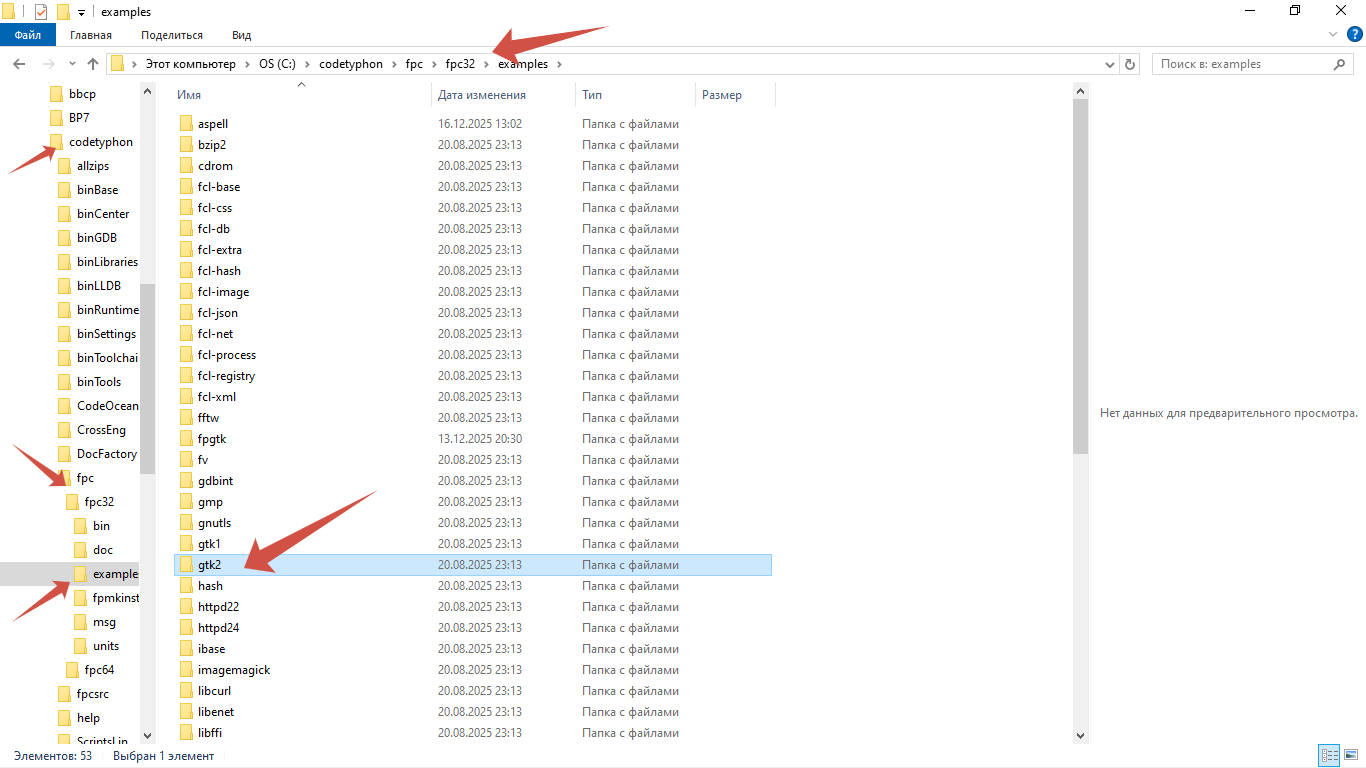

Have found the examples with GTK2 GUI in CodeOcean and fpc directories.

Termux terminal can support GTK2 GUI after installing special packages.

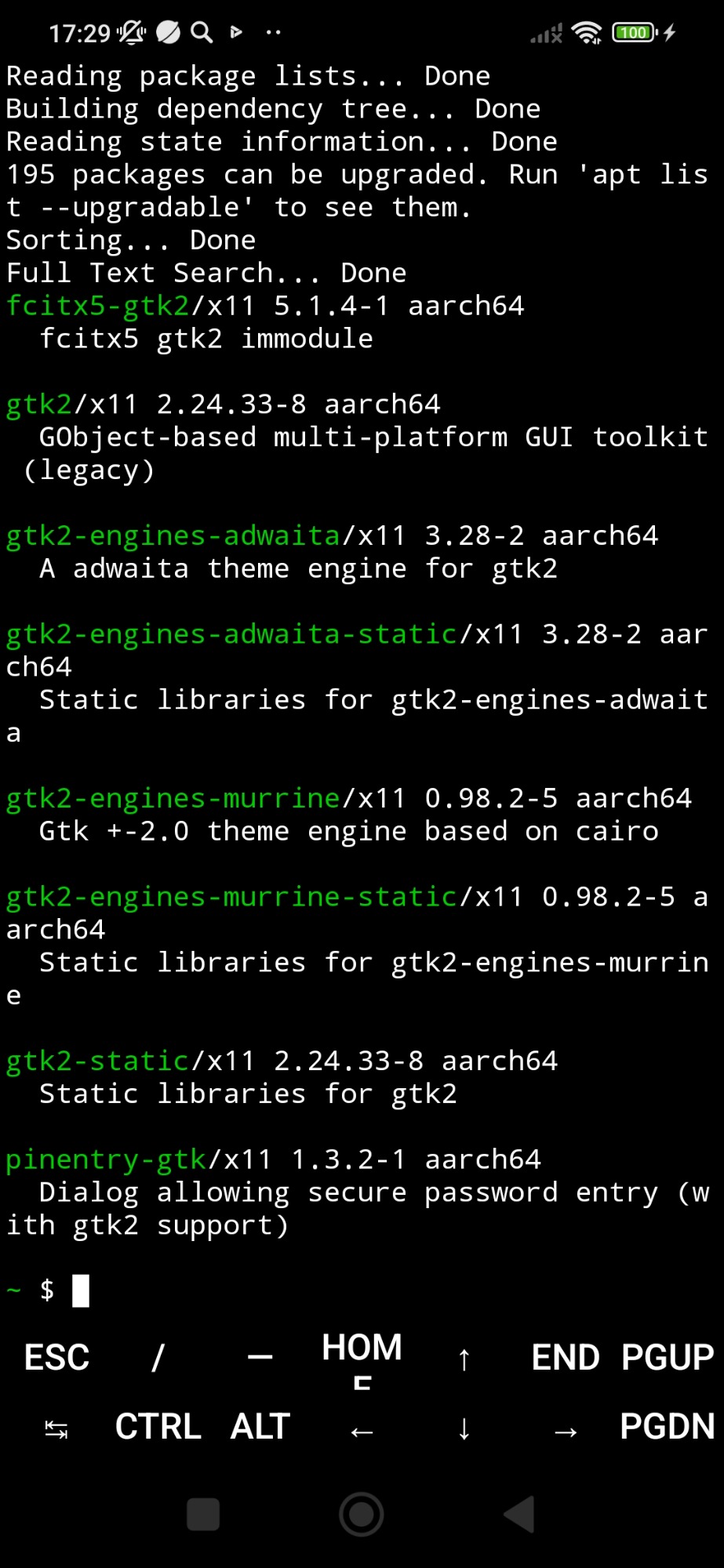

Have got a lot of GTK2 packages after executing command in Termux "pkg search gtk2".

Does anybody know which GTK2 packages should be installed in Termux to launch examples from CodeOcean and fpc directories?



Look at
C:\codetyphon\ScriptsLin\systems\ *.sh
files


Thanks, sir.

I have looked inside the *.sh files.

The names of libraries are given in the *.sh files don't match to those on screenshot from Termux, I have attached to my previous post.

That is why, my question is still open.

What are the names of library package I should pick up and install among all now available for Termux?

The list of available packages you can find on screenshot attached.

This is actual list. I made this list today by command "pkg search gtk2".



Sir, the truth is,
we don't use Termux
and we don';t know if has GTK2 pkgs

Your case is hard one....



Termux supports also QT and OpenGL GUI applications.

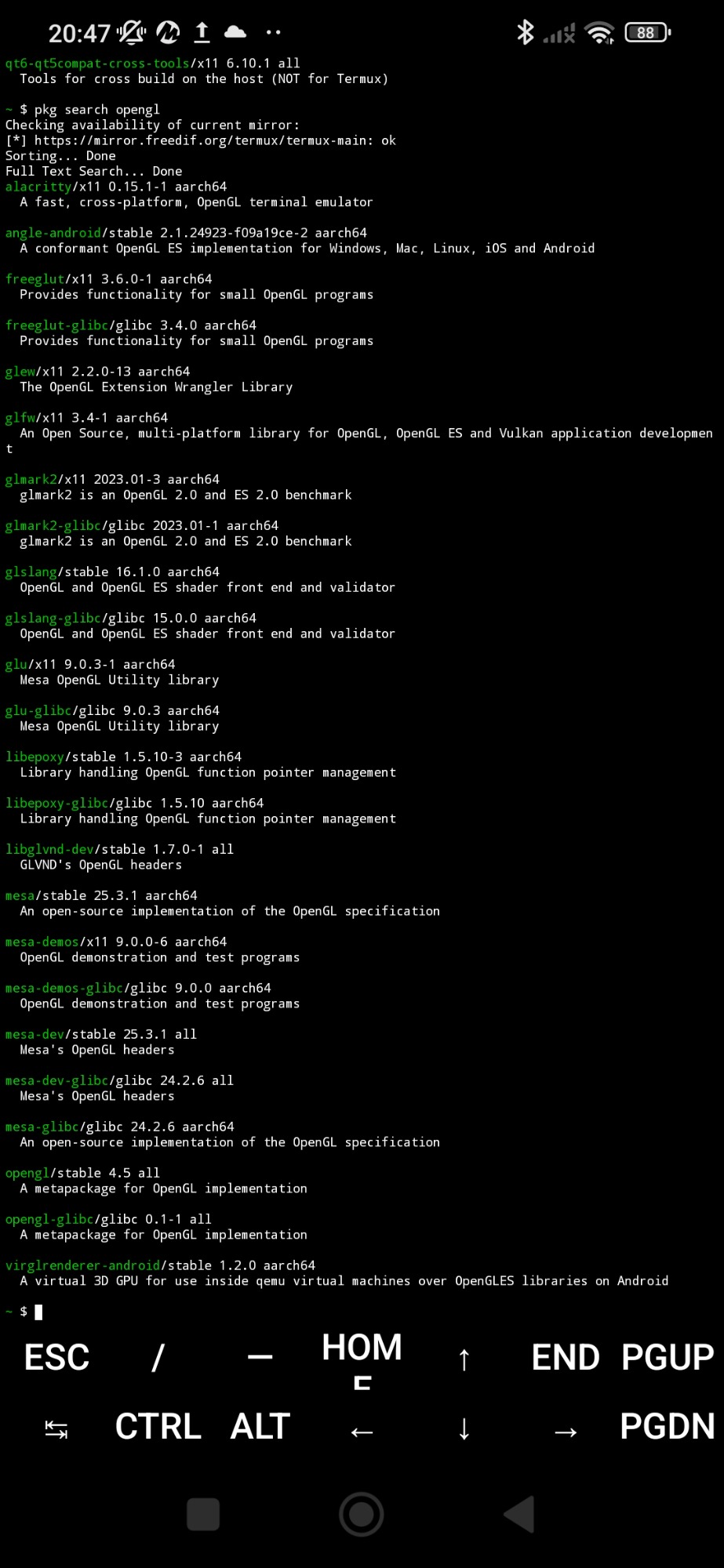

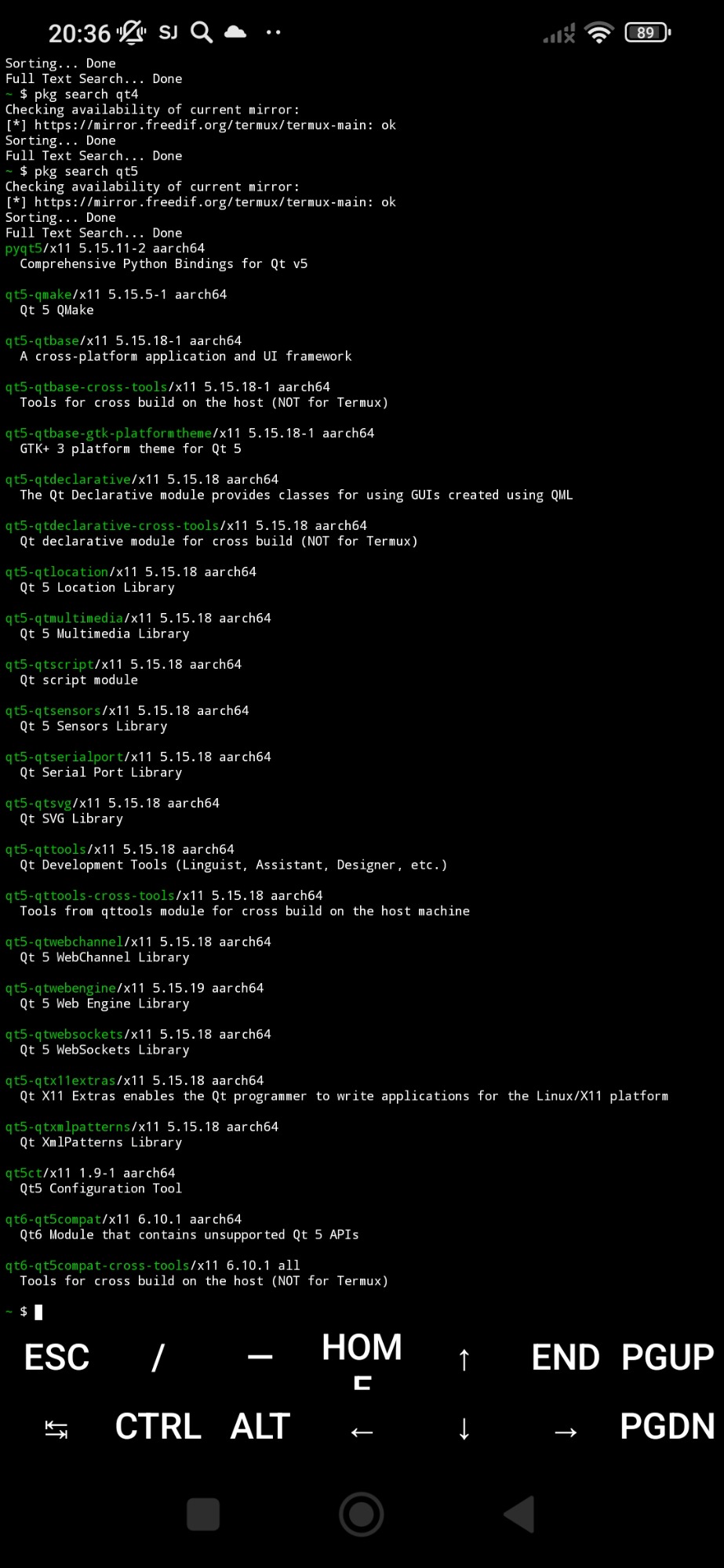

Here is actual lists of packages for Termux on the screenshots attached.

My question is still open. Because I also have found examples for QT and OpenGL GUI application in CodeOcean and fpc directories.

What are the names of QT and OpenGL GUI packages I should pick up and install from those listed in Termux?



Matis A. wrote:

Sir, the truth is,
we don't use Termux
and we don';t know if has GTK2 pkgs

Your case is hard one....



Thank you, sir, for the frank answer.

As you can see, looking throw this topic, my effort to use CustomDrawn GUI for Termux failed.

I still want to have app with GUI for Termux created by Code Typhon or fpc units.

That is why I decided to try all other GUI available to create the app on Pascal for Termux.

It is great that there are examples for GTK, QT and other GUI in CodeOcean and free pascal directories.

Because I can try to install GTK, QT and other GUI packages for Termux and build the examples to run under Termux.


I have searched throw the Web and found out that Termux uses special version of Android libs - Bionic libs.
It is not full enough to launch projects compiled for target OS Android.

Termux is rather more Linux like environment.

So, I recompiled CustomnDrawn project for Target OS Linux. For Aarch64 - for my smartphone.

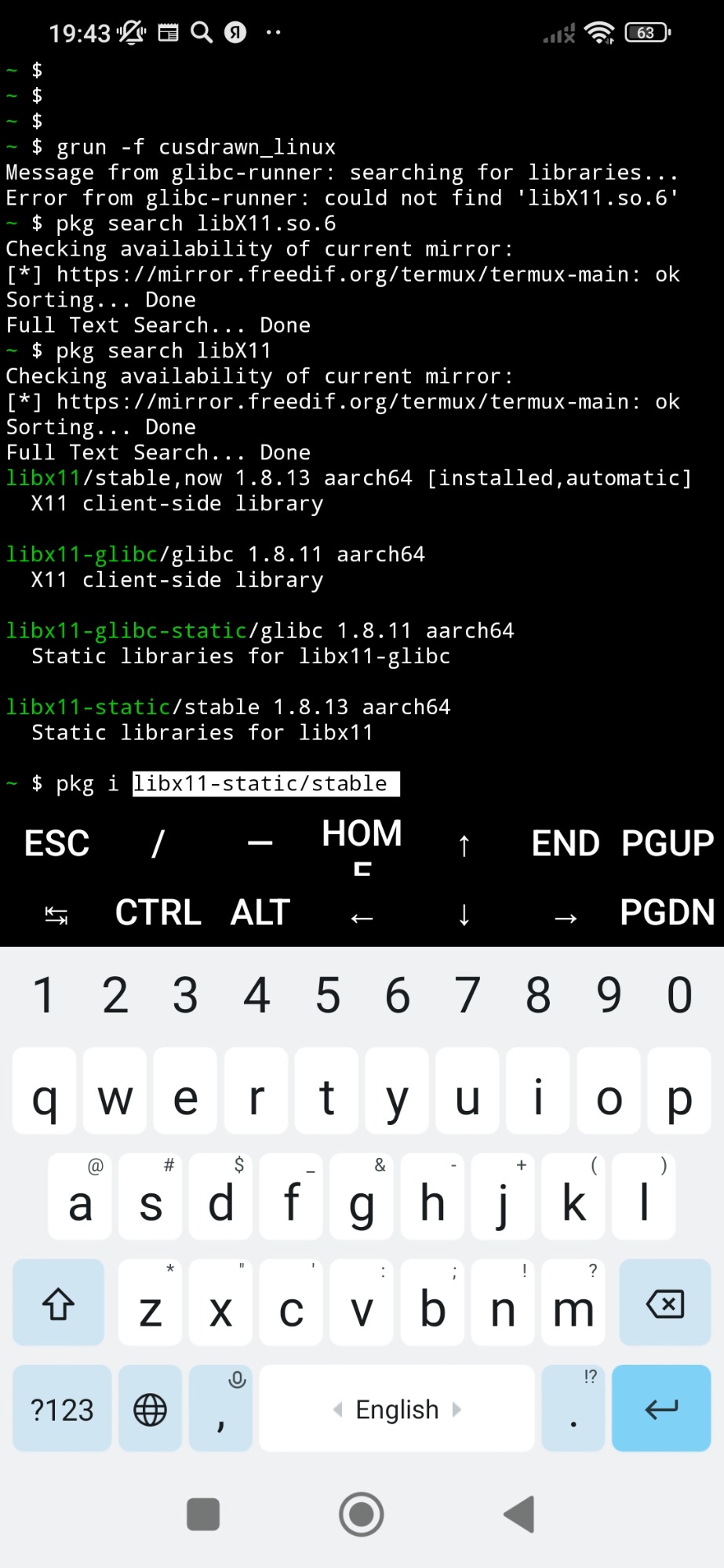

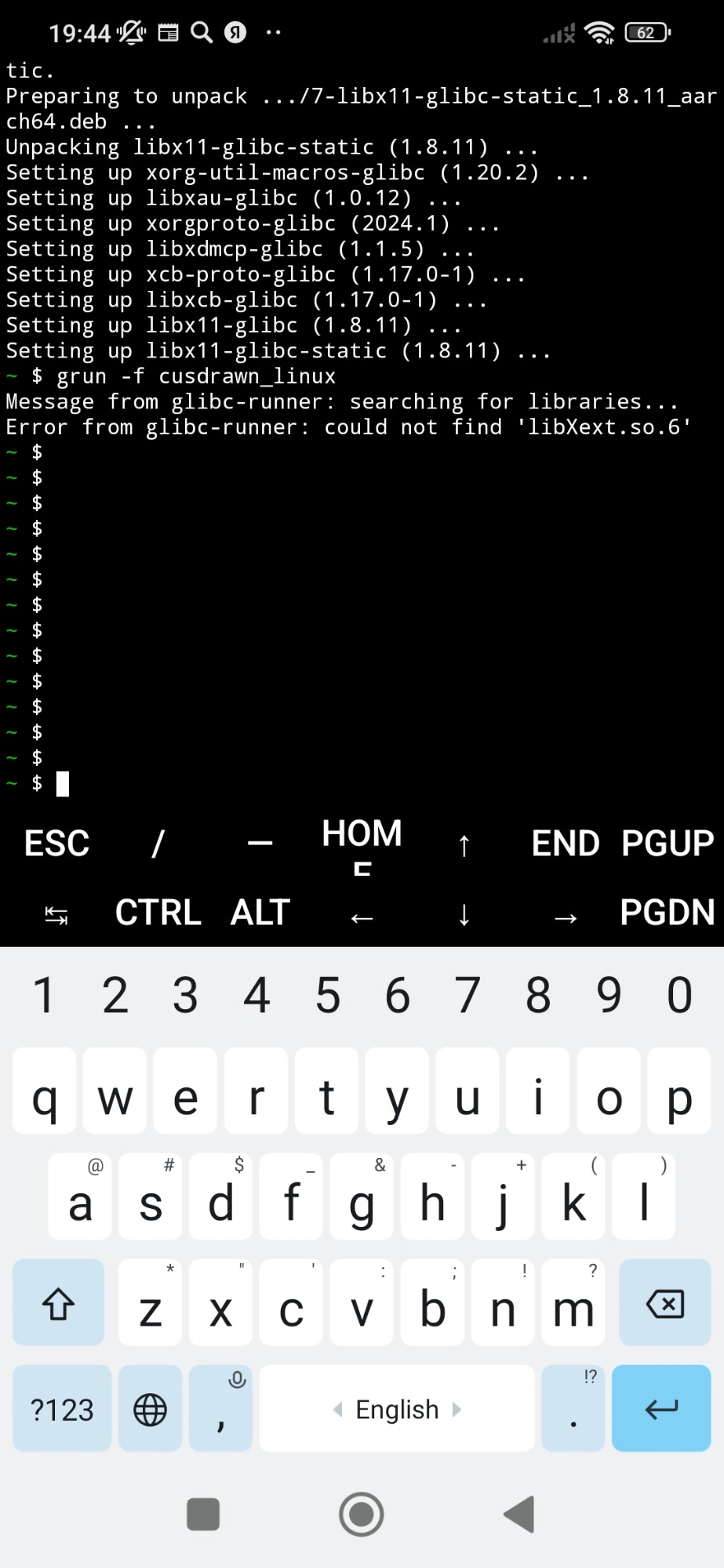

I have used Termux package "glibc-runner" (aka grun) to search for the Termux packages required to launch the app.

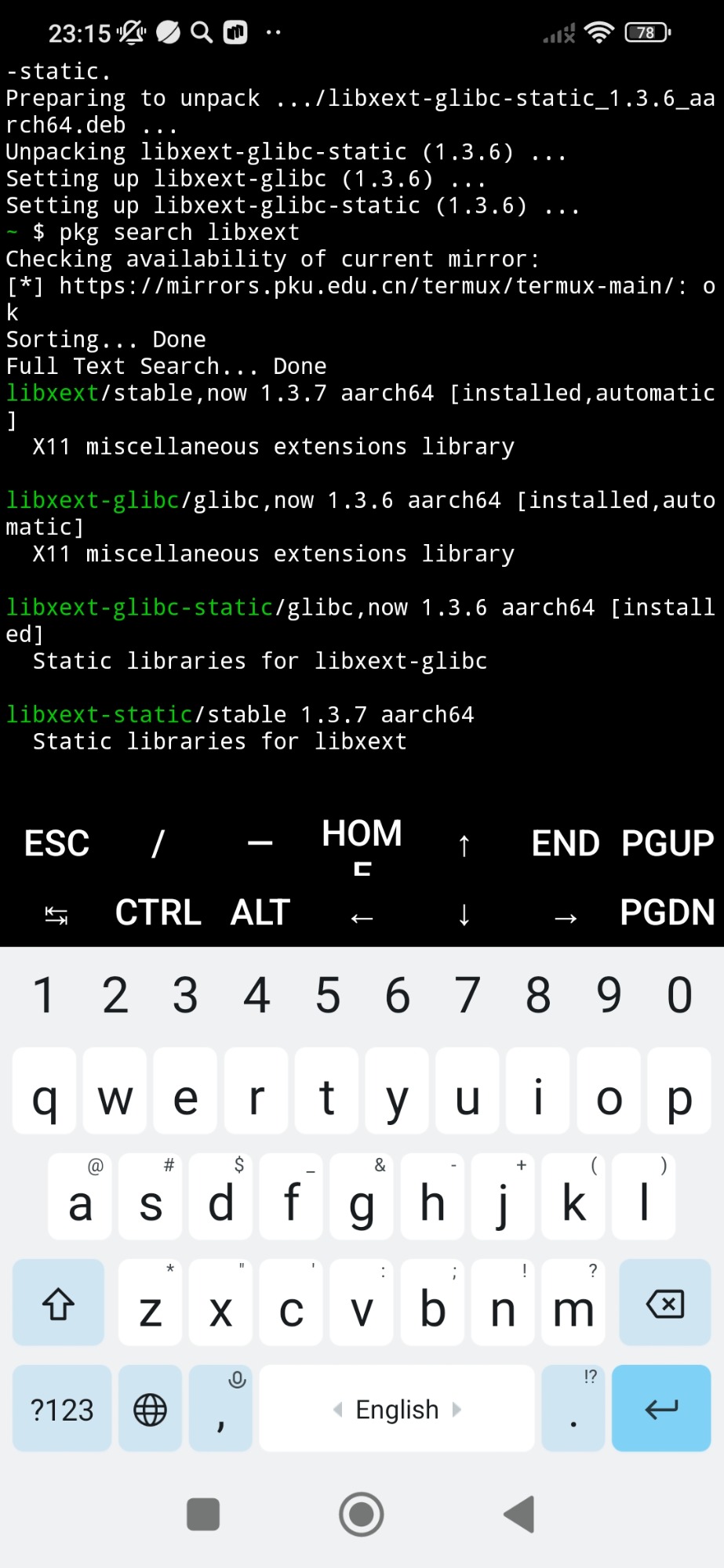

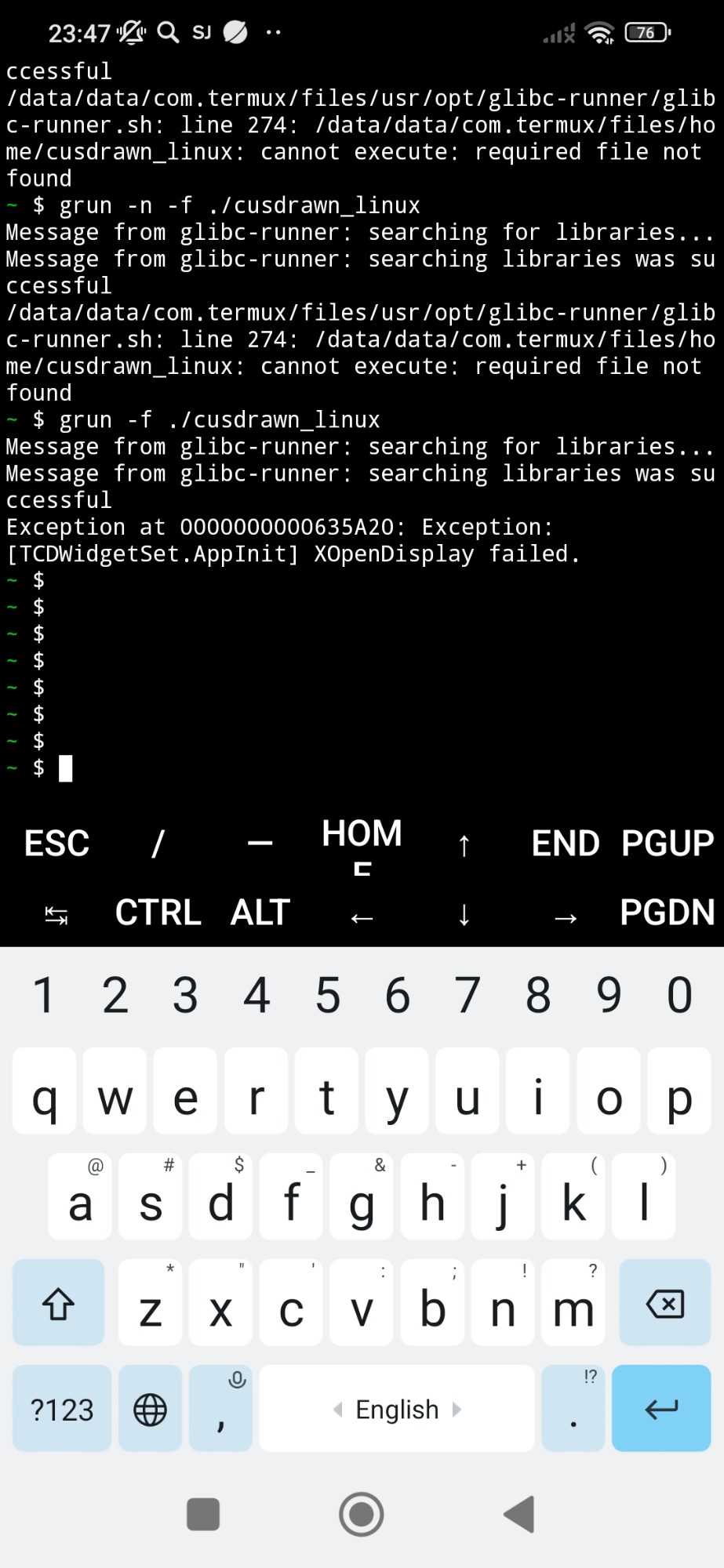

See sample screenshots.

So, it is possible to run the apps compiled for Target OS Linux in Termux.

But Termux is not full-featured Linux OS.

Follow this link to find out the difference.
wiki.termux.dev/wiki/Differences_from_Linux



Not only glibc-runner package but these Termux packages could be used as well:
1. Package "strace"
2. Package "ldd"

In case of mismatch the library names from Typhon and Termux libraries it is possible to create symlinks.

I use Termux that is not from the Google Play.

Follow this link to find out the difference
github.com/termux/termux-app/discussions/400
