Question Cross Compiling on Rasppery pi 2 not work

  • usbdoo
  • Topic Author
  • Visitor
  • Visitor
4 years 9 months ago #10541 by usbdoo
Debian GNU/Linux 8.5 (jessie)
Cross Compiling on Rasppery pi 2 not work
Program compile ok.
But when start program I get

HandleExeption error reading fmtest.Left: Unknown propert y: "Left"

Please Log in or Create an account to join the conversation.

More
4 years 8 months ago #10635 by Thomas Ct. Bab
Replied by Thomas Ct. Bab on topic Cross Compiling on Rasppery pi 2 not work
Same Problem here: crosscompiling works, but the same error-message on PI2 and P3 with all updates.

Please Log in or Create an account to join the conversation.

More
4 years 8 months ago #10636 by Matis A.
Replied by Matis A. on topic Cross Compiling on Rasppery pi 2 not work
Guys, we try to solve the problem

PilotLogic Core Programmer
The following user(s) said Thank You: usbdoo

Please Log in or Create an account to join the conversation.

  • Sternas Stefanos
  • Sternas Stefanos's Avatar
  • Away
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
More
4 years 8 months ago - 4 years 8 months ago #10637 by Sternas Stefanos
Replied by Sternas Stefanos on topic Cross Compiling on Rasppery pi 2 not work

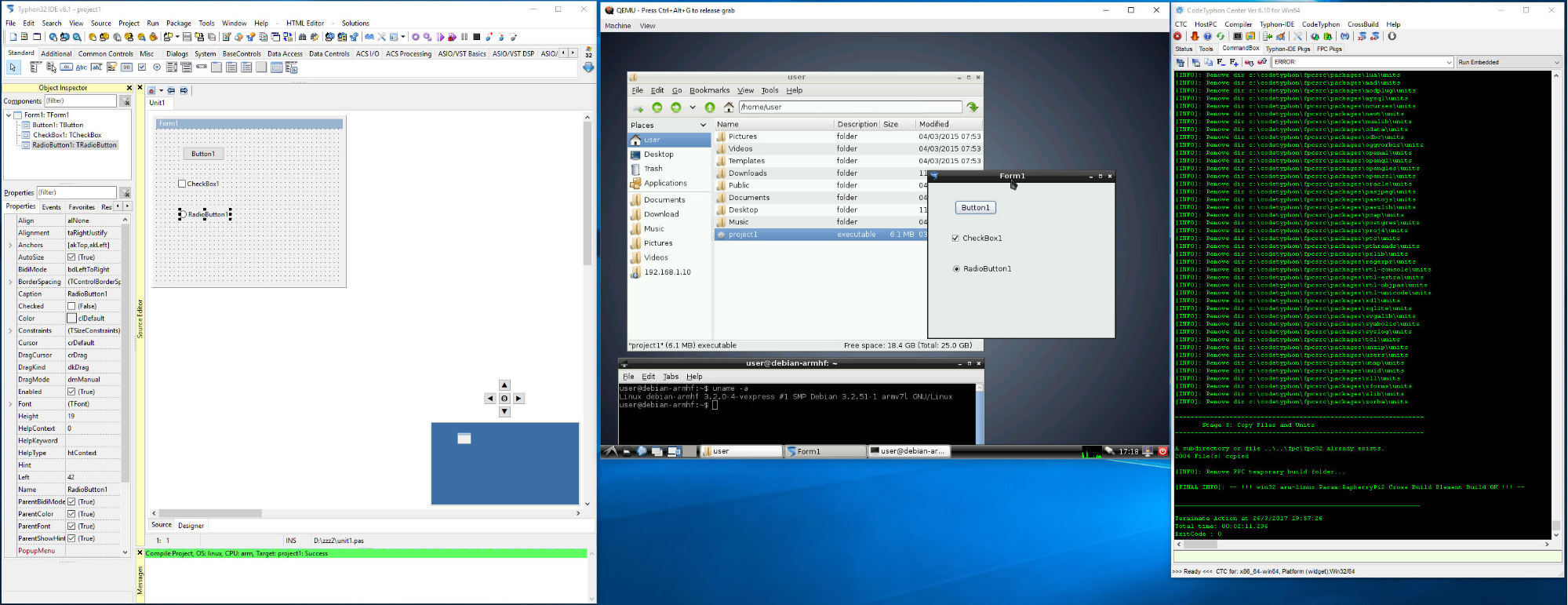

We test
Lab CT 6.10, Typhon32 IDE, arm-linux cross build on Win10 Pro
arm_linux_RapberryPi2 (pi2 and Pi3)
and we don't find any problem.

Any suggestion ?


PilotLogic Architect and Core Programmer
Attachments:
Last edit: 4 years 8 months ago by Sternas Stefanos.

Please Log in or Create an account to join the conversation.

More
4 years 8 months ago #10638 by zeljko
Replied by zeljko on topic Cross Compiling on Rasppery pi 2 not work
Compile not problems,
problems start application to Raspberry PI 2, Raspberry PI 3 and Orange Pi zero

not wokr to board!
HandleExeption error reading fmtest.Left: Unknown propert y: "Left"

Please Log in or Create an account to join the conversation.

  • Sternas Stefanos
  • Sternas Stefanos's Avatar
  • Away
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
More
4 years 8 months ago - 4 years 8 months ago #10639 by Sternas Stefanos
Replied by Sternas Stefanos on topic Cross Compiling on Rasppery pi 2 not work
Any sample project for our tests ?

PilotLogic Architect and Core Programmer
Last edit: 4 years 8 months ago by Sternas Stefanos.

Please Log in or Create an account to join the conversation.

More
4 years 8 months ago #10640 by zeljko
Replied by zeljko on topic Cross Compiling on Rasppery pi 2 not work
New project
Application

forms problems

Please Log in or Create an account to join the conversation.

  • Sternas Stefanos
  • Sternas Stefanos's Avatar
  • Away
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
More
4 years 8 months ago #10641 by Sternas Stefanos
Replied by Sternas Stefanos on topic Cross Compiling on Rasppery pi 2 not work
OK
I think the only solution is to buy a Pi3 for our lab.
We have 200.000 euro hardware here,
but we don't have a 35 euro arm dev board :S madness...

PilotLogic Architect and Core Programmer

Please Log in or Create an account to join the conversation.

More
4 years 8 months ago #10642 by zeljko

Please Log in or Create an account to join the conversation.

More
4 years 8 months ago - 4 years 8 months ago #10644 by zeljko
Replied by zeljko on topic Cross Compiling on Rasppery pi 2 not work

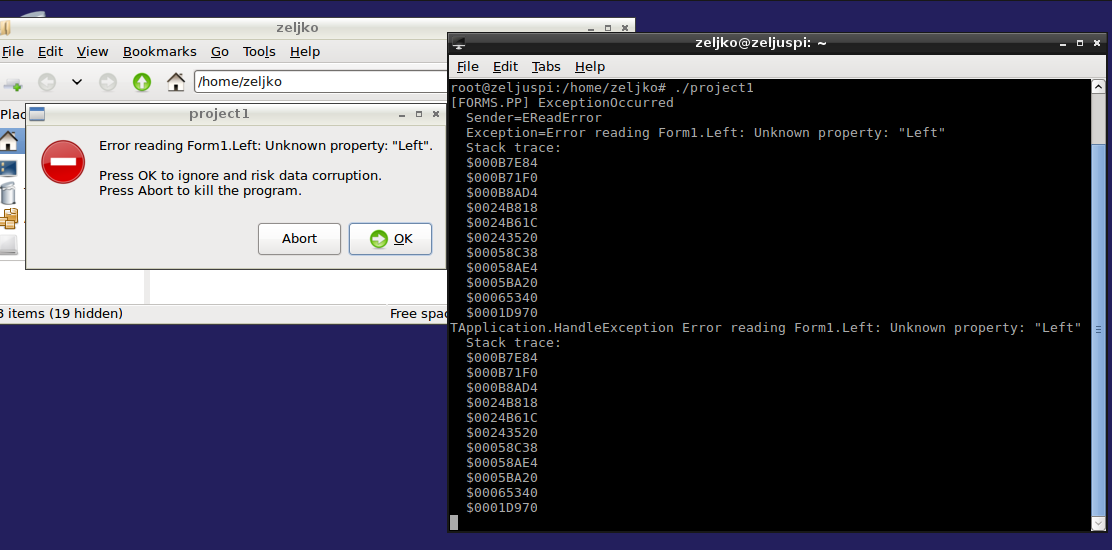

Orange PI zero

Error

may be with QEMU
Last edit: 4 years 8 months ago by zeljko.

Please Log in or Create an account to join the conversation.

  • Sternas Stefanos
  • Sternas Stefanos's Avatar
  • Away
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
More
4 years 8 months ago - 4 years 8 months ago #10647 by Sternas Stefanos
Replied by Sternas Stefanos on topic Cross Compiling on Rasppery pi 2 not work
Sir
give us time, we order some Pi3 for tests

PilotLogic Architect and Core Programmer
Last edit: 4 years 8 months ago by Sternas Stefanos.
The following user(s) said Thank You: zeljko, usbdoo

Please Log in or Create an account to join the conversation.

  • Sternas Stefanos
  • Sternas Stefanos's Avatar
  • Away
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
More
4 years 8 months ago - 4 years 8 months ago #10658 by Sternas Stefanos
Replied by Sternas Stefanos on topic Cross Compiling on Rasppery pi 2 not work
Well now we have 3xPi3

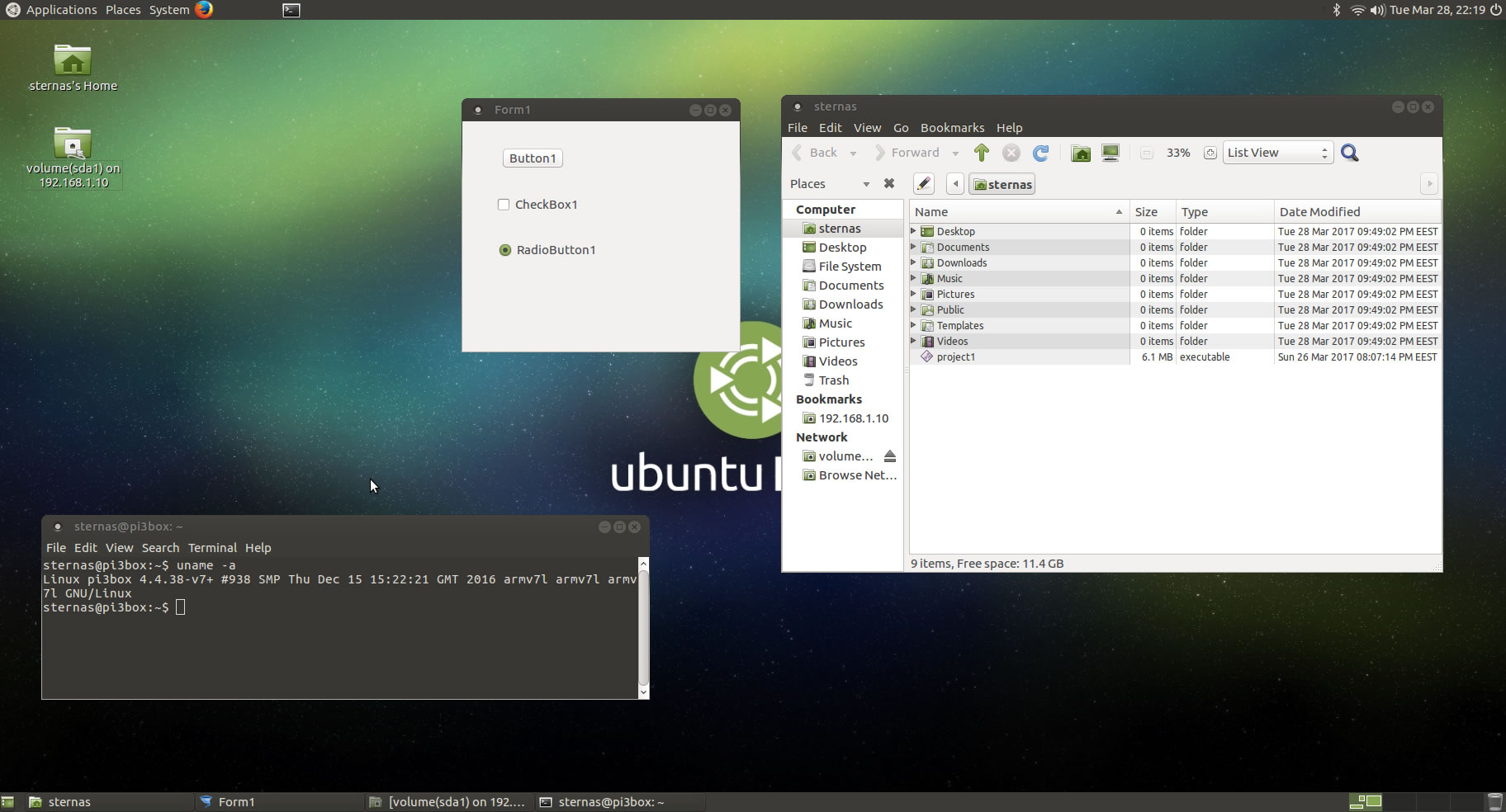

So, we test Ubuntu-16-04 with MATE desktop
(ubuntu-mate-16.04.2-desktop-armhf-raspberry-pi.img.xz)
the CodeTyphon test project from my previews post

All are OK



Some pi2 and Pi3 users use Raspbian Jessie with PIXEL desktop info
We don't know this desktop !!!
CodeTyphon NOT support yet this desktop.

PilotLogic Architect and Core Programmer
Last edit: 4 years 8 months ago by Sternas Stefanos.

Please Log in or Create an account to join the conversation.

  • usbdoo
  • Topic Author
  • Visitor
  • Visitor
4 years 8 months ago - 4 years 8 months ago #10662 by usbdoo
Replied by usbdoo on topic Cross Compiling on Rasppery pi 2 not work
Raspbian is the Foundation’s official supported Operating System. Download

RASPBIAN JESSIE LITE

sudo apt-get update
sudo apt-get dist-upgrade
sudo apt-get clean


sudo apt-get install --no-install-recommends xserver-xorg
sudo apt-get install lxde-core lxappearance
sudo apt-get install lightdm




Or


Please try this:
www.raspberrypi.org/downloads/raspbian/

CT 5.9 work on all debian version

CT 6.0 and CT 6.10 not work

wheezy and JESSIE all version

tested on PIXEL and LXDE

Rasppery pi 2, Rasppery pi 3, orang pi
Last edit: 4 years 8 months ago by usbdoo.

Please Log in or Create an account to join the conversation.

  • usbdoo
  • Topic Author
  • Visitor
  • Visitor
4 years 8 months ago #10663 by usbdoo
Replied by usbdoo on topic Cross Compiling on Rasppery pi 2 not work
Sternas Stefanos
Please test this.

Compile CT 6.10

Please attach your compile program.

Please Log in or Create an account to join the conversation.

  • Sternas Stefanos
  • Sternas Stefanos's Avatar
  • Away
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
More
4 years 8 months ago - 4 years 8 months ago #10664 by Sternas Stefanos
Replied by Sternas Stefanos on topic Cross Compiling on Rasppery pi 2 not work
Sir
we found the problem

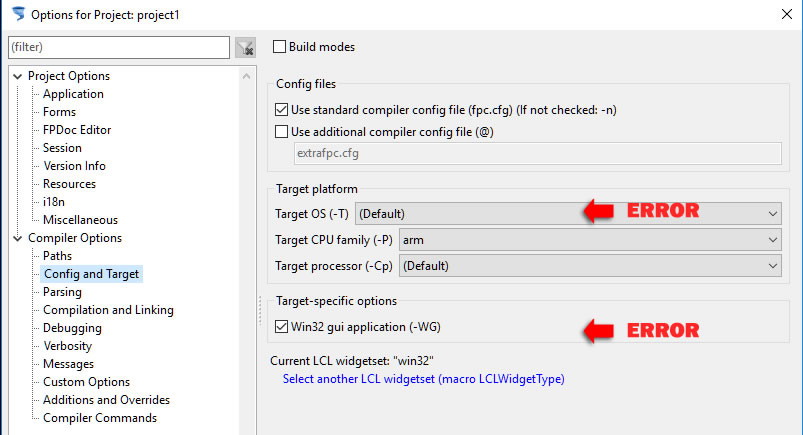

This NOT correct for Pi2-3

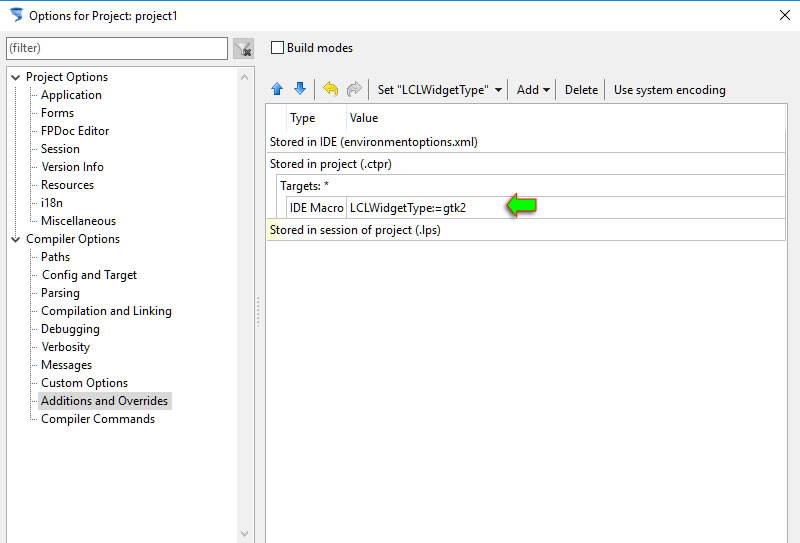

You must set platform=GTK2

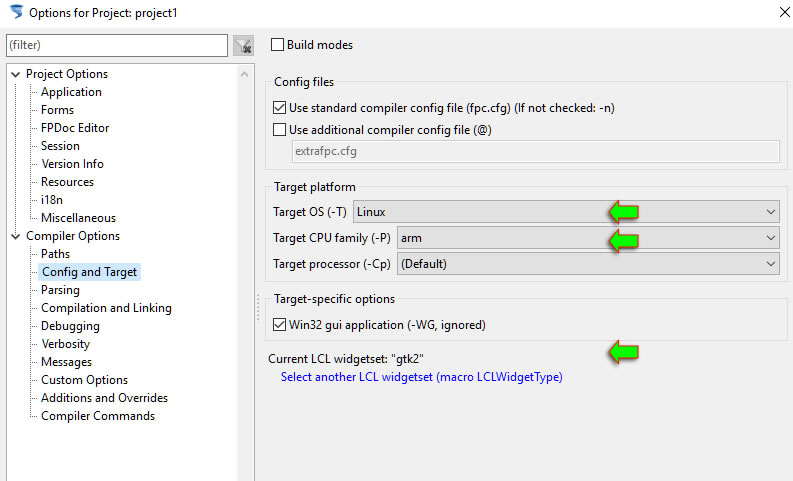

Finally the correct setup for Pi2-3 is

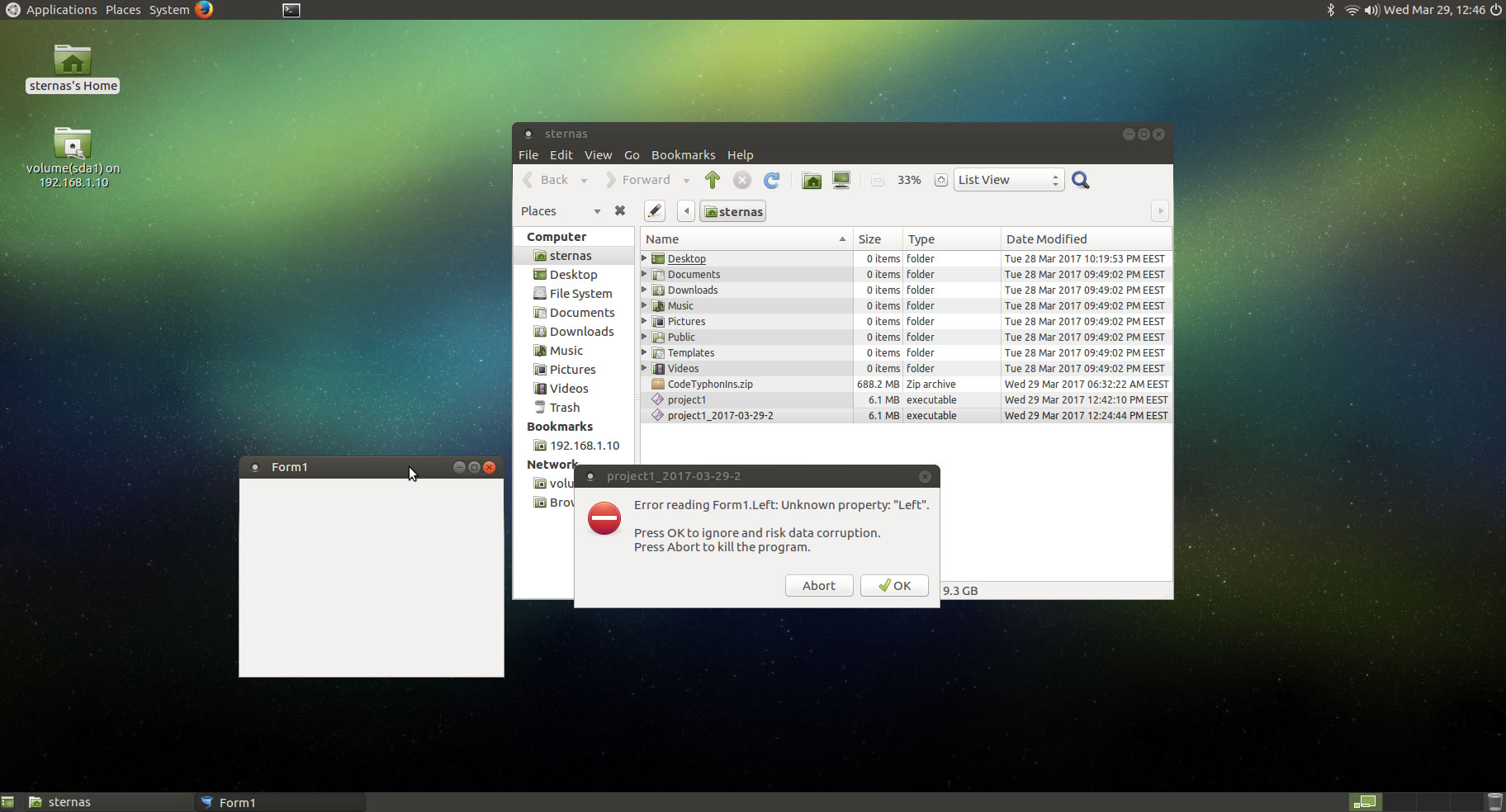

On the right the No correct project
On the left after above corrections

PS: We start CT tests on Pi3 as hostOS...

...

PilotLogic Architect and Core Programmer
Last edit: 4 years 8 months ago by Sternas Stefanos.

Please Log in or Create an account to join the conversation.

  • usbdoo
  • Topic Author
  • Visitor
  • Visitor
4 years 8 months ago #10666 by usbdoo
Replied by usbdoo on topic Cross Compiling on Rasppery pi 2 not work
Linux debian 3.16.0-4-amd64 #1 SMP Debian 3.16.39-1+deb8u1 (2017-02-22) x86_64 GNU/Linux
LAB CodeTyphon 6.10 Revision 006030 BETA1


I did as instructed but it is the same error as before.


Please attach your compile program.
I want to help find where the problem is.

(in the equipment or CT)



My
LAB CodeTyphon 6.10 Revision 006030 BETA1
is
different your
LAB CodeTyphon 6.10 Revision 006030 BETA1 .

Please Log in or Create an account to join the conversation.

More
4 years 8 months ago - 4 years 8 months ago #10670 by Matis A.
Replied by Matis A. on topic Cross Compiling on Rasppery pi 2 not work
We test on latest Debian 64
Cross build Typhon64 => arm-linux-Pi2 has the same problem
we make a lot of test with NO success :S

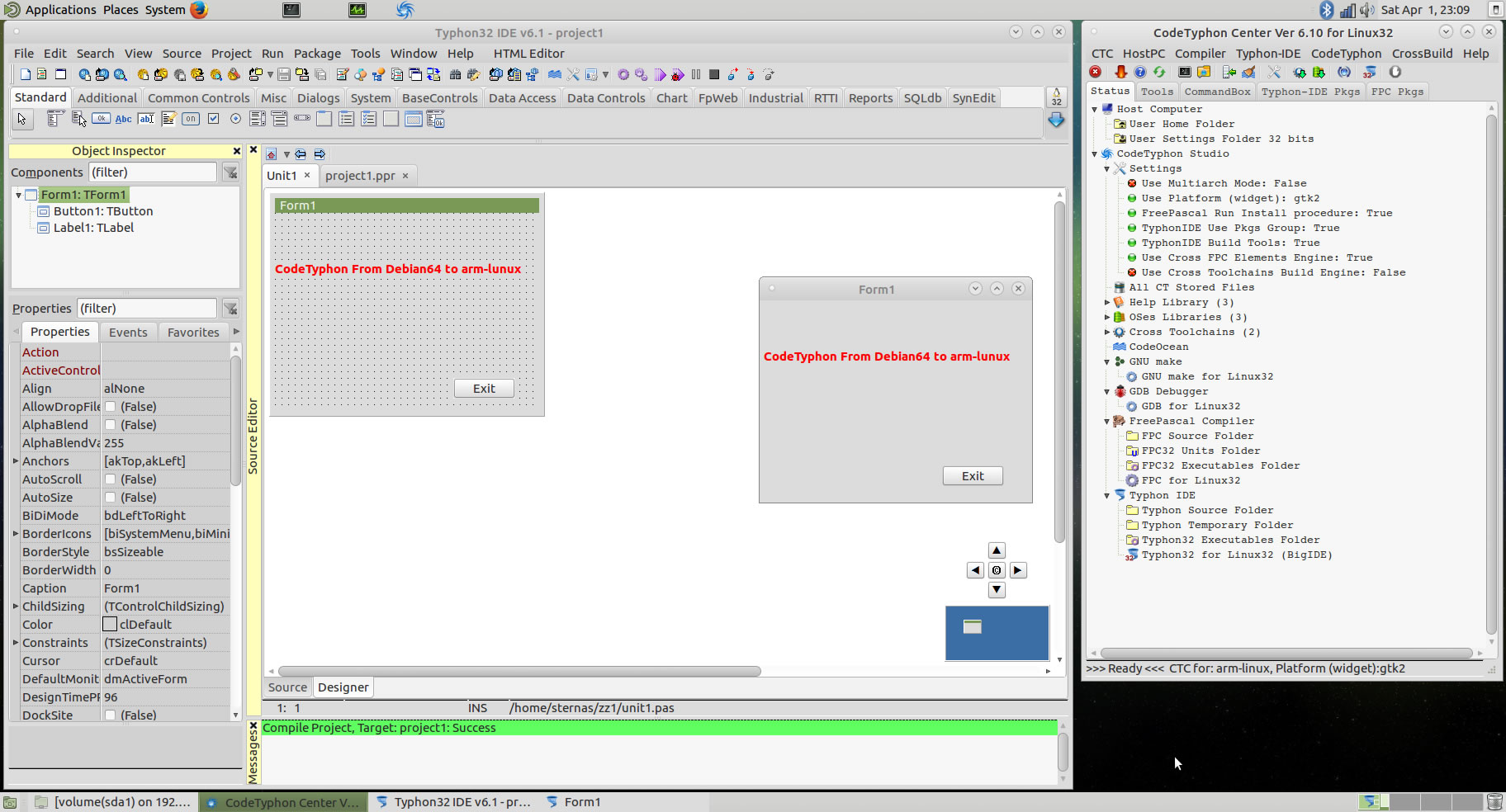

But, On Debian64 CT MultiArch

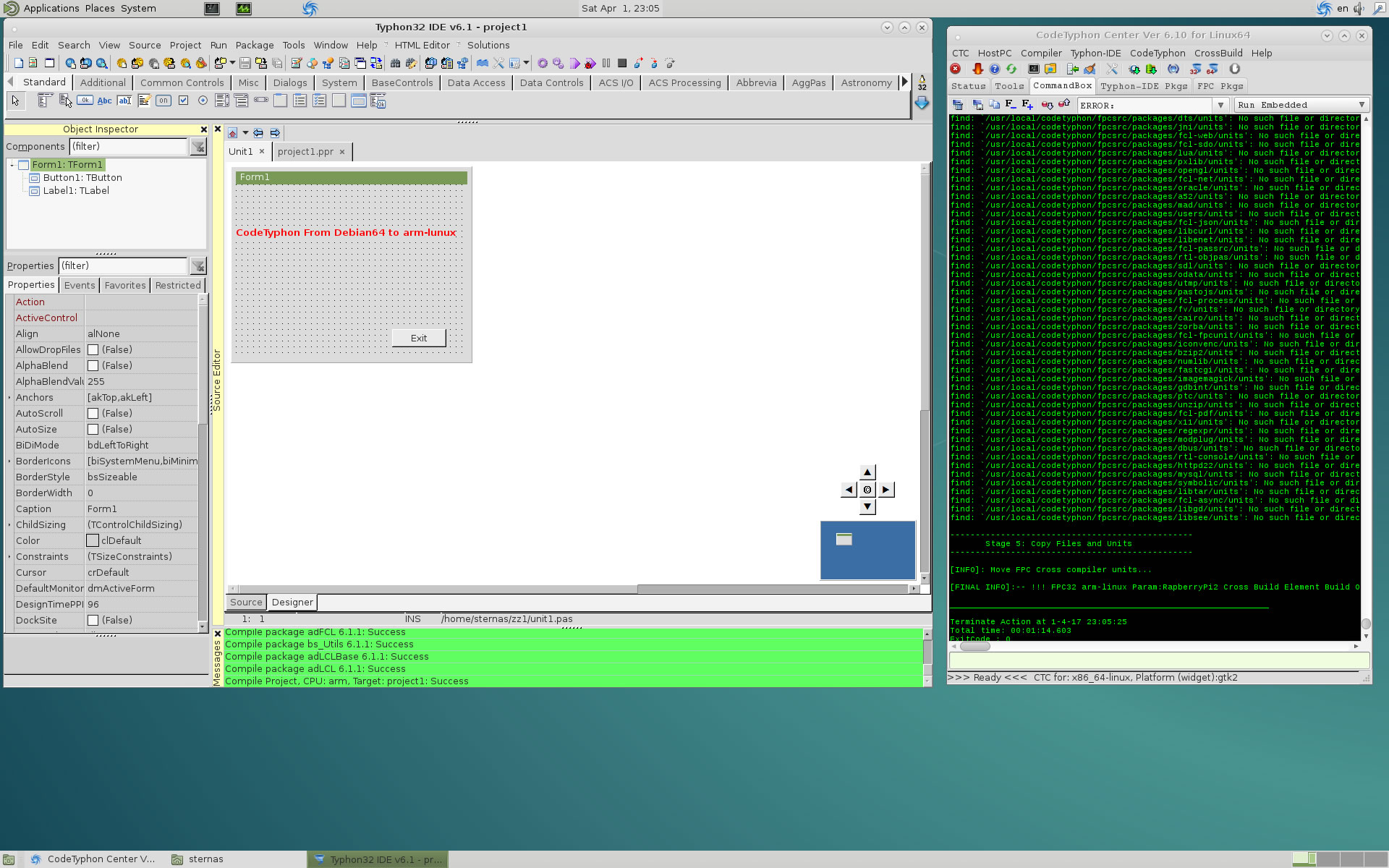

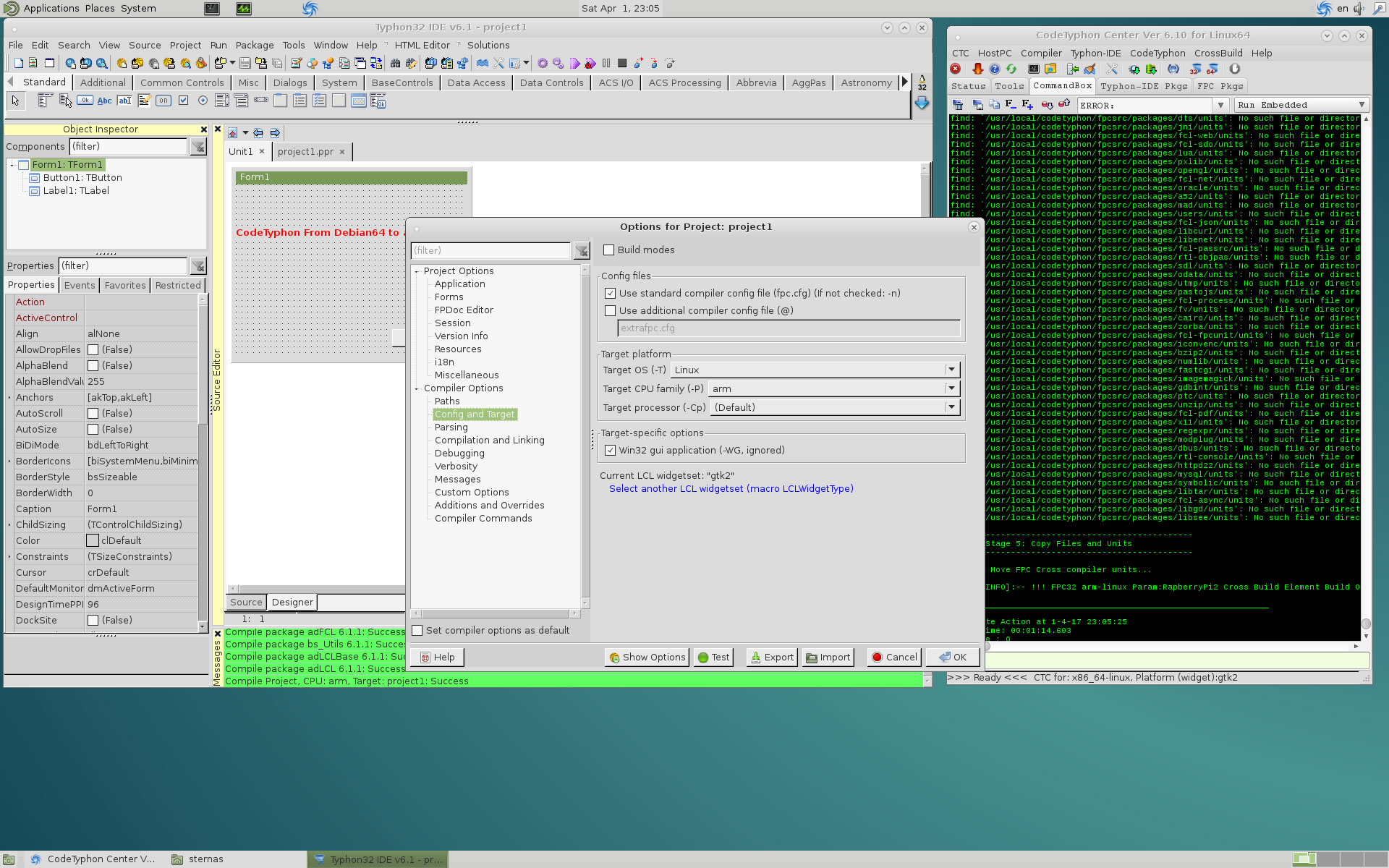

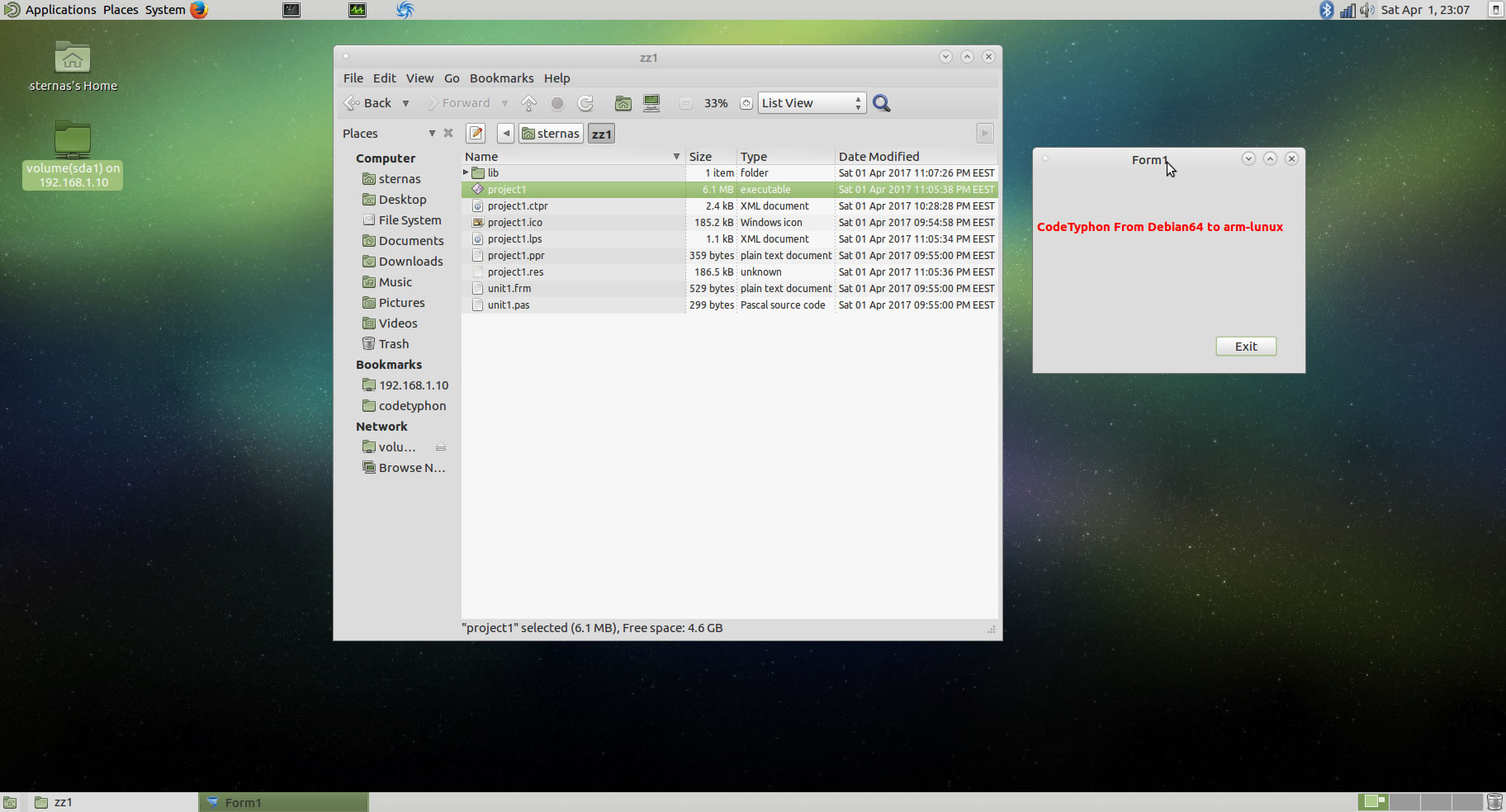

Typhon32 => arm-linux-Pi2 Works OK !!!

Download Test Project here






Test of above project on Real Pi3 B with arm Ubuntu 16.04 MATE




Now, Lab CodeTyphon 6.10 revision 006040 (No Released yet)
Support arm Pi3 as HostOS... :silly:
15 programmers for 1 week...


PilotLogic Core Programmer
Last edit: 4 years 8 months ago by Matis A..
The following user(s) said Thank You: Rain
